Operation
198
Pos: 30.18 /Überschrif ten/Überschrif ten 2/U-Z/V on Arbeitsstellung i nT ransportst ellung @ 2\ mod_12024662465 42_78.doc @ 5 9681 @ 2 @ 1
12.8 Switching from working position to transport position
Pos: 30.19 /BA/Sic herheit/Gefahre nhinweise/Ei nstellarbeiten Gef ahr mit Bedi eneinheit @ 0\ mod_1199869097 987_78.doc @ 3 6160 @ @ 1
Danger! - Unexpected movements of the machine
Effect: Danger to life, injuries or damage to the machine.
• Setting tasks must only be performed when the drive is switched off and the engine is at a
standstill!
• Bring the machine to a complete stop.
• Switch off the engine, remove the ignition key and turn off the electrical system on the
control box
• Secure the machine and tractor against rolling.
Pos: 30.20 /BA/Sic herheit/Gefahre nhinweise/Sch wader/Ausheb en der Kreisel Z apfwelle absch alten @ 2\mo d_1202717797986 _78.doc @ 601 42 @ @ 1
Caution!
Before swivelling the mowing unit up into transport position, turn off the PTO.
• Before lifting the rotors from the headland position, turn off PTO shaft and wait for rotors
to come to a standstill.
• Nobody should be in the swivel range of the rotors.
Pos: 30.21 /BA/Be dienung /Sch wader/Kreiselar me senken/he ben/Kreiselarm e anklappen / h eben SW 2000 @ 22\mod_123977 3812566_78. doc@ 232806 @ 2 @ 1

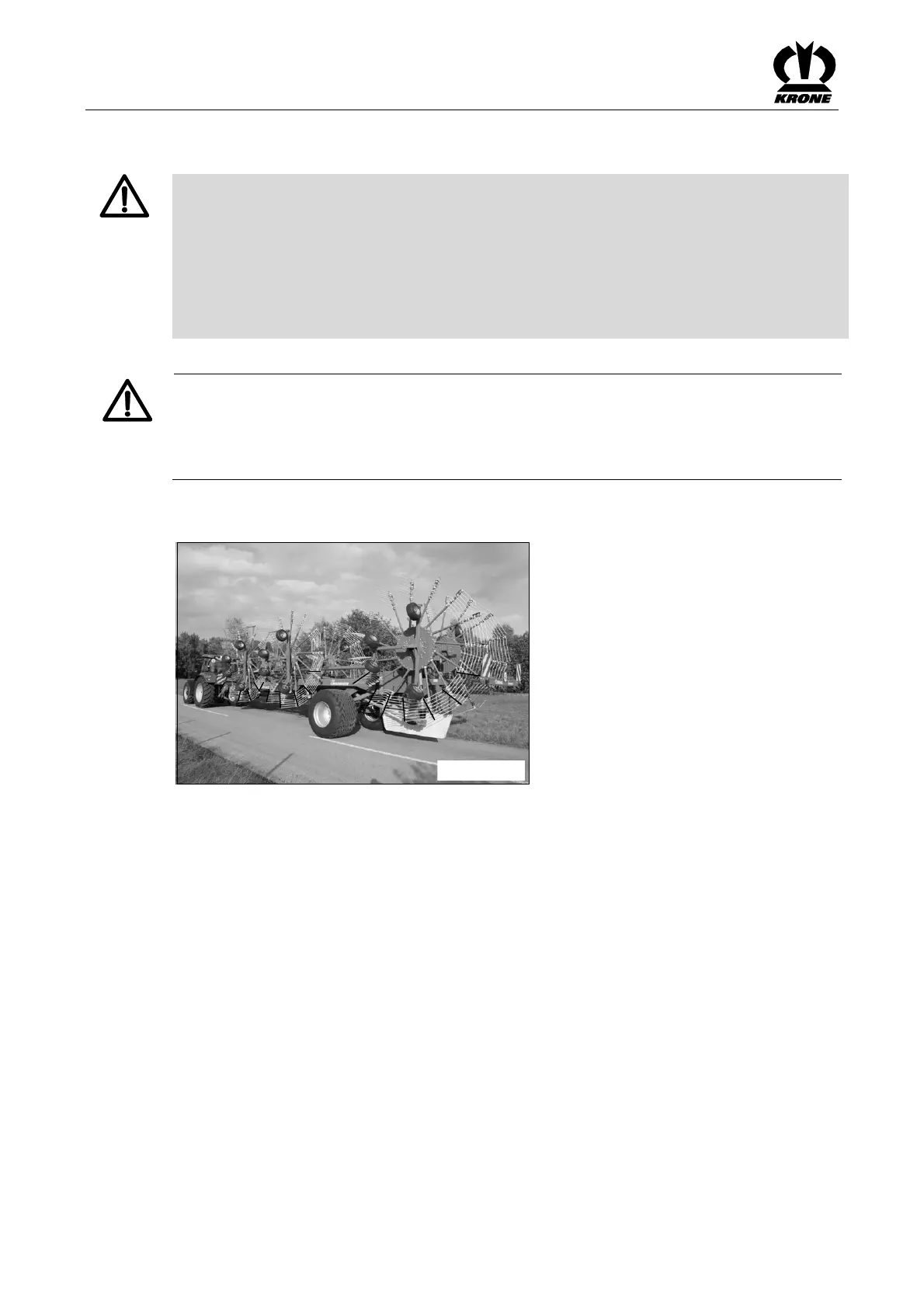

12.9 Raising the Rotor Arms to Transport Position
SW2000025
Fig. 140
• Fold up the lateral pivoting arms at a low speed and pivot the front supporting wheel
upwards (see entitled Comfort/Medium Control Unit "Fold up pivoting arms"/"Pivot front
supporting wheel upwards").
• Lift rotor (see chapter entitled Comfort/Medium Control Unit "Raising rotors in headland
position/Lifting all rotors in transport position").
Pos: 30.22 /BA/--- --Seitenumbruc h------ @ 0\mo d_119617531 1226_0.doc @ 41 65 @ @ 1
