5.2 Fitting the Protective Frames/Hoop Guards on the 6 Rotors
Before the machine can be used, all protective frames and hoop guards must be fitted on the 6
rotors.
The procedure for fitting the safety frames/hoop guards to the 3 rotors on the left side of the
machine is described below. The protective frames/hoop guards are fitted to the 3 rotors on the
right side of the machine in the same way.
I II III
b1
1
3
2
4
A B
C
5

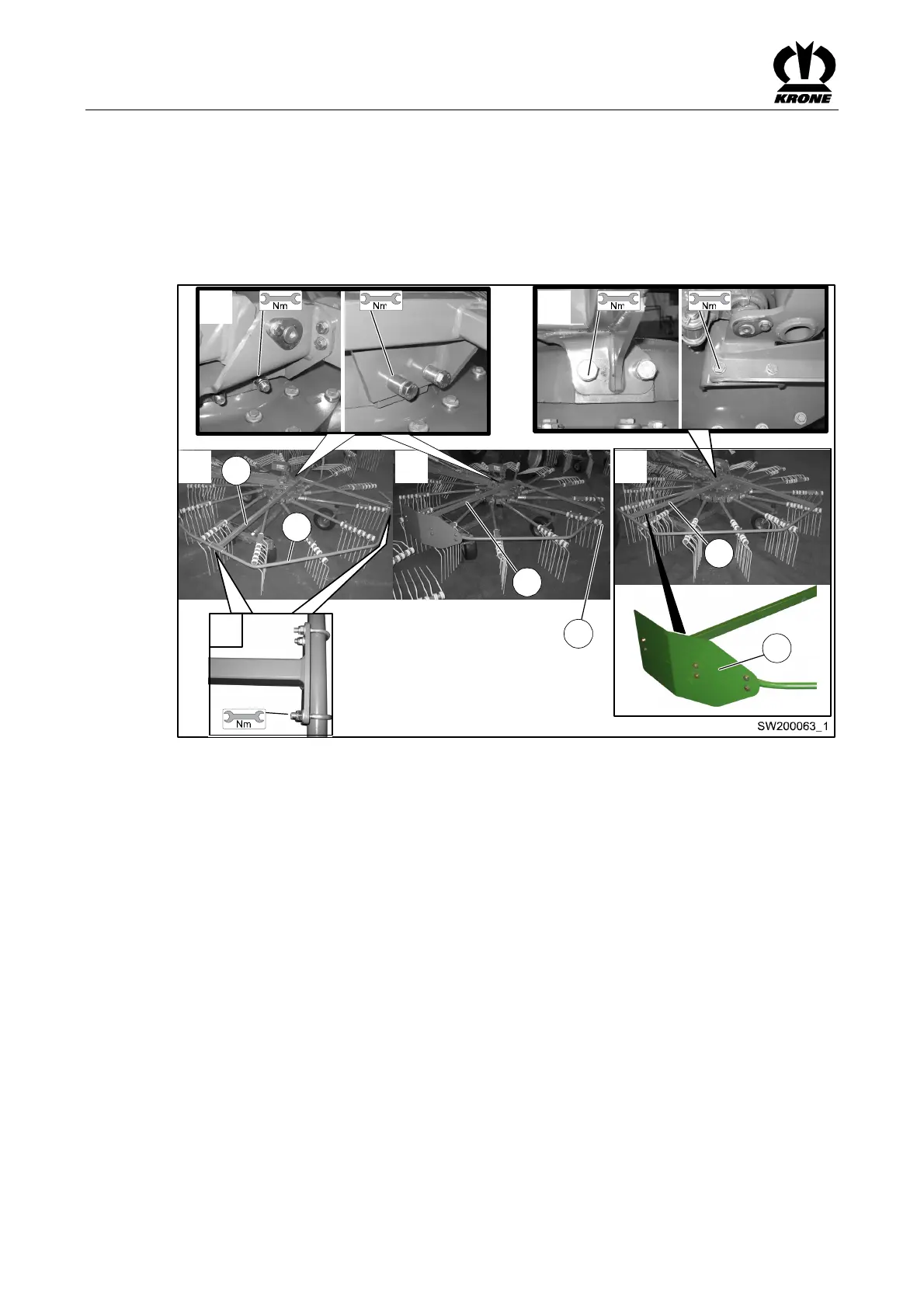

Fig. 5
I) Front left rotor II) Middle left rotor III) Rear left rotor
• Mount the protective frames (1) (3) on screw point (A) of the front and middle rotor
• Mount the hoop guard (2) on screw points (C) of the front rotor
• Mount the protective frame (4) on screw point (B) of the rear rotor
• Mount the baffle plate (5) on the protective frame (4) of the rear rotor
