KRONE ISOBUS-Terminal CCI 100
128
Pos: 22.1.37.1 /Ü berschriften/Üb erschriften 2/F-J/ Grundbild Kr eiselaushebung @ 56\mod_129 5354299046_ 78.doc @ 541986 @2 @ 1

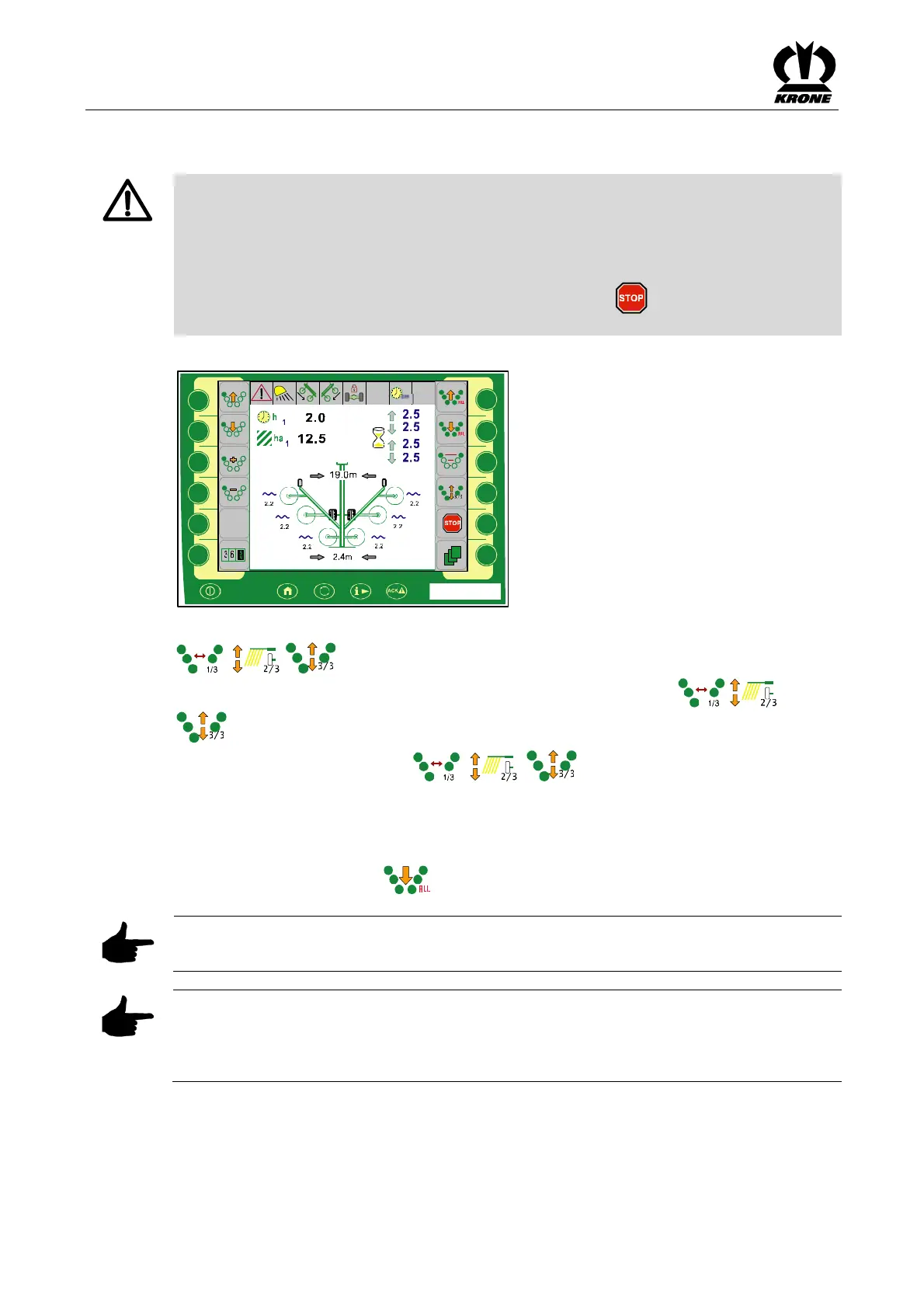

8.6 Basic Screen „Lifting The Rotors“
Pos: 22.1.37.2 /BA /Info-Center/CC- ISOBUS-T erminal/CCI-Swa dro/Swadro 14 00/Gefahr Schnellst op @ 56\mo d_129536287 3734_78.doc @ 5 42364 @ @ 1
DANGER! - Before swivelling the machine, ensure that nobody is within the swivel
range.
Effect: Danger to life or serious injuries.
• Instruct persons to leave the danger zone.
• If required, switch off the machine immediately.
• If there is an imminent danger, press the function key for to stop all functions which
are currently being performed.
Pos: 22.1.37.3 /BA /Info-Center/CC- ISOBUS-T erminal/CCI-Swa dro/Swadro 20 00/Grundbild 1 Kreiselaushebung/ Grundbild Kreis elaushebung Kreis el senken / heben Bild @ 8 8\mod_1321433 784638_78.d oc @ 753545 @ @ 1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11F11
F12
F1
CCS00055
Fig. 89
Pos: 22.1.37.4 /BA /Info-Center/CC- ISOBUS-T erminal/CCI-Swa dro/Swadro 20 00/Anzeigenbereic he Display/F1 Aufruf der Gru ndbilder @ 87\mo d_132127706 4622_78.doc @ 751820 @ @ 1
, Calling of "Width adjustment", "Working height" and "Lifting the rotors"
basic screens (the selection is displayed in the terminal via the graphics ( , and
)).
• Press the function keys for ( , , ) to call up the required basic screen
Pos: 22.1.37.5 /Ü berschriften/Üb erschriften 3/ A-E/Absenken der Kreisel von Tra nsport- in Vorge wendestellung @ 22\mod_124 0226929411_ 78.doc @ 23645 0 @ 3 @ 1
8.6.1 Lowering the Rotors from Transport to Headland Position
Pos: 22.1.37.6 /Ü berschriften/Üb erschriften 4/ A-E/Absenken all er Kreisel in die V orgewendest ellung @ 89\ mod_1322485047 179_78.doc @ 7 63383 @ 4 @ 1
8.6.1.1 Lowering All Rotors to Headland Position
Pos: 22.1.37.7 /BA /Info-Center/CC- ISOBUS-T erminal/CCI-Swa dro/Swadro 20 00/Grundbild 1 Kreiselaushebung/ Absenken aller Kreisel in die V orgewendestell ung SW 2000 @ 8 8\mod_132 1536080477_78 .doc @ 754444 @ @ 1
Activating the function key for lowers all the rotors to the headland position.
Note
Individual rotors cannot be lowered from the transport position to the headland position.
Note
The supporting wheels are first folded down into the working position. While the rotors are
lowered, the hydraulic cylinders are extended to the setting for swath width. Finally, a hydraulic
cylinder extends to the working width.
Pos: 22.1.37.8 /BA /-----Seitenu mbruch------ @0\m od_11961753 11226_0.doc @ 4 165 @ @ 1
