KRONE ISOBUS-Terminal CCI 100
116
Pos: 22.1.14 /B A/Info-Center/CC-I SOBUS-Termi nal/CCI-BiG Pack/Terminal ansc hließen(ohne I SO Schlepper) @ 43\mod_1274 882231640_7 8.doc @ 387925 @ 3 @ 1
8.2.2 Connecting the terminal (on tractors without ISOBUS system)
6
5
1
2
3
4
CC00015
7 12
5
8
9
10
11

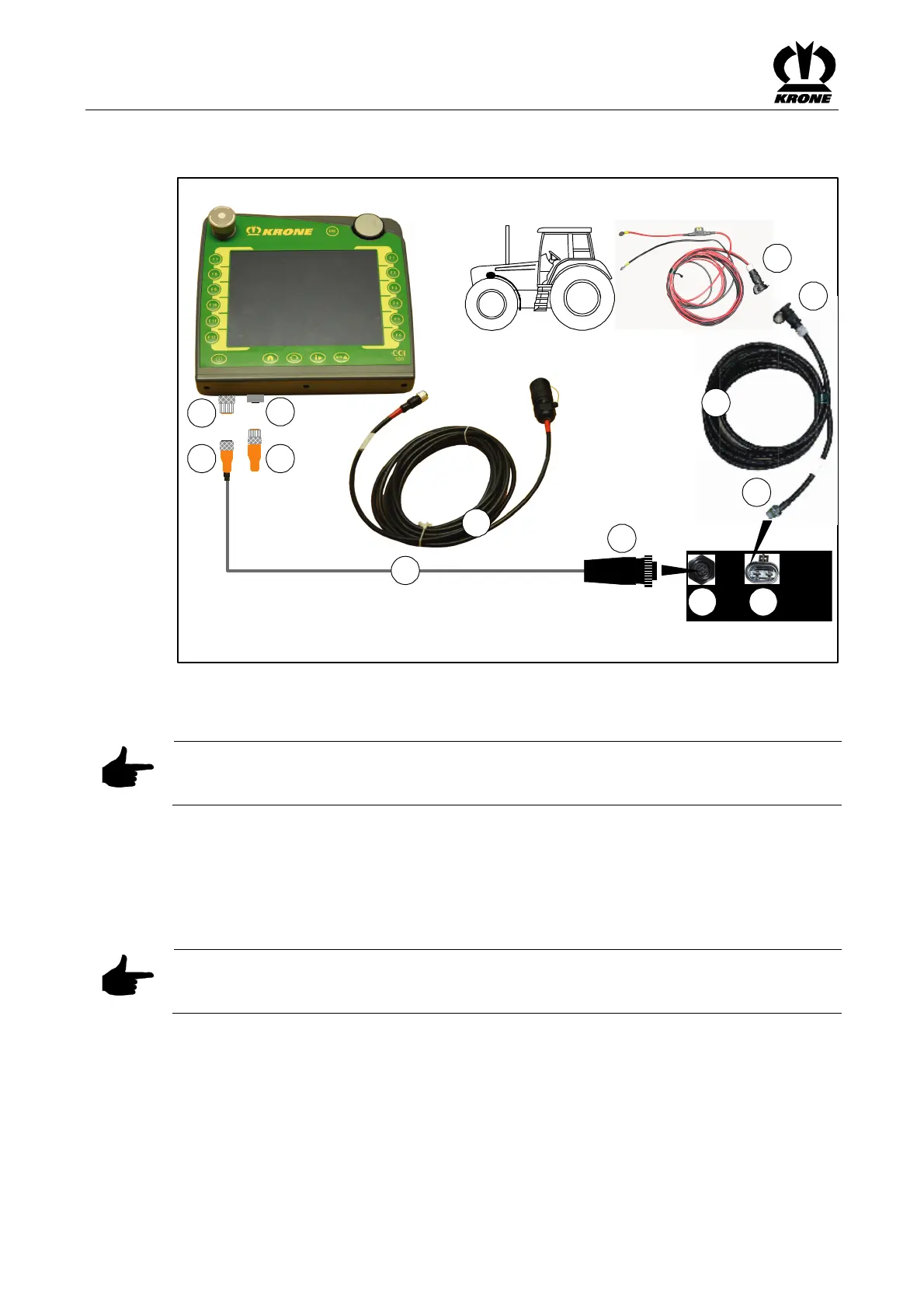

Fig. 76
Connection terminal to machine
Note
The connection of terminal to machine takes place via a provided cable set (5) (article no.
20 081 224 0).
• Connect plug (2) of cable set (5) with socket (1) (CAN1-IN) of the terminal
• Connect plug (6) (7-pole) of cable set (5) with socket (7) (7-pole) of the machine
• Connect connector plug (4) (article no. 00 302 300 0 included in scope of delivery) with
socket (3) (CAN1-OUT) of the terminal
Connection tractor to machine
Note
The connection of tractor to machine takes place via a provided power cable (8) (article no.
20 080 601 0).
• Connect plug (9) of power cable (8) with continuous current socket (10) of the tractor
• Connect plug (11) (2-pole) of power cable (8) with socket (12) (2-pole) of the machine
