KRONE operation terminal Gamma

Pos: 16.24.65 / BA/Info-Center/Sc hwader/Bedie neinheit - Komf ort/SW 2000/Hau ptmenüs/Haup tmenü 5 Info/H auptmenü 5 Info @ 23\mod_12 40318768819_7 8.doc @ 238413 @ 2 @ 1

6.15 Main Menu 5 – Information

5-1

SW:

00002009491

1 : 150200094-00

SW2000047

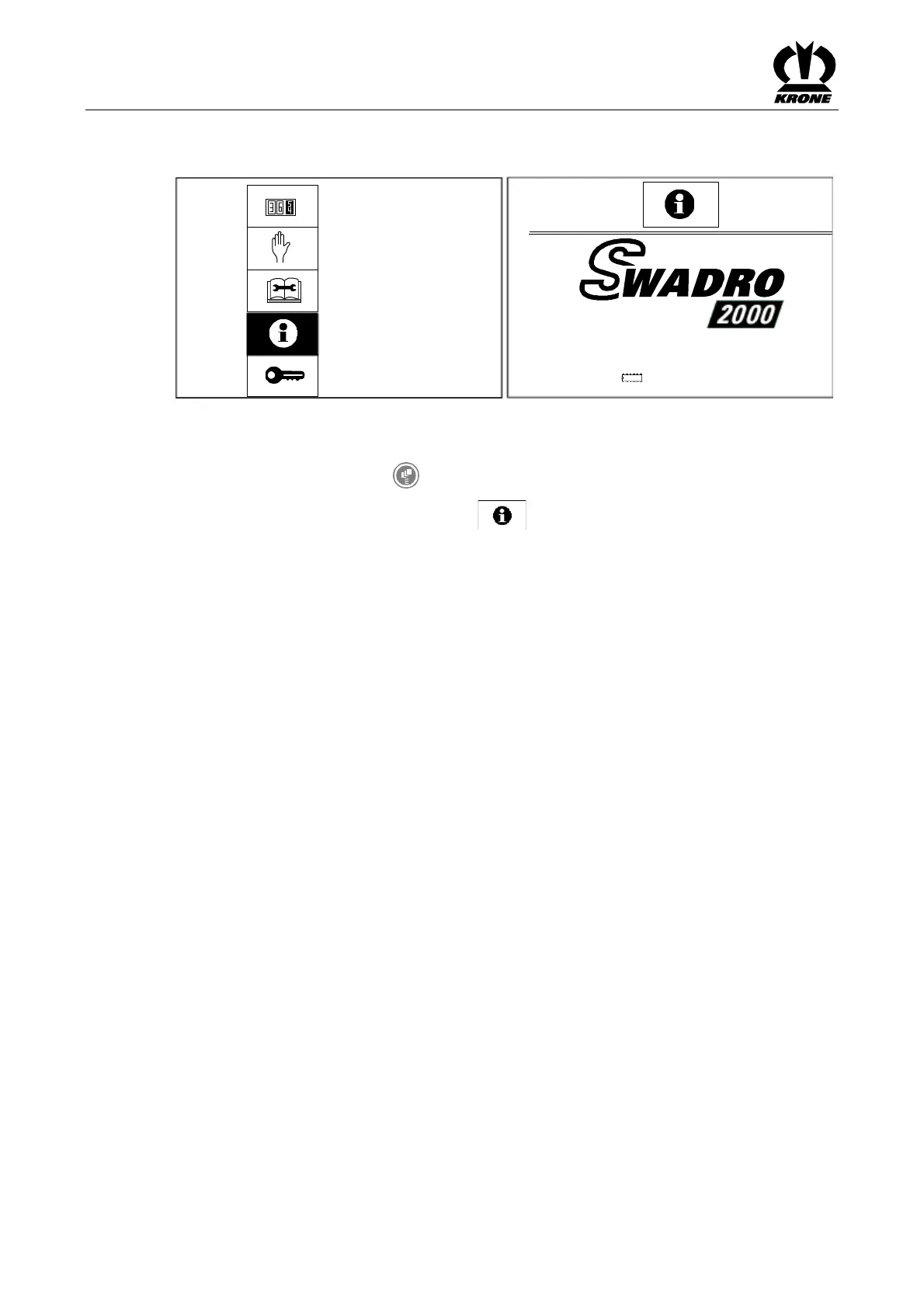

Fig. 59

Calling the main menu

• Call the menu level with the key.

• You can select main menu 5 with the rotary potentiometer. The icon is displayed

inversely.

• Press the rotary potentiometer.

The display shows menu 5 "Information".

Page 5-1:

SW = Complete software version of the machine
