6.11.1.1 Menu 1-3 "Overlap"
1 - 3
SW2000084
P
50 cm
DEF

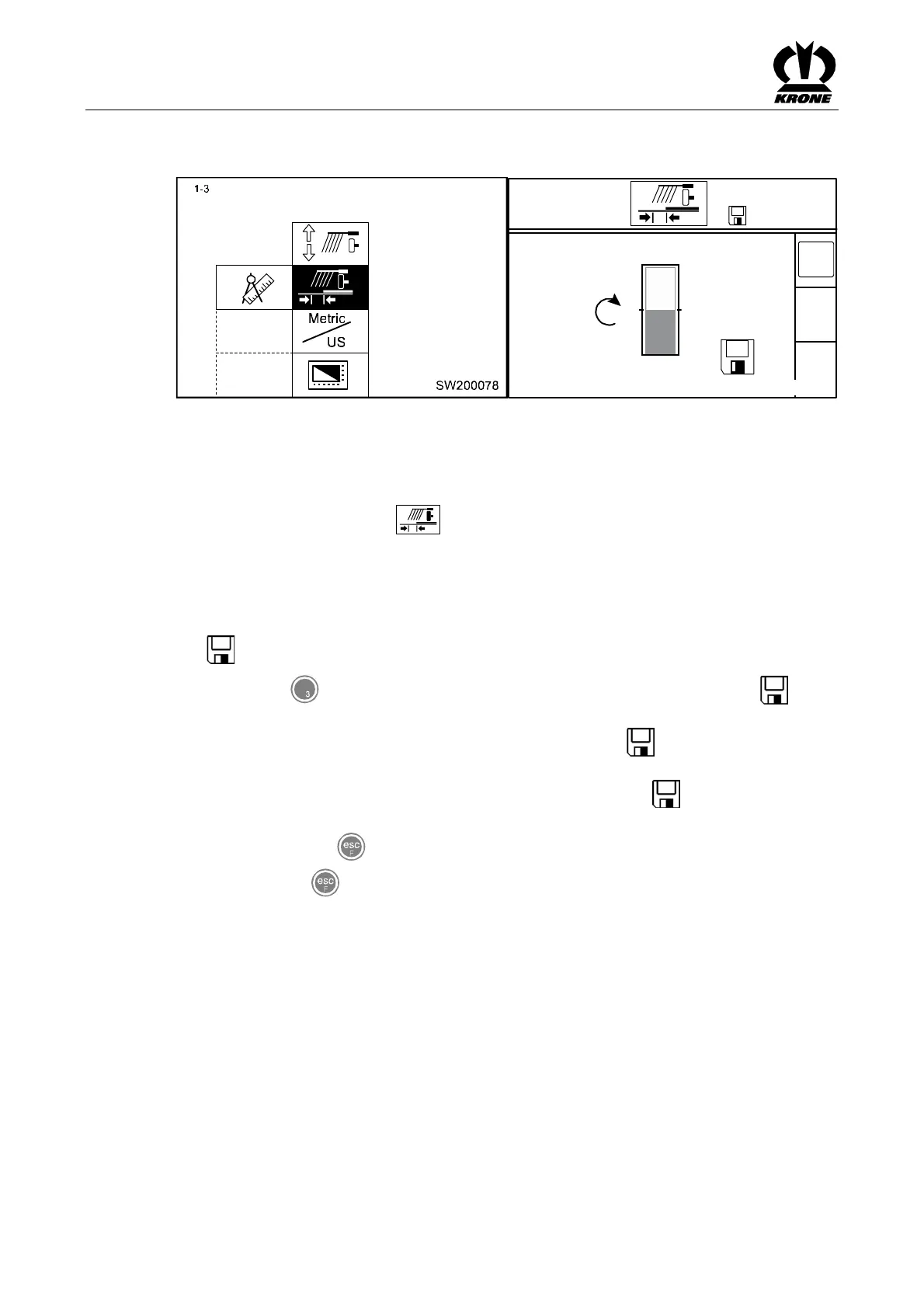

Fig. 39
In this menu, the overlap can be used to set the accuracy of the counter for total surface.
Calling the menu
Main menu 1 "Settings" appears.
• You can select menu 1-3 with the rotary potentiometer. The icon is shown in
reverse colours.
• Press the rotary potentiometer.
The display shows menu 1-3 "Overlap".
The bar display and value (A) indicate the preselected overlap.
The icon in the upper line indicates that the displayed value has been saved.
• Press the key for softkey DEF: The factory setting value is accepted. The icon
in the upper line may disappear.
• Set the required overlap with the rotary potentiometer. The icon in the upper line
goes out.
• Press the rotary potentiometer. The set value is saved and the icon appears in the
upper line.
• You can use the key to close the menu that is currently displayed.
• Pressing the key several times brings up the basic screen.
