Commissioning
33
Pos: 14.17 /Überschrif ten/Überschrif ten 2/P-T/Sp annungsversorgu ng @ 28\mo d_125057810 7003_78.doc @ 275490 @ 2 @ 1

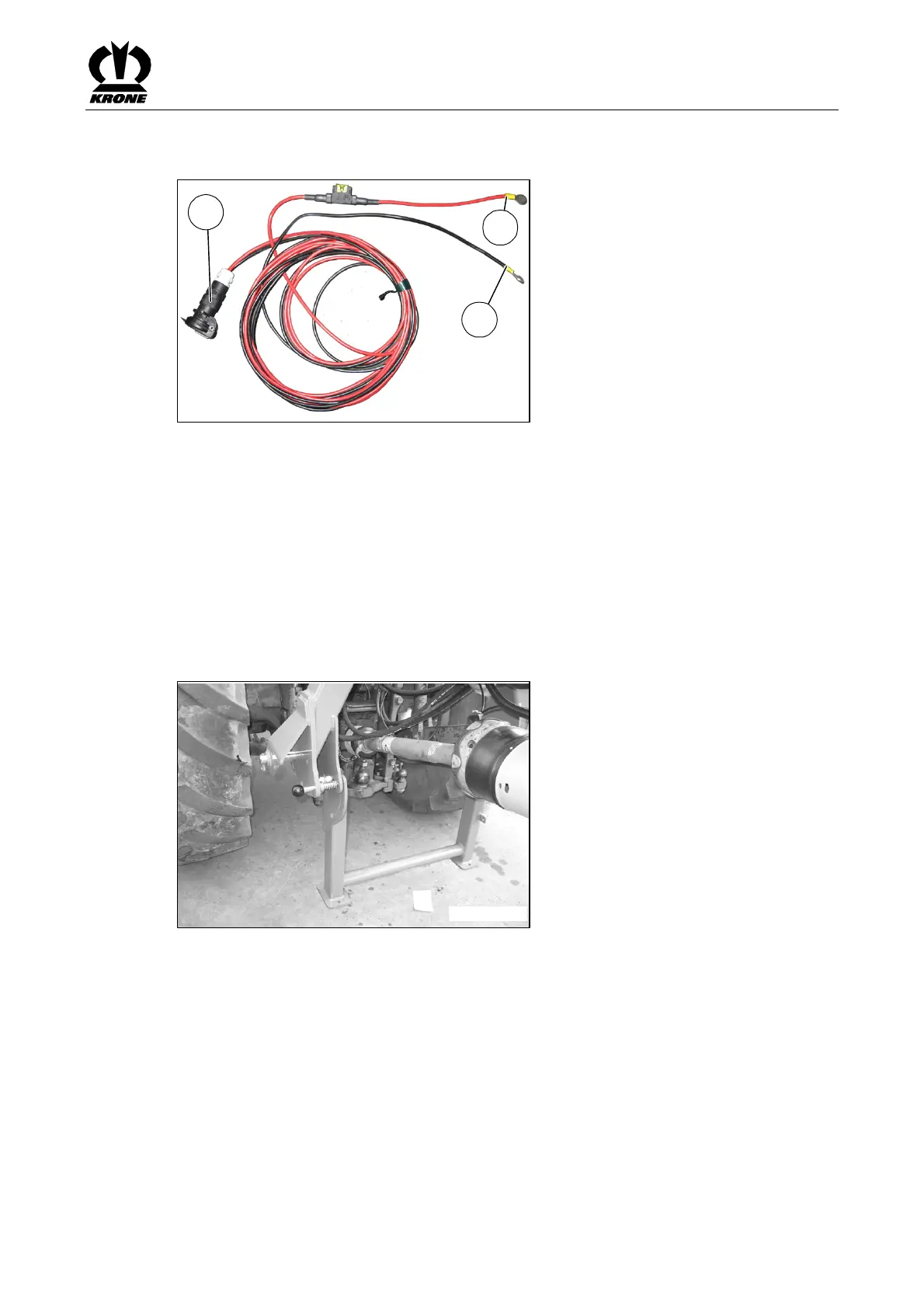

5.5 Electrical power supply
Pos: 14.18 /BA/Ers tinbetriebna hme/Spannungs versorgung/Dau erstromsteckdos e Bild @ 36\mo d_126045493 4575_78.doc @ 336632 @ @ 1
SW2000058
1
2
3
Fig. 8
Pos: 14.19 /BA/Ers tinbetriebna hme/Spannungs versorgung/Stec kdose an die 12 V Batterie des Sc hleppers ansc hließen @ 36\m od_126045 0375075_78.doc @ 336557 @ @ 1
The machine requires a voltage source for the power supplyof the on-board computer (control
unit). A socket (12V DIN 9680) for installation on the tractor is part of the scope of supply.
The socket has to be attached in order to provide the machine with the required electricity for
start-up.
Connect the socket included with delivery (1) directly to the 12V battery of the tractor
Connect the connector terminal (2) of the red cable (+) directly to the “+” terminal of the
tractor battery.
Connect the connector terminal (3) of the black cable (-) directly to the “-” terminal of the
tractor battery.
Pos: 14.20 /Überschrif ten/Überschrif ten 2/A-E/A nbau an den Tra ktor @ 0\mod _1199717845194 _78.doc @ 34 039 @ 2 @ 1
5.6 Mounting onto the Tractor
Pos: 14.21 /BA/I nbetriebnahme/ Schwader/Anba u an den Traktor/ Anbau an d enT raktor Schw ader 2000 @ 22\ mod_12396937 07510_78.doc @ 232225 @ @ 1
SW2000001
Fig. 9
Hitch machine with the steerable pinions onto the tractor.
Fix lower suspension arms
Place the machine onto the parking supports.
