10.8 Parking Brake
Pos: 26.38.2 /B A/Inbetriebnahm e/Feststellbrems e/Feststellbrems e Bild SW 200 0 @ 22\mod_1 23969742816 6_78.doc @ 2 32356 @ @ 1
1
SW2000003
Fig. 133

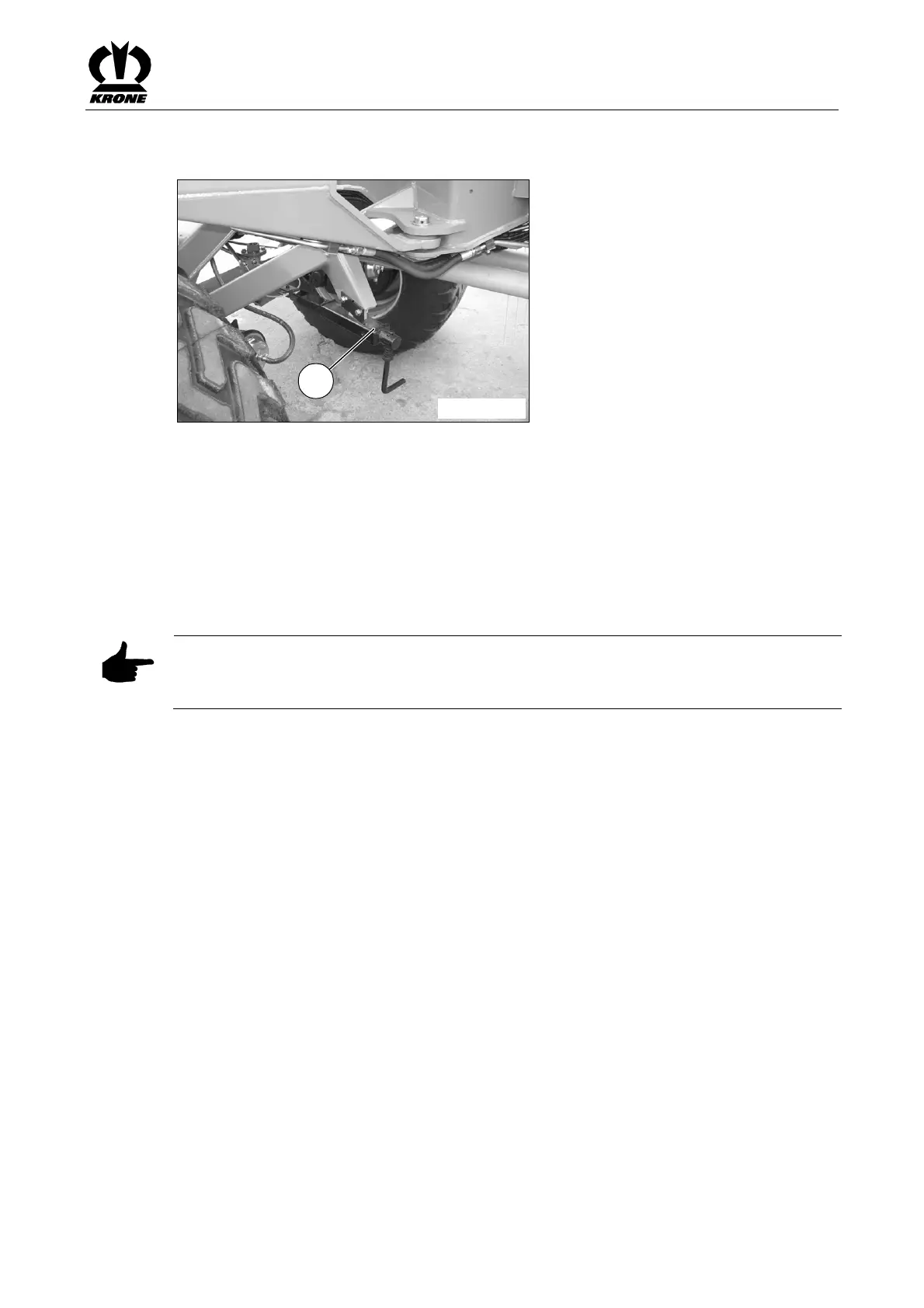

The parking brake (1) is situated to the rear on the left side of the machine on the main running
gear.
Pos: 26.38.3 /B A/Inbetriebnahm e/Feststellbrems e/Feststellbrems e @ 6\mod_12 14898707168 _78.doc @ 9675 6 @ @ 1
The parking brake is used to secure the machine from rolling away accidentally, especially
when the machine is disconnected from the tractor.
Set the parking brake:
• Turn the crank clockwise until the resistance grows noticeably greater.
Release the parking brake:
• Turn the crank anti-clockwise until the brake cable is slightly slack.
Pos: 26.38.4 /B A/Inbetriebnahm e/Feststellbrems e/Hinweis Festst ellbremse/Unterl egkeile @ 6\m od_12148994 29153_78.doc @ 96796 @ @ 1
Note
To prevent the machine from rolling away, use the wheel chocks in addition to the parking
brake.
