5.7 PTO shaft
Pos: 14.23.2 /Üb erschriften/Üb erschriften 3/K-O/ Längenanpass ung @ 1\mod _1201687632810 _78.doc @ 53 589 @ 3 @ 1
5.7.1 Length adjustment
Pos: 14.23.3 /B A/Erstinbetriebna hme/Gelen kwelle/Schwader/L ängenanpassung Bild Schwader @ 2\mod_1202 364902991_7 8.doc @ 58848 @ @ 1
3
2
SW9070007
1

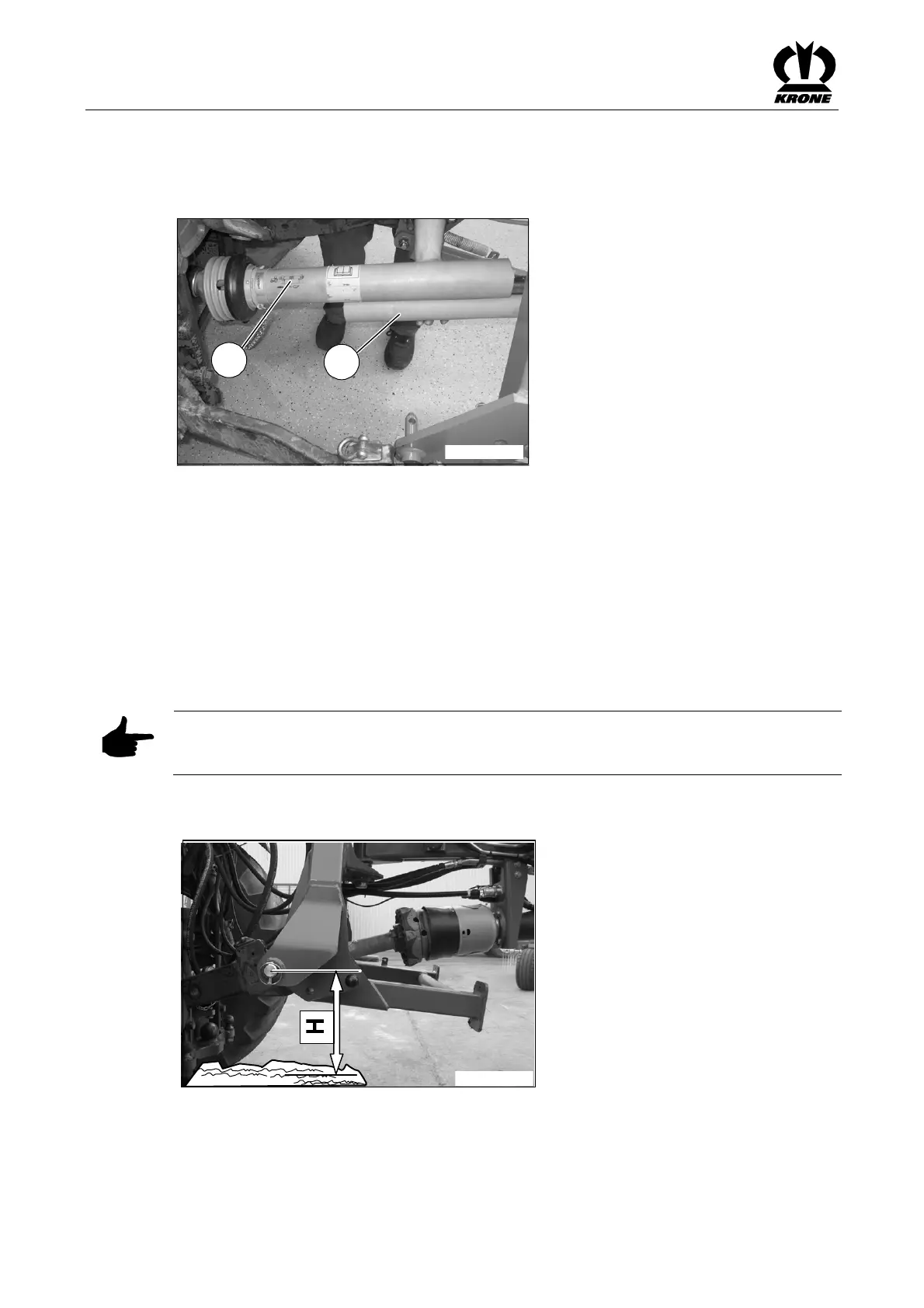

Fig. 10
Pos: 14.23.4 /B A/Erstinbetriebna hme/Gelen kwelle/Schwader/L ängenanpassung _mit Weitwinkel T ext_Schwa der @ 2\mod_ 1202365111491_7 8.doc @ 58868 @ @ 1
The PTO shaft (1) length must be adjusted.
• Disassemble the PTO shaft.
• Install each half (1) and (2) on the tractor and machine side respectively.
(The wide-angle coupling must be installed onto the machine. Observe the marking on
the PTO shaft.)
• Position rotary rake in the shortest PTO shaft position setting. (Completely the three-
point frame inwards.)
• For additional operating instructions refer to the operating instructions of the PTO shaft
manufacturer.
Note
Check the swivel range and clearance of the PTO shaft! Damage can be caused if the tractor
or the machine touch the PTO shaft. (e.g. hitching device, hitching frame)
Pos: 14.24 /BA/Ers tinbetriebna hme/Schwader/Hö he der Traktoru nterlenker 75 cm @ 22\mod_1 23969548737 0_78.doc @ 232 276 @ 2 @ 1
5.8 Height of tractor lower suspension arms
SW2000002
Fig. 11:
Perform default setting on a level surface.
The tractor lower suspension arms must be set at a height which ensures that the steerable
pinions are at a height of H approx. 75 cm from the ground.
