Operation
193
Pos: 30.1 /Übersc hriften/Übersc hriften 1/A-E/Be dienung @ 0\ mod_119978950 5403_78.doc @ 34825 @ 1 @ 1
12 Operation
Pos: 30.2 /BA/Bedi enung /Schw ader/Maschine ist f ür Vorwärtsf ahrt konzipiert. @ 66\mod_130 2175087311_78 .doc @ 615098 @ @ 1
WARNING! – Do not drive in reverse when using the machine for work.
Effect: Damage to the machine.
The machine is designed to travel forwards. Never reverse while the machine is in operation
and in working position. Lift the rotor first.
Pos: 30.3.1 /Übersc hriften/Übersc hriften 2/U-Z/Üb erlastsicher ung @ 2\mod_12 02465560433 _78.doc @ 5956 7 @ 2 @ 1
12.1 Overload protection
Pos: 30.3.2 /BA/ Bedienung /Sch wader/Überlastsic herung/Überlas tsicherung Bild Swadro 2000 @ 22\mod_1239 713846573_78. doc @ 23264 7@ @ 1
SW2000009
2
2
2

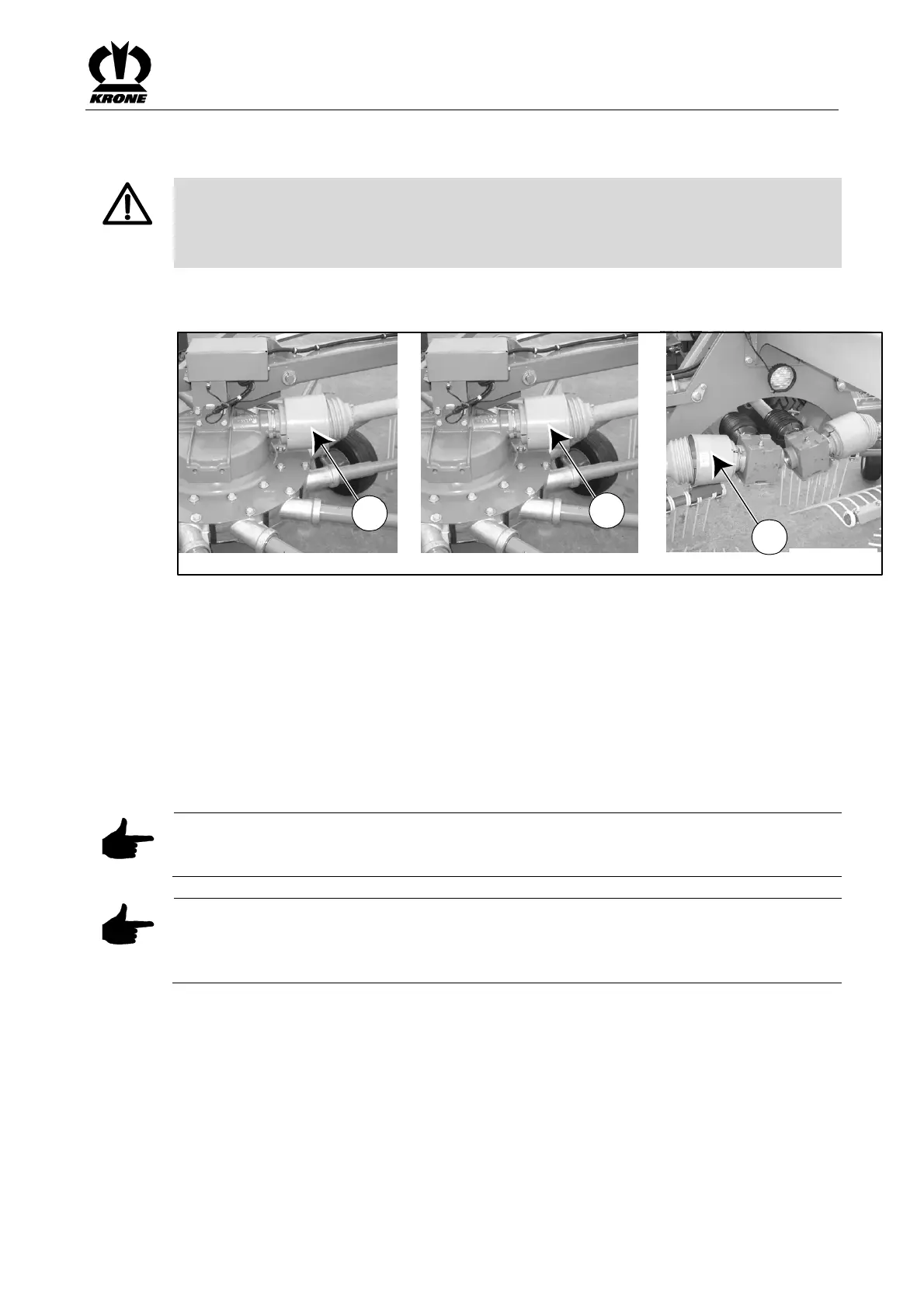

Fig. 135
Pos: 30.3.3 /BA/ Bedienung /Sch wader/Überlastsic herung/Überlas tsicherung Anbringungsort T ext SW 2000 @ 2 2\mod_12397 14578026_78.d oc @ 232699 @ @ 1
The overload protections (2) are located (on the right and left sides of the machine) on the:
Front rotor: On the rotor gear
Centre rotor: On the rotor gear
Rear rotor: On the transfer gearbox.
Pos: 30.3.4 /BA/ Bedienung /Sch wader/Überlastsic herung/Überlas tsicherung T ext SW 2000 @ 2 2\mod_123996 2125573_78.doc @ 235301 @ @ 1
The cardan shaft is equipped with an overload coupling. Overload couplings protect the tractor
and device against damage. The setting of the overload coupling must not be changed.
Therefore the warranty will be voided if the set torque on the overload coupling is manipulated
or changed. In the event of an overload, torque is restricted.
Pos: 30.3.5 /BA/ Bedienung /Sch wader/Überlastsic herung/Hin weisÜ berlastsicher ung nicht ver ändern @ 2\mod _1202465626 026_78.doc @ 5 9586 @ @ 1
Note
The overload protection must not be changed. The guarantee becomes invalid if an overload
protection is used other the protection provided!
Pos: 30.3.6 /BA/ Inbetriebnahme/E asyCut/Hin weisR eibkupplung @ 11\mod_122 3358975938_ 78.doc @ 14559 3 @ @ 1
Note - Friction Clutch
Effect: Conserve functionality and increased service life
• The friction clutch (2) must be vented prior to commissioning and once a year prior to
harvesting. (See section Before new season "Friction clutch")
