Krone Swadro 2000 User Manual

Maintenance - hydraulic system
216
Pos: 40.33.5.1 /Ü berschriften/Üb erschriften 2/ K-O/Load-Sensing- Anschluss @ 1\ mod_120124 1225401_78.doc @ 51955 @ 2 @ 1
15.1 Load-sensing connection
Pos: 40.33.5.2 /BA /Wartung/Load-S ensing/SW 2000/Bild Load-S ensing Anschluss Swadro 20 00@ 38\mod_12 67437073177_7 8.doc @ 35532 3@ @ 1
Y24Y2 Y1 Y3
SW2000065
1
2
LS
Y25
Y5 Y4 Y7Y6
Y26
Y11Y10
Y9 Y8
II
I

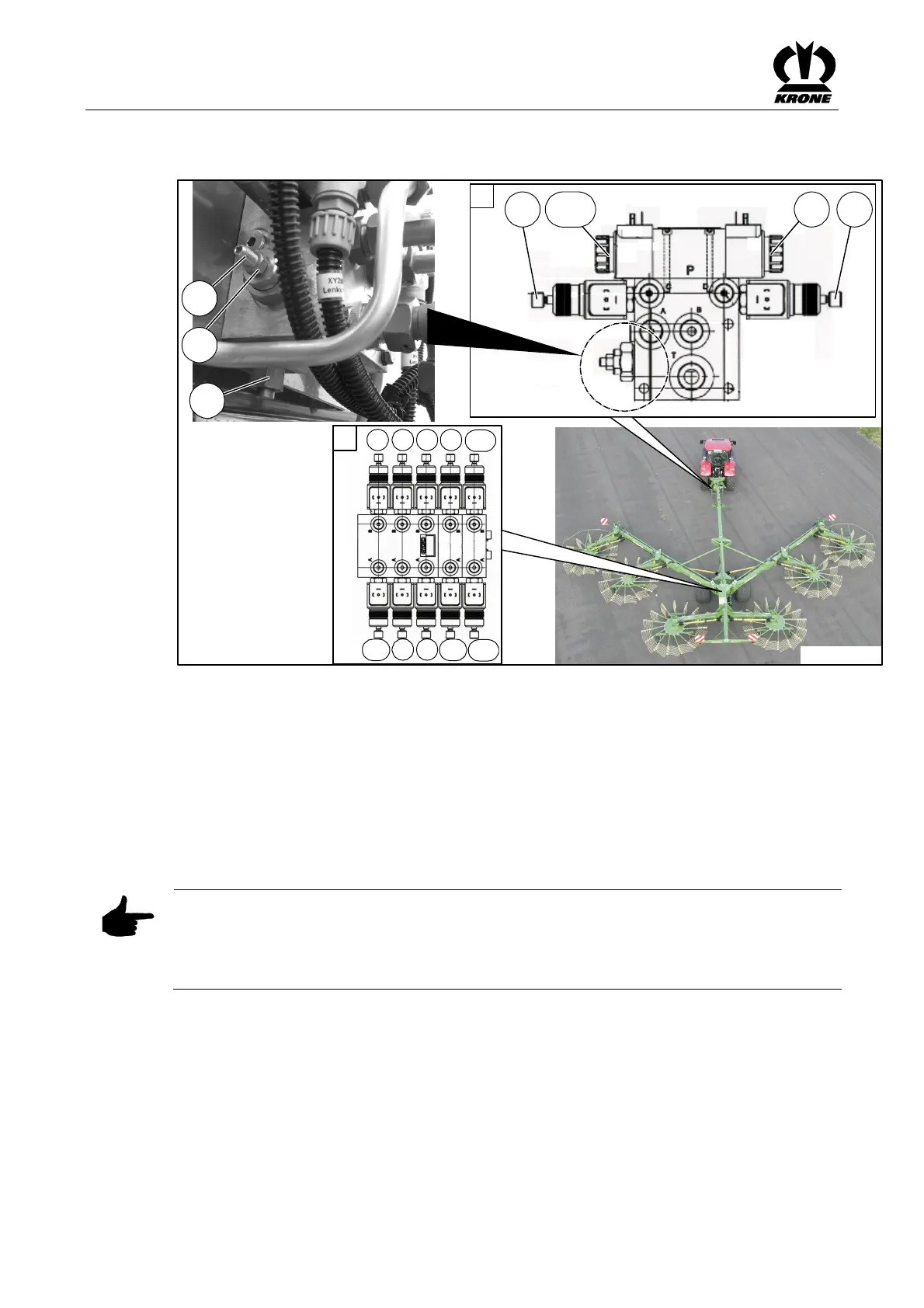

Fig. 156
Pos: 40.33.5.3 /BA /Wartung/Load-S ensing/SW 1400/Load-Sensi ng-Anschluss S W 1400/200 0@ 6\mod_1214 815420152_78.doc @ 95502 @ @ 1
The Comfort hydraulics is load-sensing capable.
The oil supply comes through the Power-Beyond system of the tractor hydraulics for use of the
load-sensing system. (For additional information, please refer to the tractor manufacturer's
operating instructions)
The sensing line must be connected between the message connection (LS) on the control block
of the machine and the message connection of the tractor.
The sensing line can be ordered from the spare-parts service under art. no. 267 040.
Note
With closed (constant pressure or load sensing) hydraulic system and connected load-sensing
message line:
Before coupling, screw in the system screw (1) on the hydraulic block fully and secure with
counter nut (2).
Pos: 40.33.5.4 /BA /-----Seitenu mbruch------ @0\m od_11961753 11226_0.doc @ 4 165 @ @ 1
