Possible digital actuators (depending on how the machine is equipped)
Pos: 22.5.62 /BA/Info-Center/CC-ISOBUS-Terminal/CCI-Swadro/Swadro 2000/Hauptmenüs/Hauptmenü 4
Service/Auflistung aller digitalen Aktoren @ 89\mod_1322116746402_78.doc @ 760269 @ @ 1
Pos:
22.5.
63
/BA/I
nfo-
Cent
er/C
C-
ISO
BUS
-
Ter
mina
l/CCI
-
Swa
dro/
Swa
dro
2000
/Hau
ptme
nüs/
Hau
ptme
nü 4
Servi
ce/A
bkür
zung
en
HL/V
L/ML
/HL/
VR/
MR
@
89\m
od_1
3225
6482
4754
_78.
doc
@
7640
80
@
@ 1
RL= Rear left FL = Front left ML= Middle left
RR= Rear right FR = Front right MR= Middle right
Pos: 22.5.65 /B A/Info-Center/Se nsoren/Statusa nzeigen digitale Aktoren Versio n 1( 1,2,3,4,5) @ 24\mod_124083 5189496_78.doc @ 241140 @ @ 1

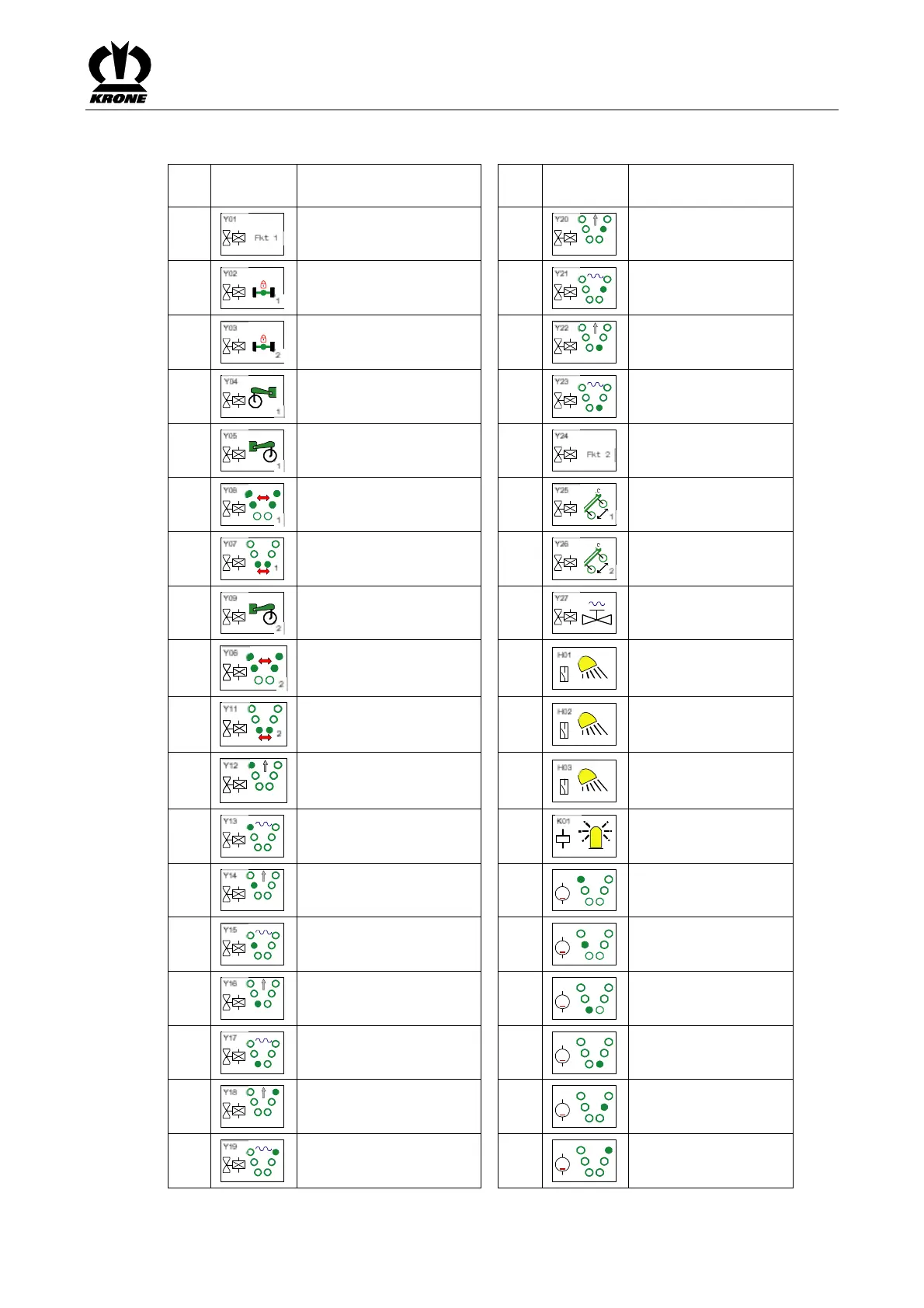

No. Sensor
symbol
Description No. Sensor
symbol
Description
Y01 Function valve 1 Y20 Raise MR rotor arm
Y02 Steering 1 Y21
MR rotor arm in float
position
Y03 Steering 2 Y22 Raise RR rotor arm
Y04 Left guide wheel Y23
RR rotor arm in float
position
Y05 Right guide wheel 1 Y24 Function valve 2
Y06 Working width 1 Y25 Parallel adjustment 1
Y07 Swath width 1 Y26 Parallel adjustment 2
Y09 Right guide wheel 2 Y27 Return valve
Y10 Working width 2 H1 Left working floodlights
Y11 Swath width 2 H2
Right working
floodlights
Y12 Raise front left rotor arm H3
Middle working
floodlights
Y13
FL rotor arm in float
position
K1 Relay for all-round light
Y14 Raise ML rotor arm M01
M
M01
Front left (FL) motor
Y15 ML rotor arm float position M02
M
M02
Middle left (ML) motor
Y16 Raise RL rotor arm M03
M
M03
Rear left (RL) motor
Y17 RL rotor arm float position M04
M
M04
Rear right (RR) motor
Y18 Raise FR rotor arm M05
M
M05
Middle right (MR) motor
Y19 FR rotor arm float position M06
M
M06
Front right (FR) motor
