Krone Swadro 2000 User Manual

KRONE operation terminal Gamma
88
RL= Rear left FL =Front left ML= Middle left
RR= Rear right FR = Front right MR= Middle right
Pos: 16.24.62 / BA/-----Seitenu mbruch------ @ 0\ mod_11961753 11226_0.doc @ 4165 @ @ 1

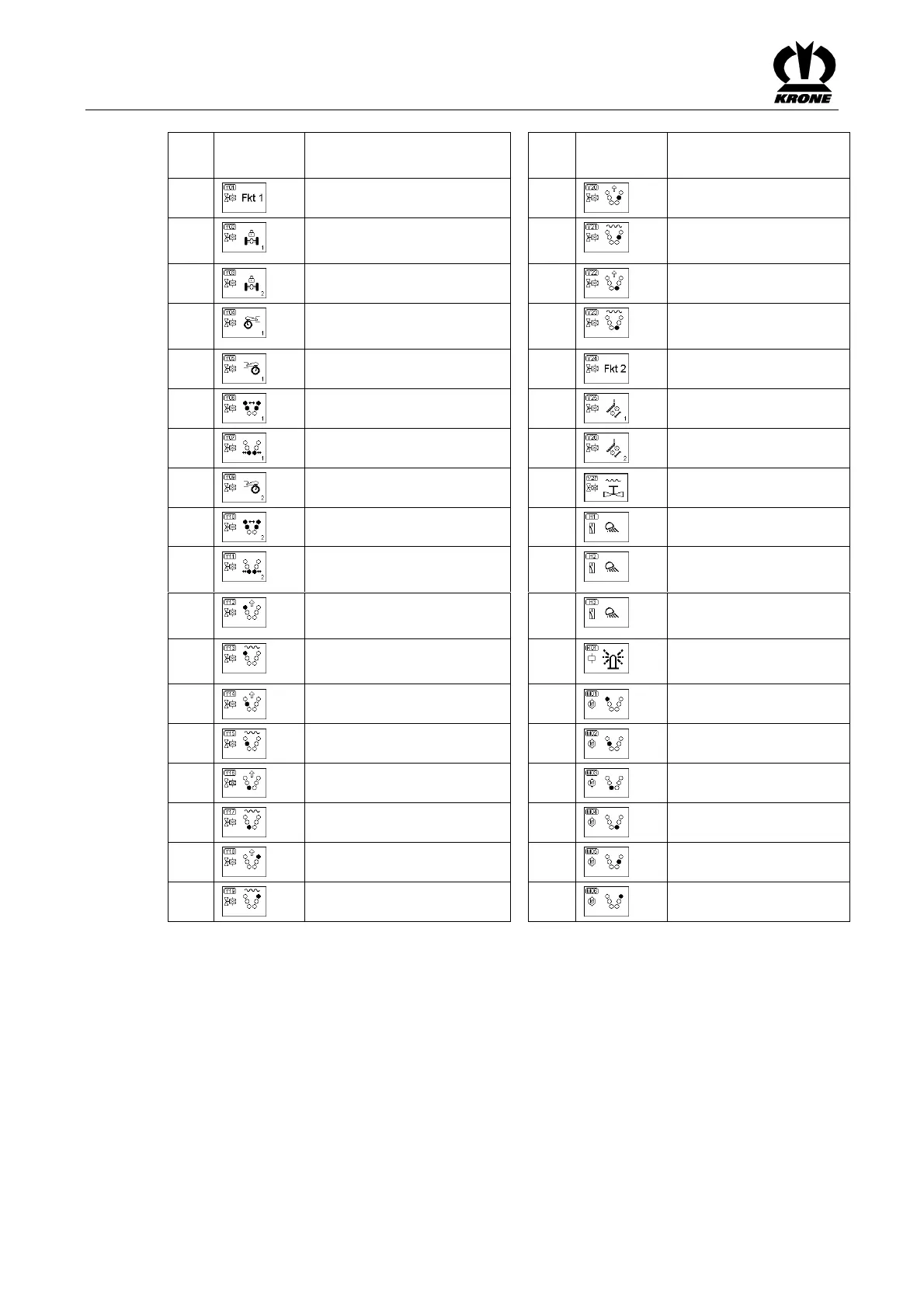

No. Sensor
icon
Description No. Sensor
icon
Description
Y01 Function valve 1 Y20 Raise MR rotor arm
Y02 Steering 1 Y21 MR rotor arm in float
position
Y03 Steering 2 Y22 Raise RR rotor arm
Y04 Left guide wheel Y23 RR rotor arm in float
position
Y05 Right guide wheel 1 Y24 Function valve 2
Y06 Working width 1 Y25 Parallel adjustment 1
Y07 Swath width 1 Y26 Parallel adjustment 2
Y09 Right guide wheel 2 Y27 Return valve
Y10 Working width 2 H1 Left working floodlights
Y11 Swath width 2 H2 Right working
floodlights
Y12 Raise front left rotor arm H3 Middle working
floodlight
Y13 FL rotor arm in float
position
K1 Relay for all-round light
Y14 Raise ML rotor arm M01 Front left (FL) motor
Y15 ML rotor arm float position M02 Middle left (ML) motor
Y16 Raise RL rotor arm M03 Rear left (RL) motor
Y17 RL rotor arm float position M04 Rear right (RR) motor
Y18 Raise FR rotor arm M05 Middle right (MR) motor
Y19 FR rotor arm float position M06 Front right (FR) motor
