CertusPro-NX SerDes/PCS Usage Guide

Preliminary Technical Note

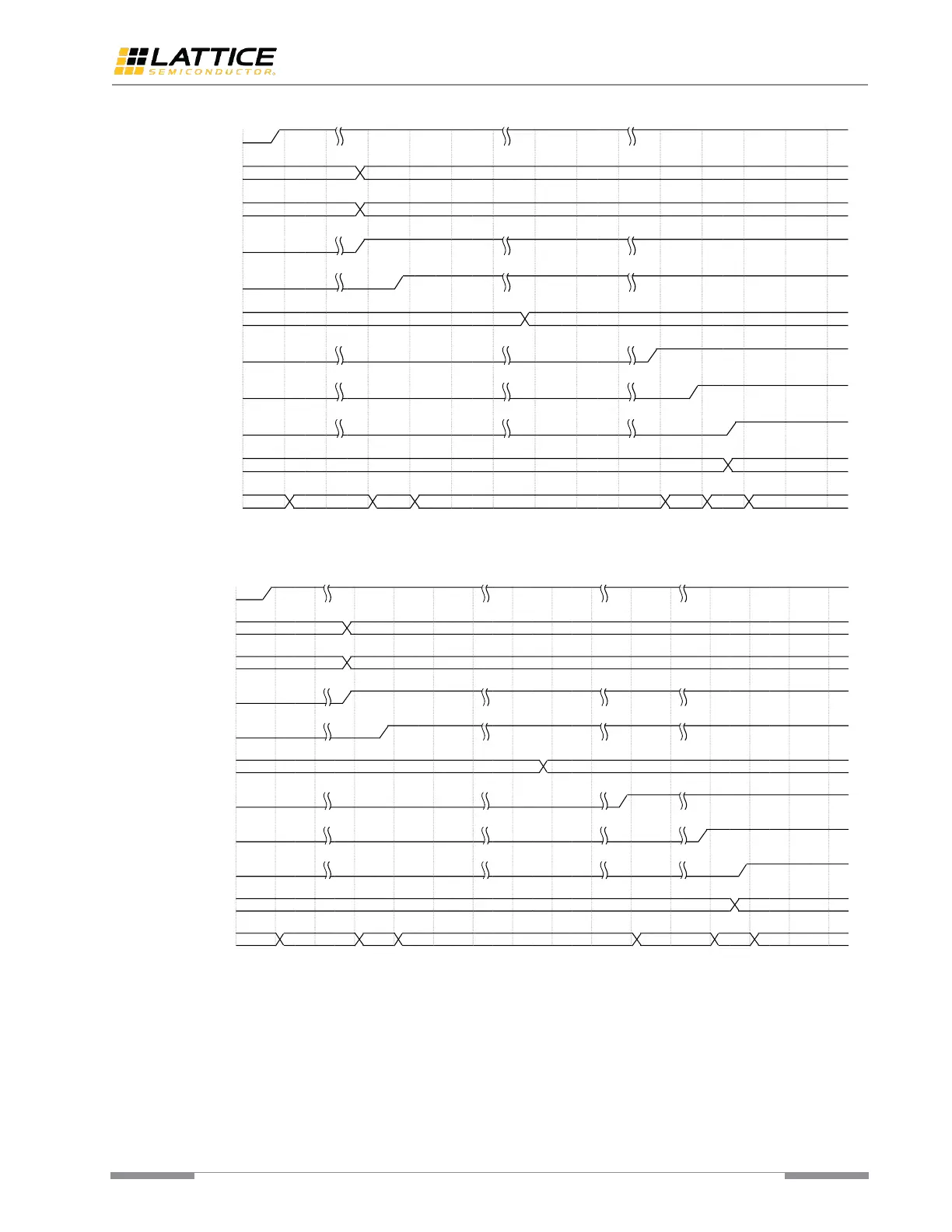

Figure 7.18. MPCS Mode Reset Sequence (Tx Path)

Figure 7.19. MPCS Mode Reset Sequence (Rx Path)

7.7.2.2. PMA Only Mode

EPCS mode reset sequence timing diagram is similar to that of the MPCS mode, but several signal names are different.

Refer to Figure 7.20 and Figure 7.21 for detailed timing diagrams.

Valid Clock

A B

C D E F

Valid Data

Valid Clock

Power Up

lmmi_clk_i

mpcs_clkin_i

lmmi_resetn_i

mpcs_perstn_i

mpcs_tx_out_clk

mpcs_ready_o

mpcs_txval_i

mpcs_tx_pcs_rstn_i

mpcs_tx_ch_din_i

Stage

Valid Clock

A B

C D E F

Valid Data

Valid Clock

Power Up

lmmi_clk_i

mpcs_clkin_i

lmmi_resetn_i

mpcs_perstn_i

mpcs_rx_out_clk

mpcs_ready_o

mpcs_rxval_o

mpcs_rx_pcs_rstn_i

mpcs_rx_ch_dout_o

Stage
