User Guide Chapter 6 Groups
Rev. 1.30.03.07.r1 Page

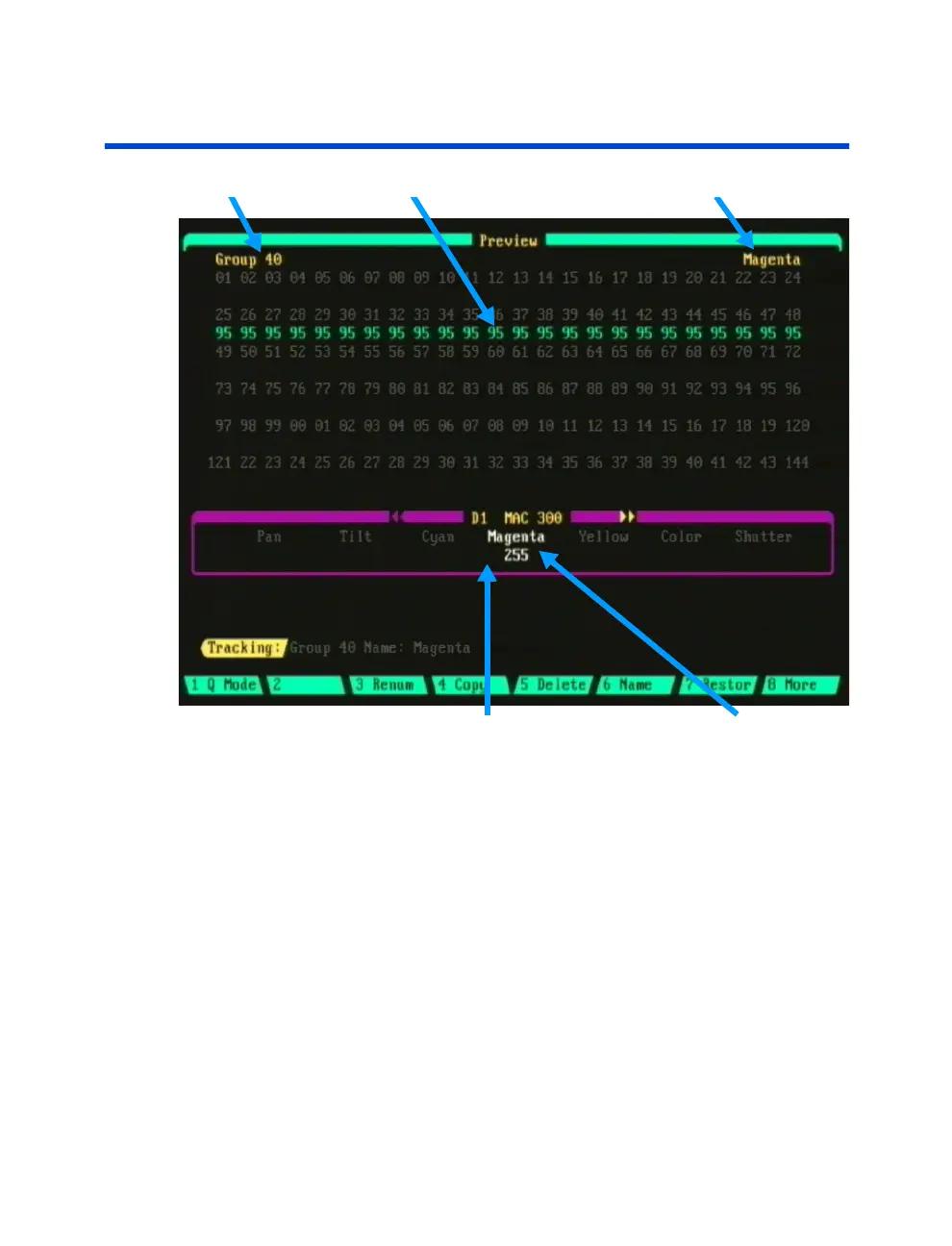

Group Preview Sub-Display
Group Number Group Levels (note teal color) Group Name
Figure 6.0
Device Display Box Device Trait in Group
Navigating the Group Sub-Display
To select a specific group, press the (SelGrp) soft-key while in the Preview
display. Only one group’s information is shown at a time. You can use the
left/right arrow keys to page through all the different groups.
Follow these steps to select a group from the Preview display:
Procedure: Notes:
1. Press [PREVIEW]
2. Press (SelGrp) [#] Selects group, if group doesn’t
exist, creates new group
3. Press [ENTER]
Group Colors in Display: Group levels are displayed in Teal while in the
Preview display.
