3-70 Service Manual
5026
Transferring
After the toner is attracted to the photoconductor drum, the image is ready for transfer onto the print media. The
print media is advanced in the paper path onto the transfer belt and is carried along the belt underneath each
photoconductor unit. The charged transfer roll(s) located inside the transfer belt pulls the image from the
photoconductor drum to the print media. This is a direct transfer method.
The main function of the transfer belt is to provide transport for the print media. Toner is not transferred directly
to the belt during the print process.

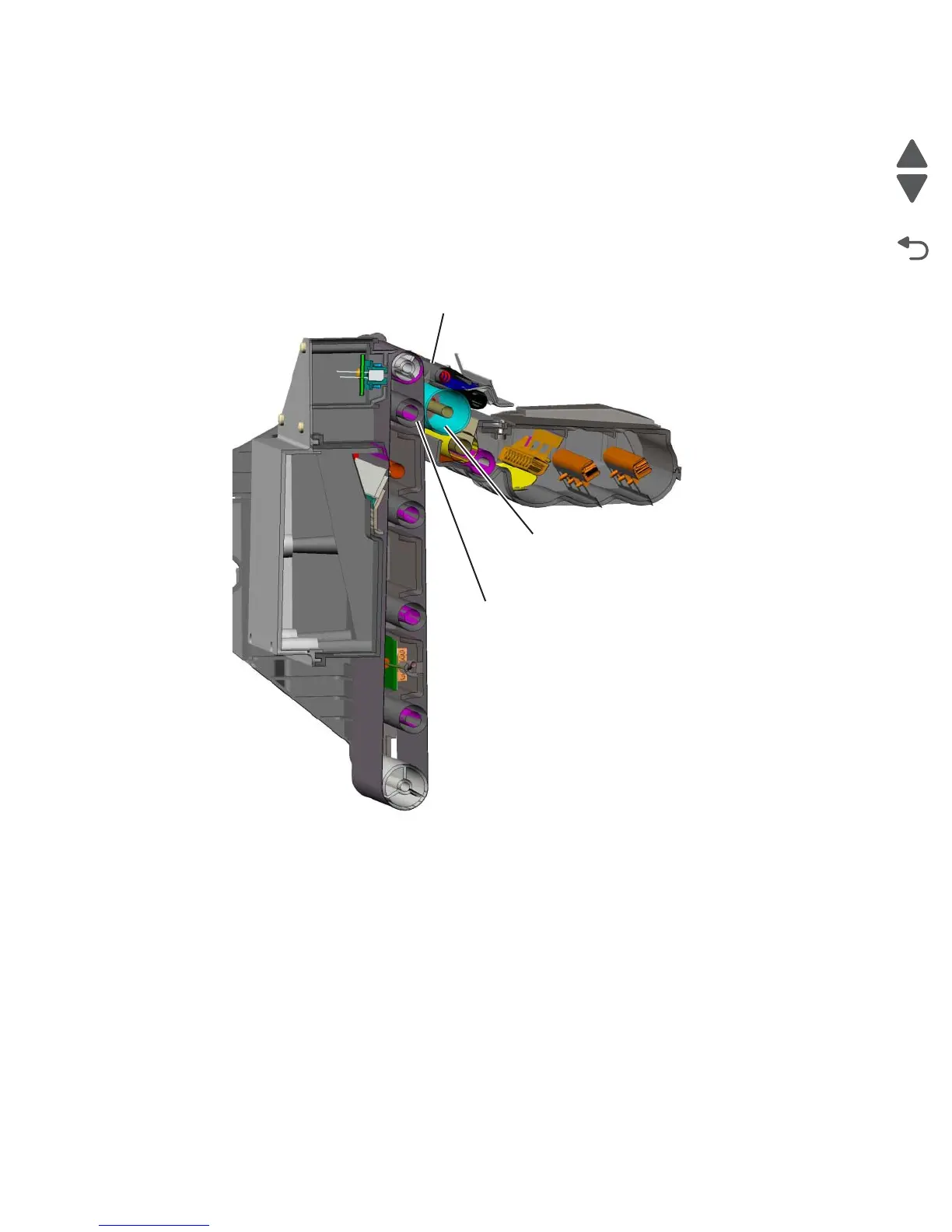

Photoconductor unit
Photoconductor
drum
Transfer roll
