Fusing

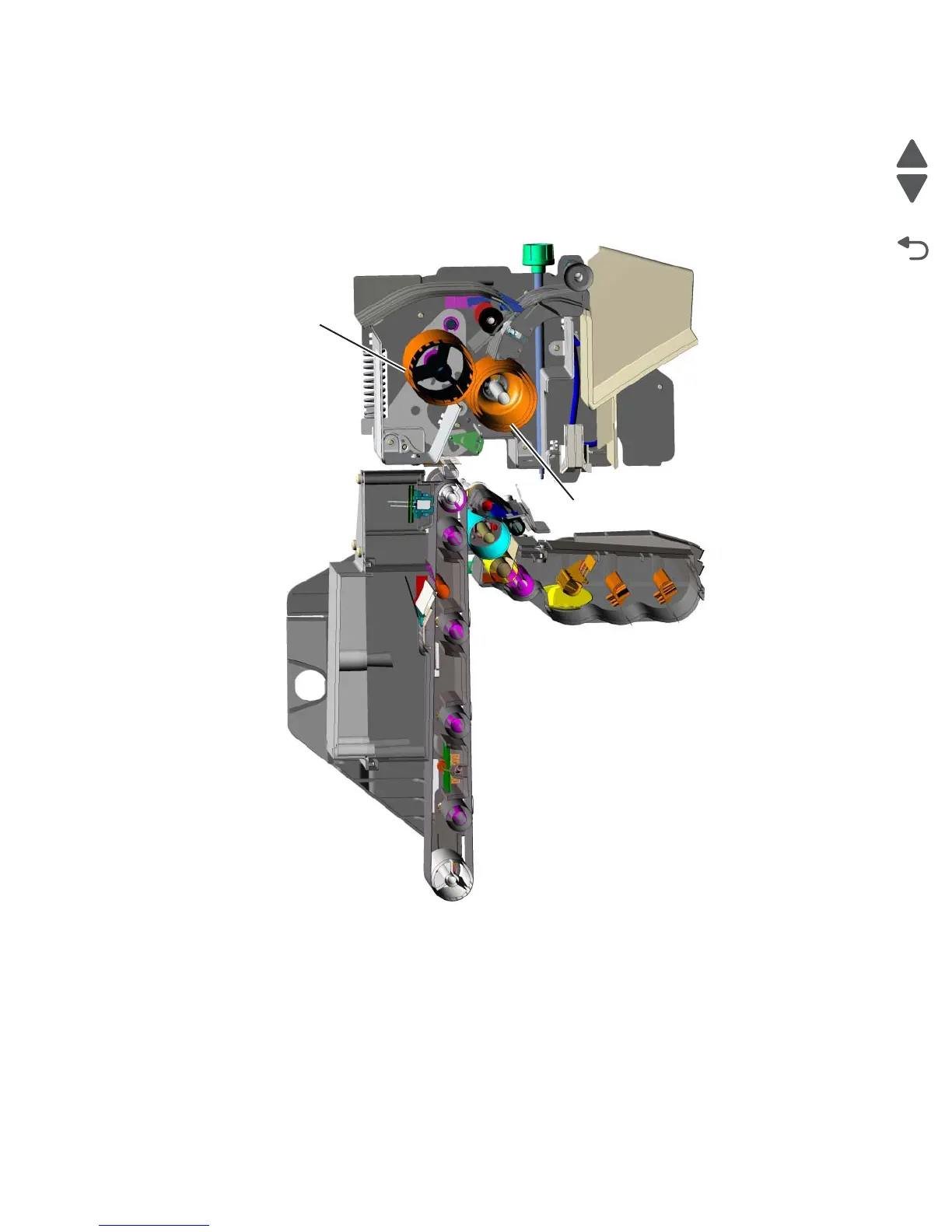

After the image has been transferred onto the print media, it is ready for fusing. The print media is transported
into the fuser where the hot roll and backup roll use a combination of high heat and pressure to melt and press
the toner to the media.
Backup roll
Hot roll
