3-72 Service Manual
5026
Cleaning

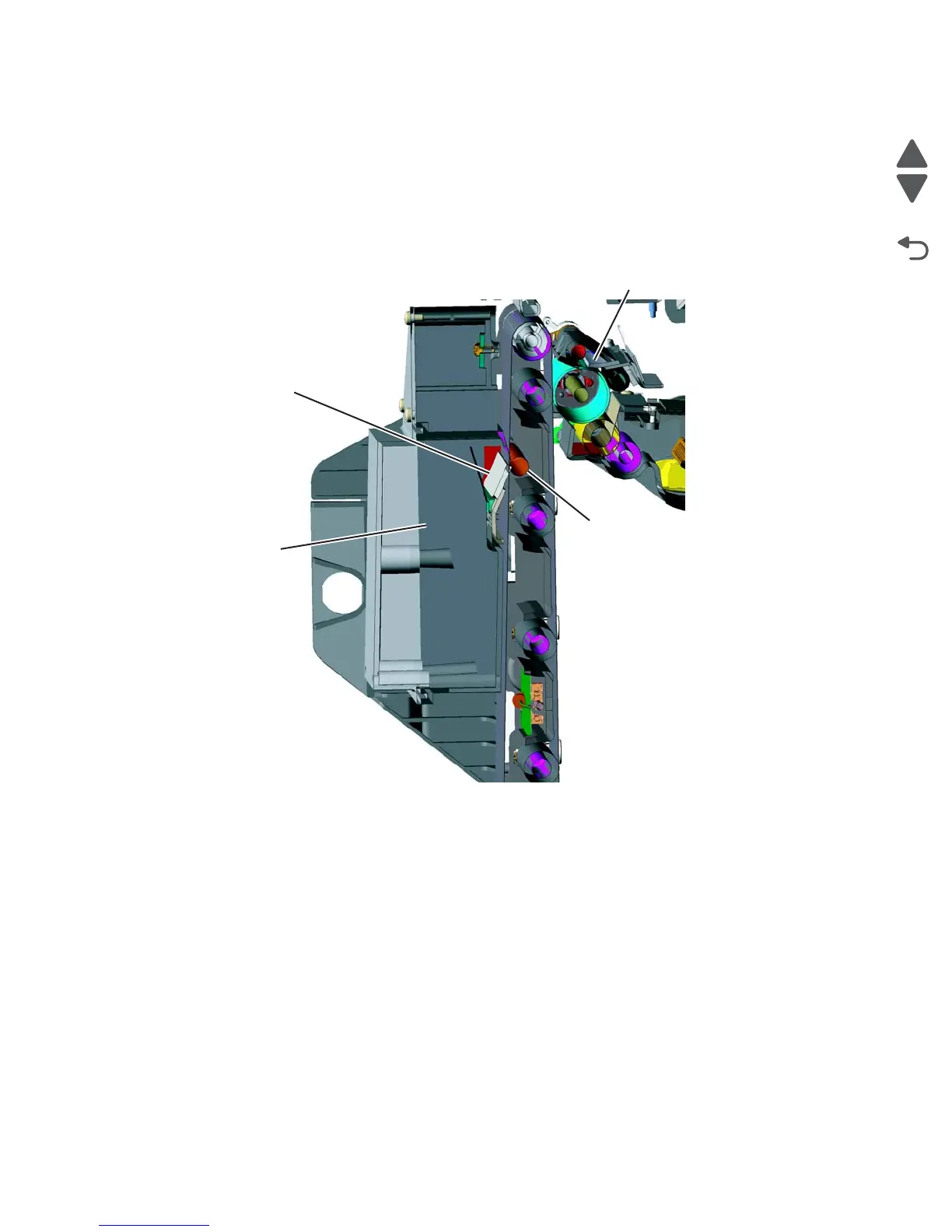

The transfer belt and photoconductor drum are cleaned at the end of the electrophotographic process cycle. The
transfer belt surface is cleaned as it rotates past a cleaning blade and shaft located inside the transfer belt
assembly. Any waste toner that is scraped off of the belt is collected in the waste toner container located next to
the belt inside the transfer belt unit.
The photoconductor drum is cleaned by the cleaning blade.
Transfer belt
cleaning blade
Photoconductor drum
cleaning blade
Transfer belt
cleaning shaft
Transfer belt
waste toner
container
