4-4 Service Manual
5026
18B0832
(Cont.)
Taptite M3 L6
panhead
Laser support plate to lower plate 2
Left camshaft lock assembly to printer frame 2
Left frame assembly to laser support plate 2
Left frame assembly to lower plate 4
Lower plate to left frame assembly 2
LVPS support plate to right plate 4
LVPS to right frame plate and support bracket 5
Motor driver card to EP drive assembly 2
MPF driver cover to right frame 3
Right camshaft lock assembly to printer frame 2
Right frame assembly to laser support plate 2
Right frame assembly to lower plate 3
System board to RIP plate 9
Top cover assembly to printer frame 5
Upper plate to right frame assembly 3
Upper plate to left frame assembly 3
Upper plate to laser support plate 3
18B0939 Plastite M3x6
flathead
Gearbox plate assembly to frame 4
18B2302 Machine M2.6
L3-3.5
MP feeder/duplex drive motor to rightside plate 2
18B2315 Machine M3
panhead L35
Printhead 1
27S2836 Taptite M3 L6
panhead, black
Left cover to printer frame (next to system board) 1
Rear cover frame to frame 8
Rear left cover to printer frame 1
Rear right cover to printer frame 1
Right cover to printer frame 4

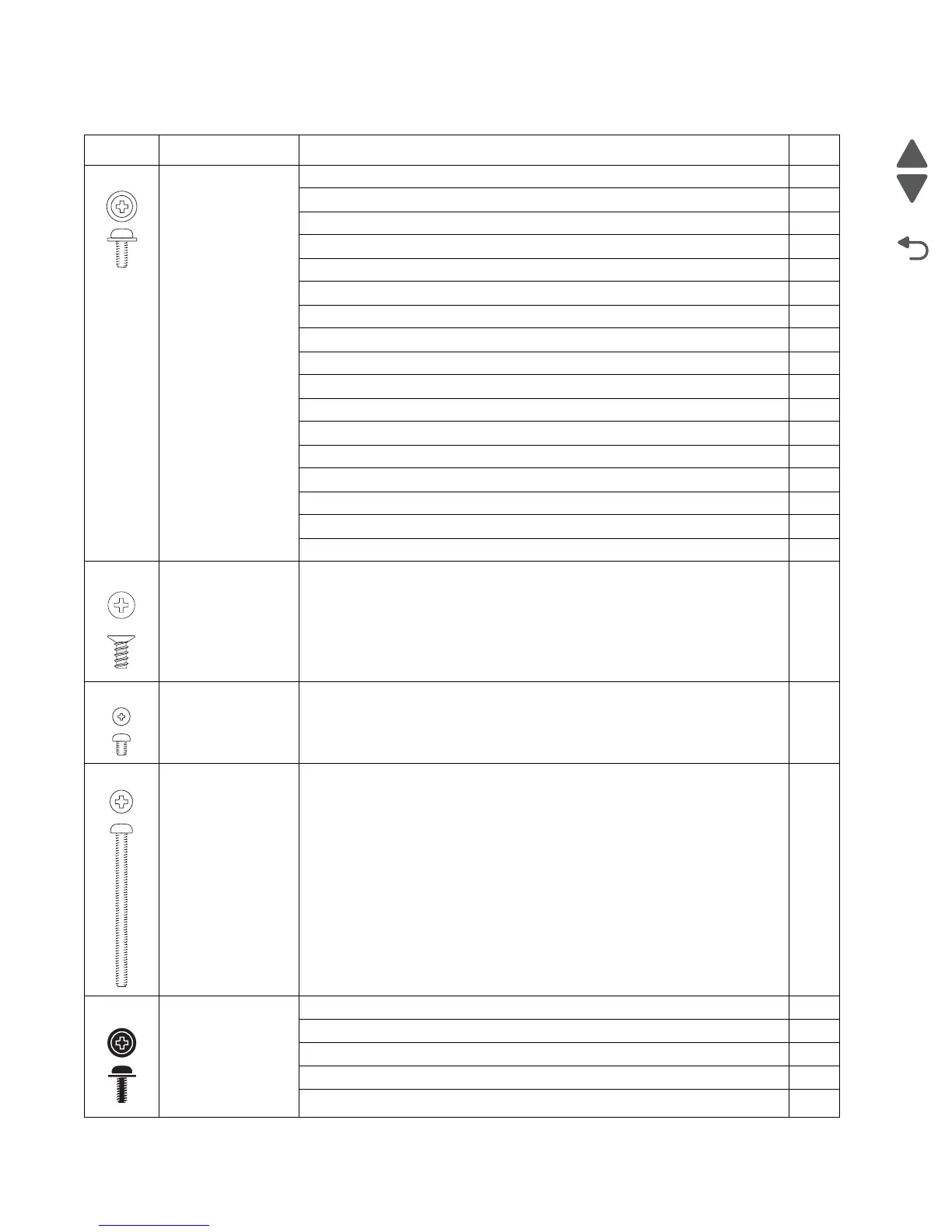

Screw identification table (continued)
P/N Screw type Location Qty
