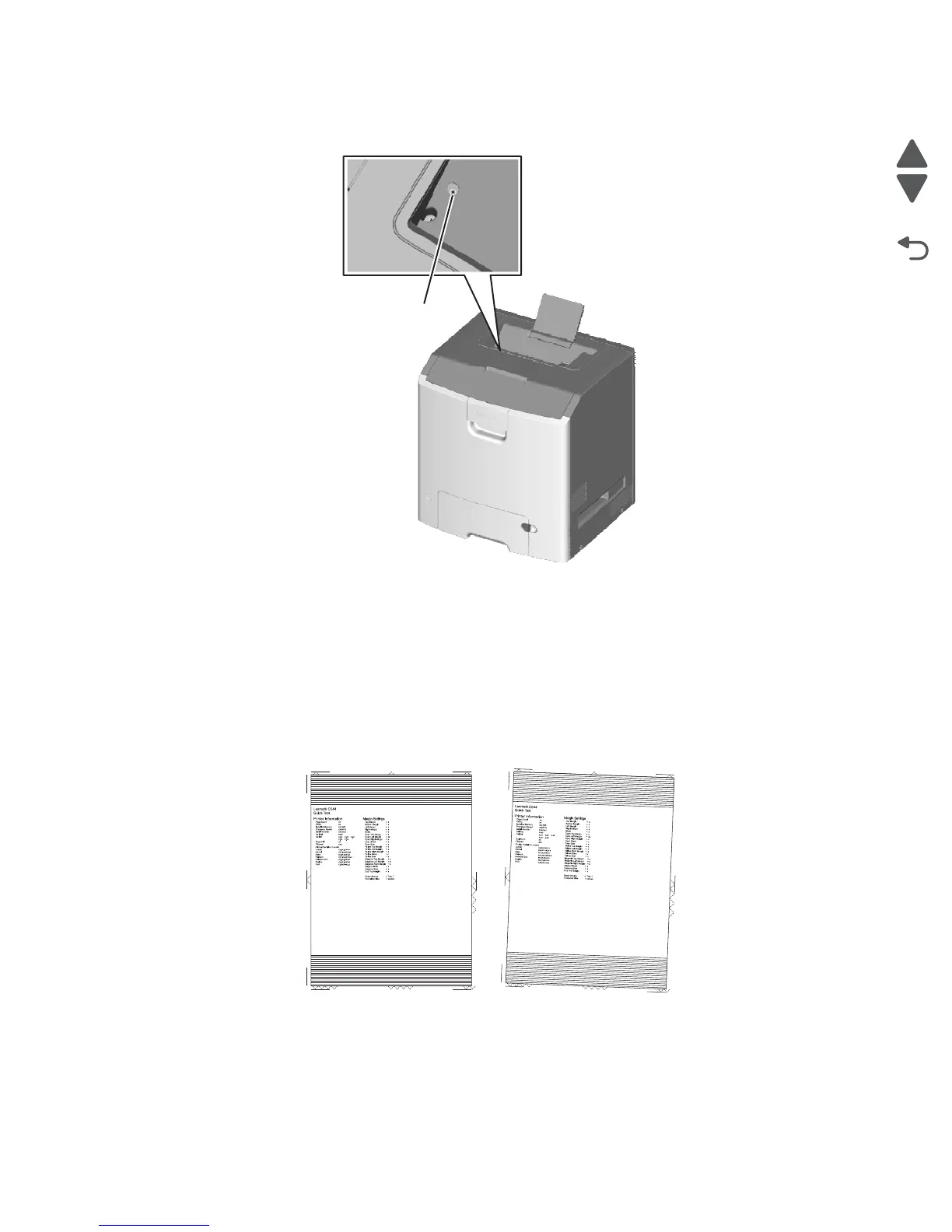

f. Adjust the printhead alignment screw (G) to change the skew and straighten the image on the
printout.
If the top right alignment marks are lower than the top left alignment marks, rotate the alignment
screw counterclockwise a full revolution, and print the Quick Test page. Repeat adjusting the screw
and printing the Quick Test until the top alignment marks are the same distance from the top of the
media.
Note: One rotation of the printhead alignment screw equals approximately 0.5 millimeter movement
of the top edge print alignment marks.
g. When the top right and top left alignment marks are both showing and are even on the page, the
skew is aligned.
