Operating elements for crane operation
9.1 Overview of the operating elements
9 - 28 Operating manual
GMK5150L

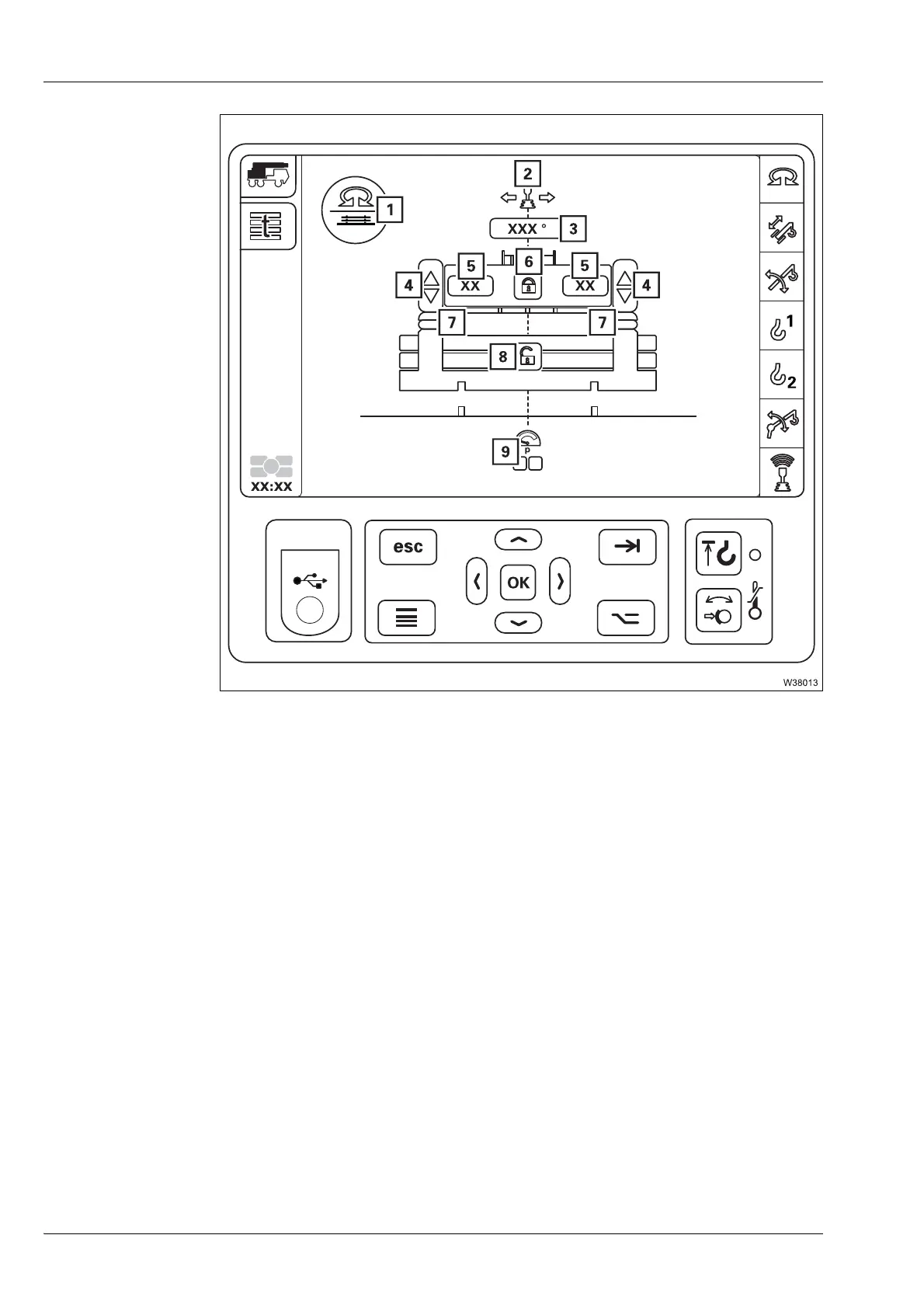

Counterweight
menu
1 Slewing release display
à p. 9 - 113
2 Display of slewing direction for automatic mode
à p. 9 - 110
3 Current slewing angle display
à p. 9 - 113
4 Extending/Retracting the lifting cylinders
à p. 9 - 112
5 Lifting cylinder position display
à p. 9 - 112
6 Automatic mode, rigging
à p. 9 - 111
7 Lifting cylinder position display
à p. 9 - 112
8 Automatic mode, unrigging
à p. 9 - 111
9 Pre-tensioning pressure display
à p. 9 - 112
