Manitowoc GROVE GMK5150L

Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual 9 - 27
GMK5150L
Superstructure

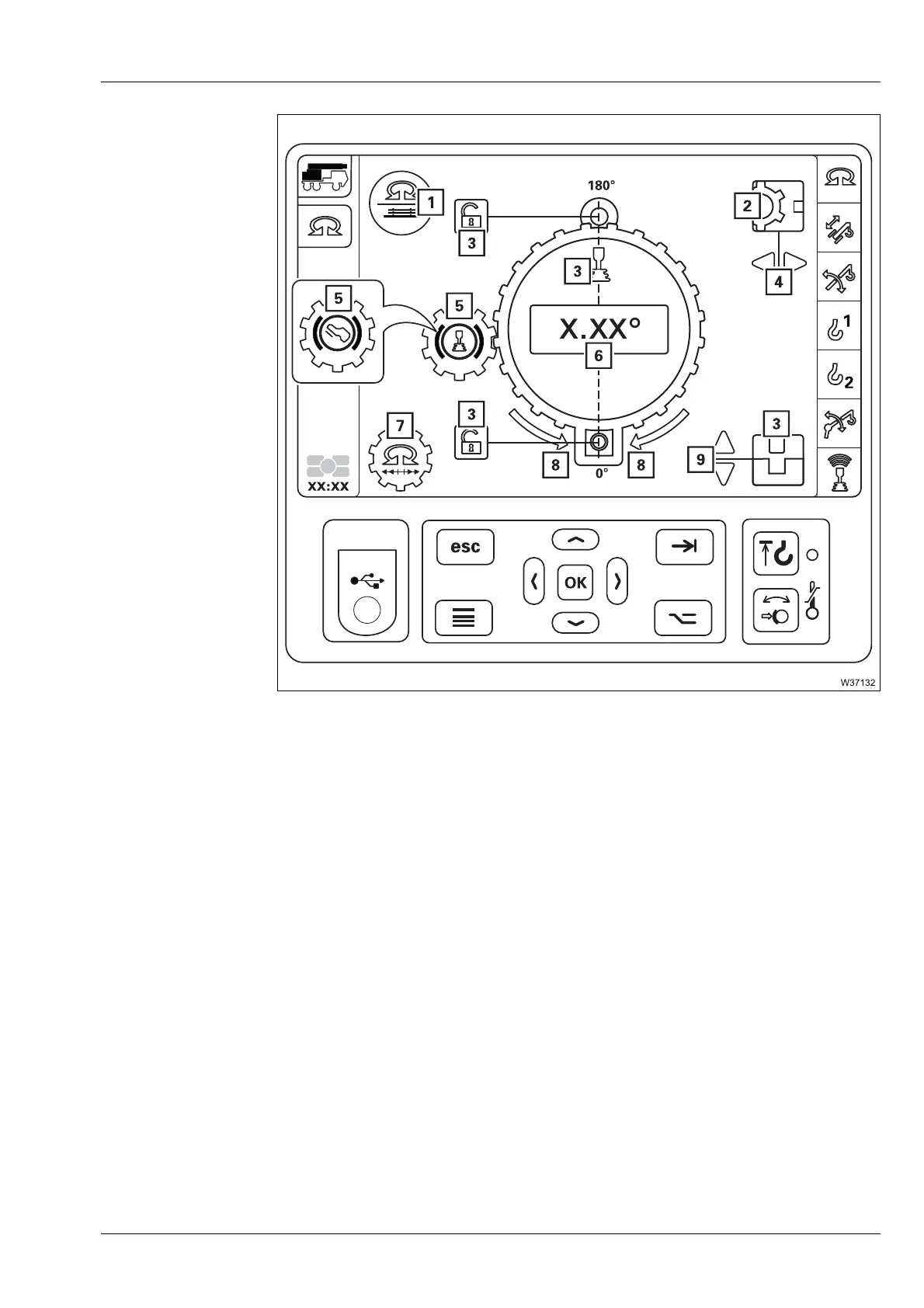

lock sub-menu
s
1 Slewing release display – identical to the display in
the
Counterweight menu
à p. 9 - 28
2 House lock locking status displays
1)
à p. 9 - 131
3 Locking status displays
à p. 9 - 129
4 House lock on/off
1)
à p. 9 - 131
5 Display/switch function for the slewing gear brake
à p. 9 - 119
6 Current slewing angle display
1)
à p. 9 - 130
7 Slewing speed reduction on/off
à p. 9 - 119
8 Display slewing direction to 0°/180°
à p. 9 - 130
9 Locking/unlocking the turntable
1)
à p. 9 - 129
1)
Additional equipment
