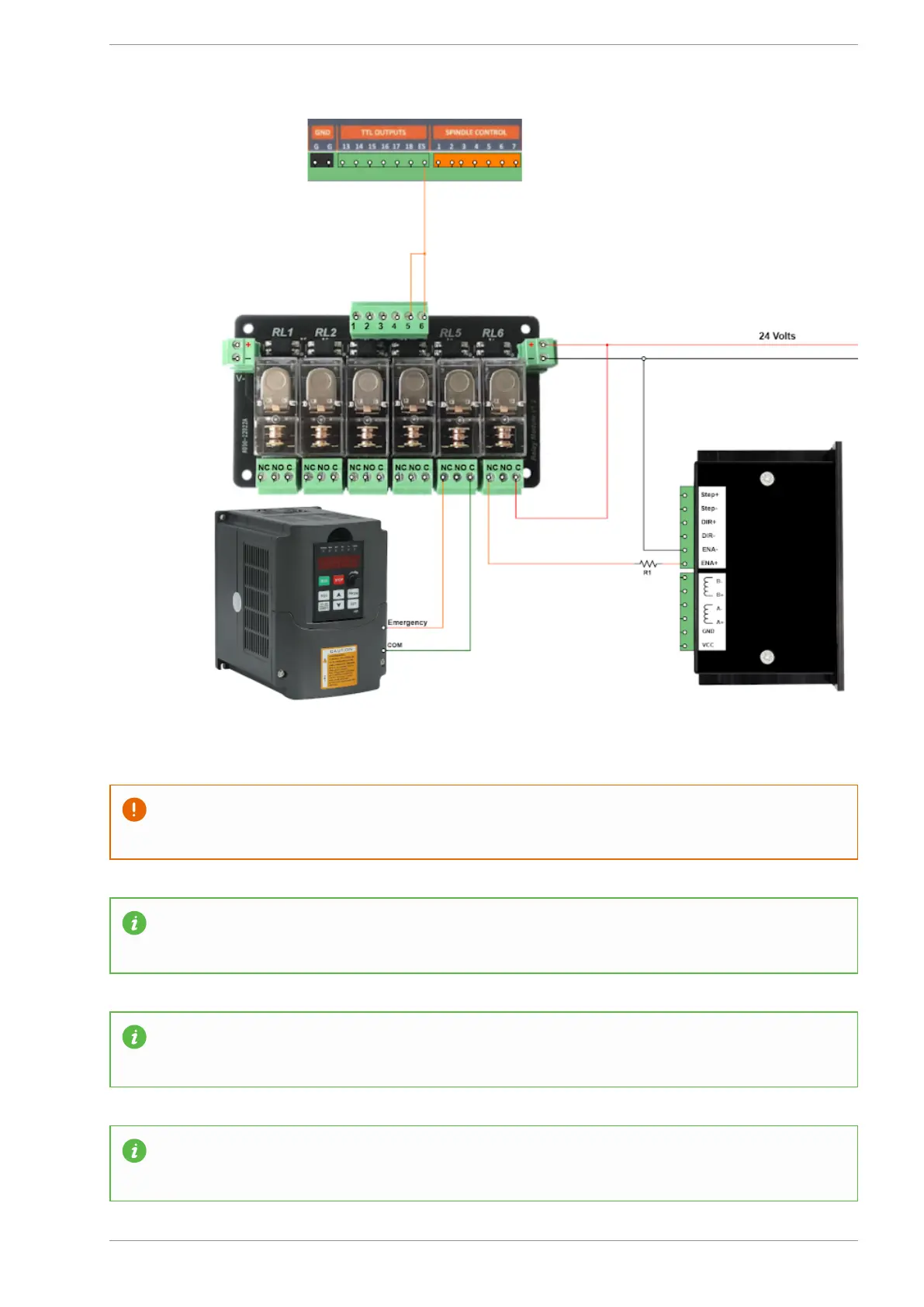

CAUTION: This diagram is for demonstration purposes only to illustrate the concept. Please
consult your stepper or servo drive and VFD manuals for the correct method of connection.
INFORMATION: Up to two of the MASSO relay inputs can be connected to the ES output. If more
relay contacts are required use the TTL relay output to drive a relay with multiple contacts.
INFORMATION: Note that relays will operate when the Estop is released and release when Estop
is engaged.
INFORMATION: If using a MASSO G2 Relay output 7 is the EStop ouput.
