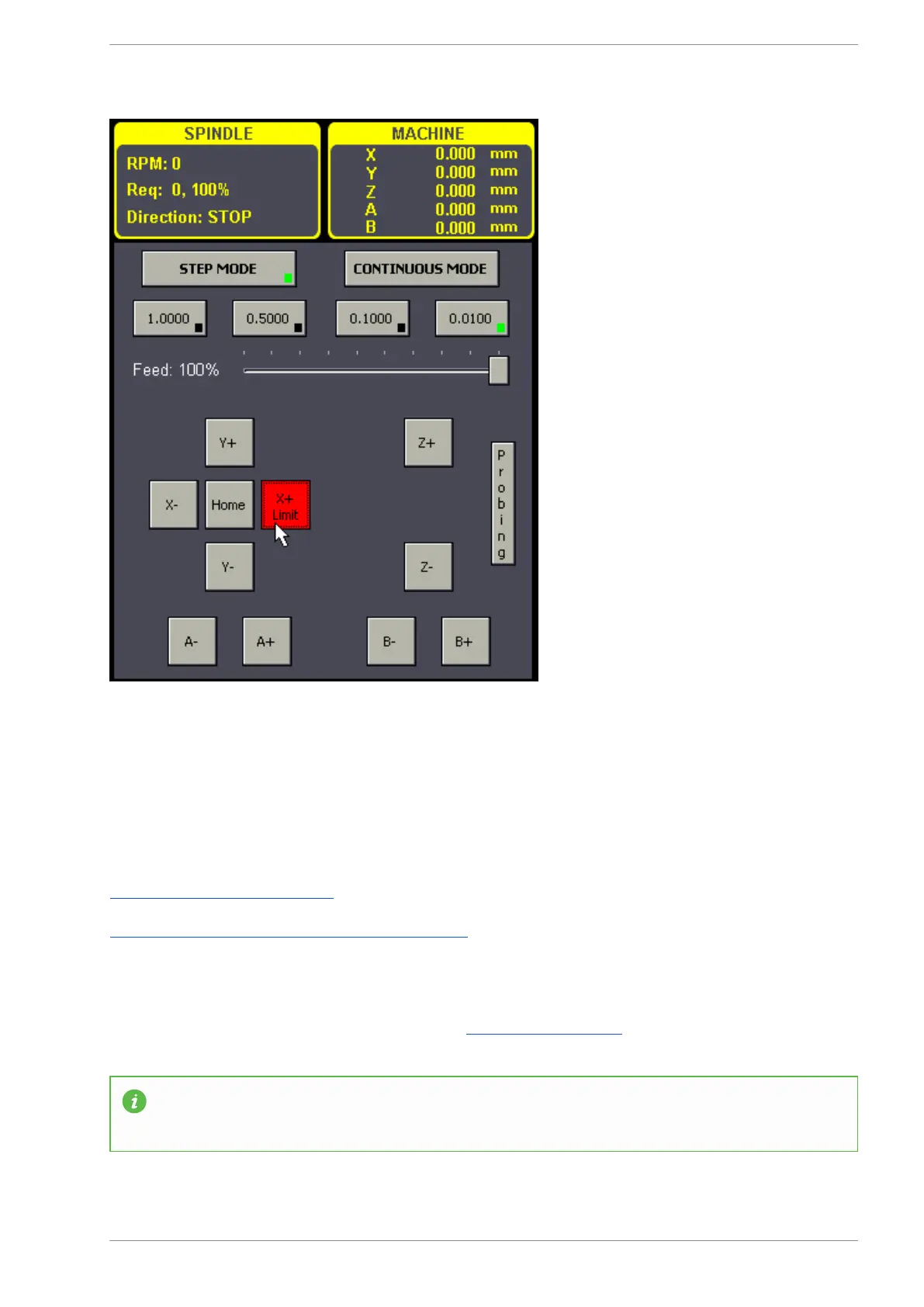

Pendant
No software configuration is required to make the MASSO MPG pendant work. Simply plug it in and it will
work. To make the Estop button on the pendant work you need to wire the Estop in accordance with the
Estop Instructions as per the below links. Once the Estop is wired through the pendant, removing the
pendant will cause the E-Stop alarm and you will need to plug it back in to remove the Estop condition.
MPG pendant wiring instructions
Wiring only one e stop on MPG pendant instructions
Hint: The biggest problem new users have with pendants come from using 3rd party pendants with
incompatible MPG's built into them. They may look the same but internally they use different components.
The MASSO Pendant can be purchased from here: MASSO MPG pendant
Hint: MASSO cannot use USB pendants of any type.
