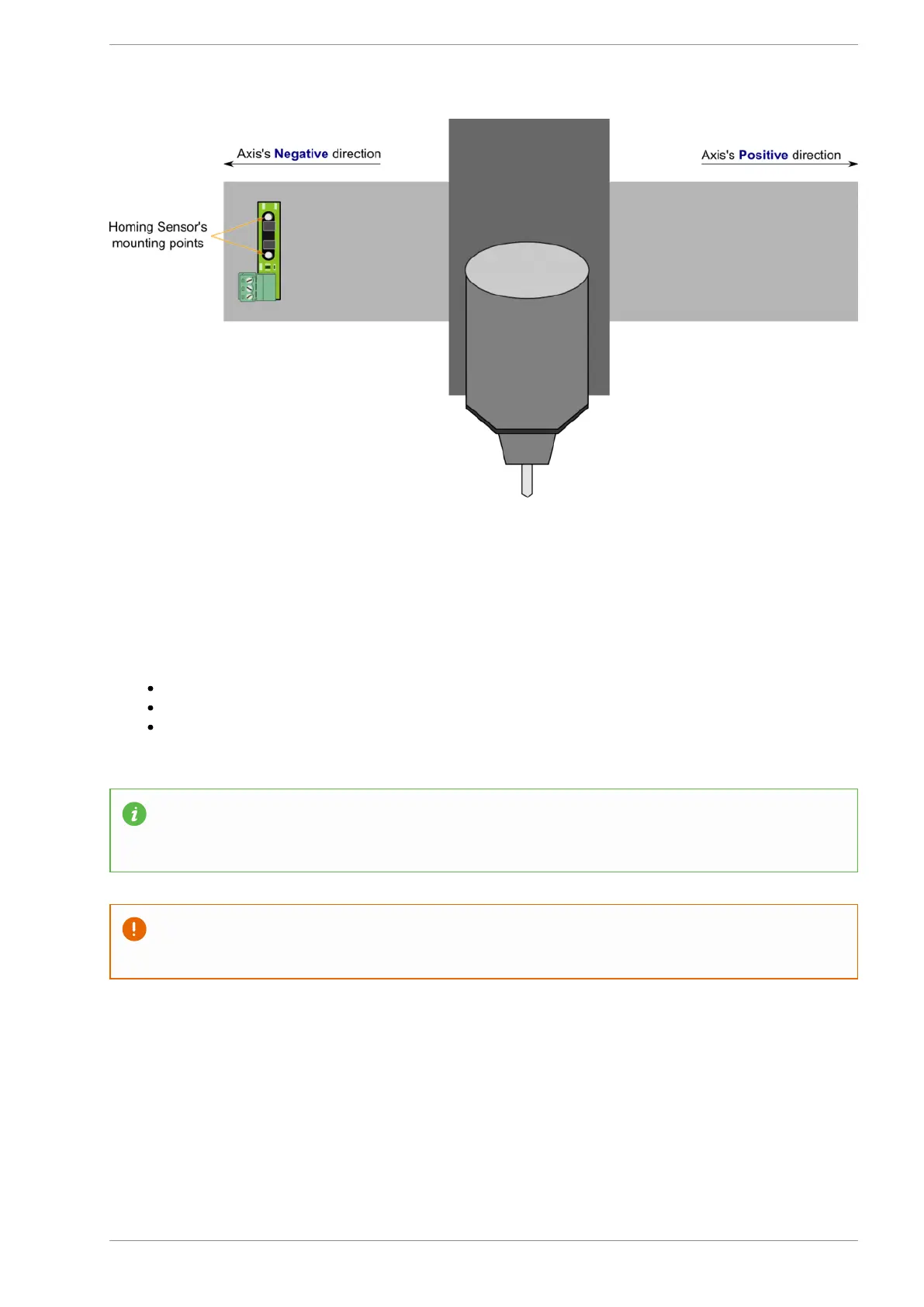

Step 2: Assign inputs
After wiring the sensor/switches the system must be configured for proper operation as described below:
Go to the F1-Setup screen.
From the INPUTS list select any free input and assign them as X, Y, Z... Home sensor Input.
You can also see the status of the sensors change from L to H when a signal is received on that
input from homing sensor/switch.
INFORMATION: All input signals can be easily inverted by selecting the input in the INPUTS list
and pressing the space-bar key on the keyboard to invert the input signal. These settings are
automatically saved.
CAUTION: The homing inputs must show LOW signal when the sensor/switch is not engaged or
the homing will fail.
