Installing the E-Stop button
The E-Stop button needs to be installed first, please follow the steps to install the E-Stop button.

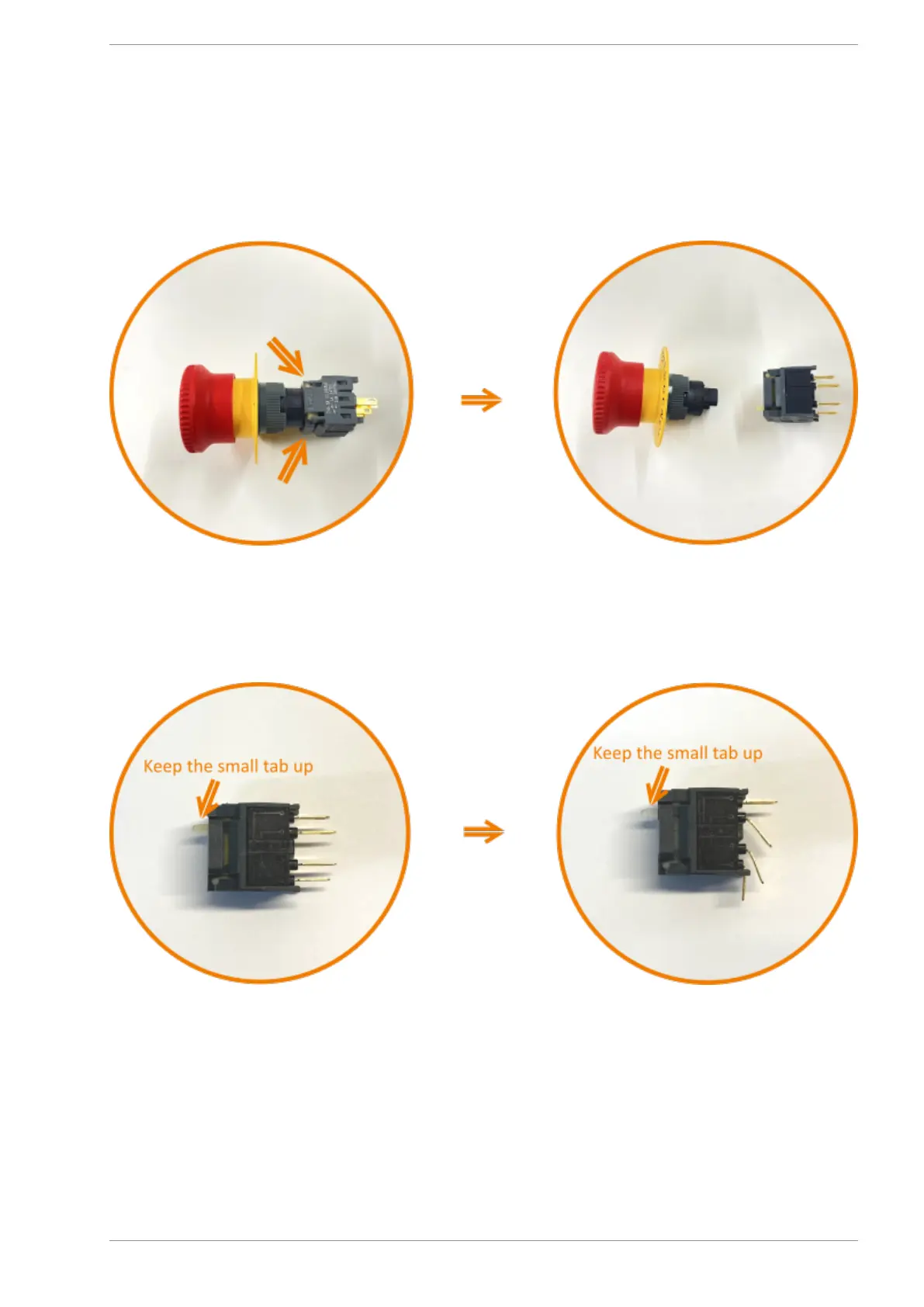

Press the two clips and pull the backside of the E-Stop button
Bend the switch button as shown above.
NOTE: Keep the direction of the switch as marked by the tab.
v5.18 - 08 Apr,2021
www.masso.com.au Page 35 of 477
