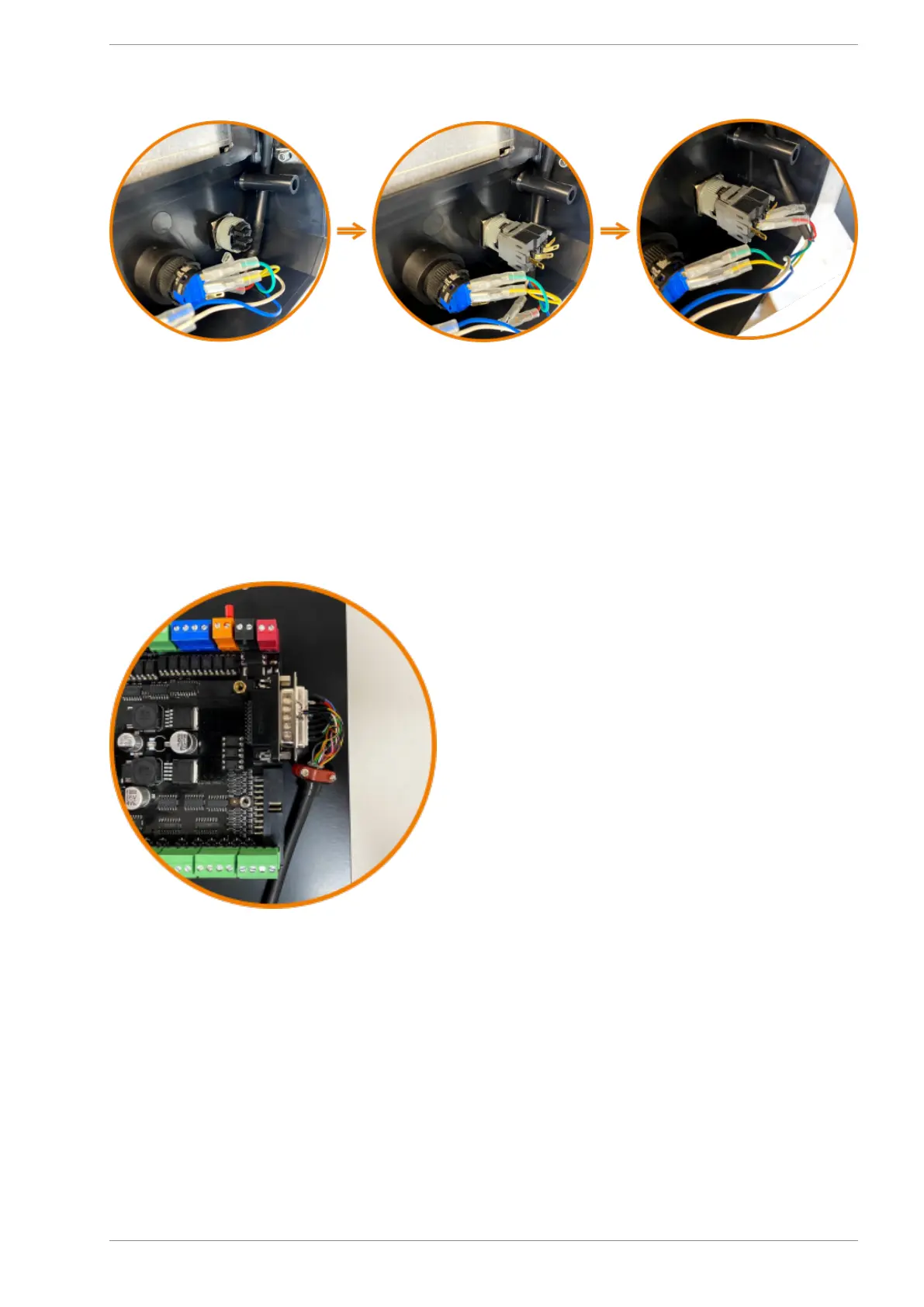

Install the E-Stop button, plugin the rear switch, and plug the wire crimps into the middle two pins.
Installing MPG connector
For installing the MPG connector, remove the D-Connector plastic shell and install it as shown below.
LCD Cable connector
If for any reason the LCD cable has to be removed and installed back, it must be installed in the direction as
shown below else the LCD or the MASSO controller might get damaged.
