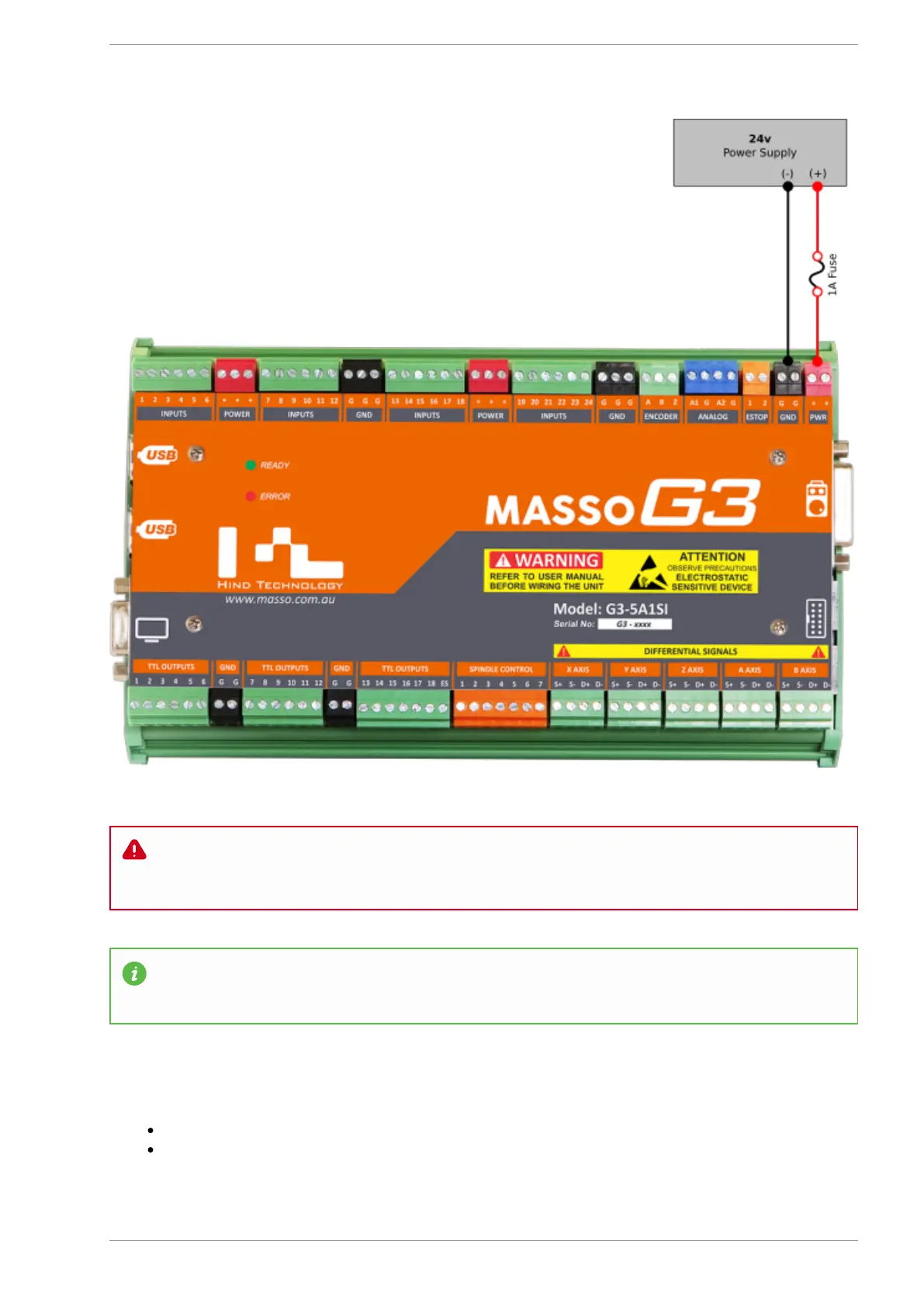

WARNING: The installation of a 1 amp fuse between your Power Supply and MASSO is required
to protect against an accidental short circuit of the auxiliary power connectors on MASSO, such an
event can damage the controller beyond repair.
INFORMATION: There are multiple Power (Red-colored) and Ground (Black-colored) provided
on the controller and can be used to easily wire drives, sensors and switches.
Some examples:
The Power terminals can be used to provide voltage to sensors or switches for machine homing.
The Ground terminals can be used to wire common ground signals between stepper or servo motor
drives.
