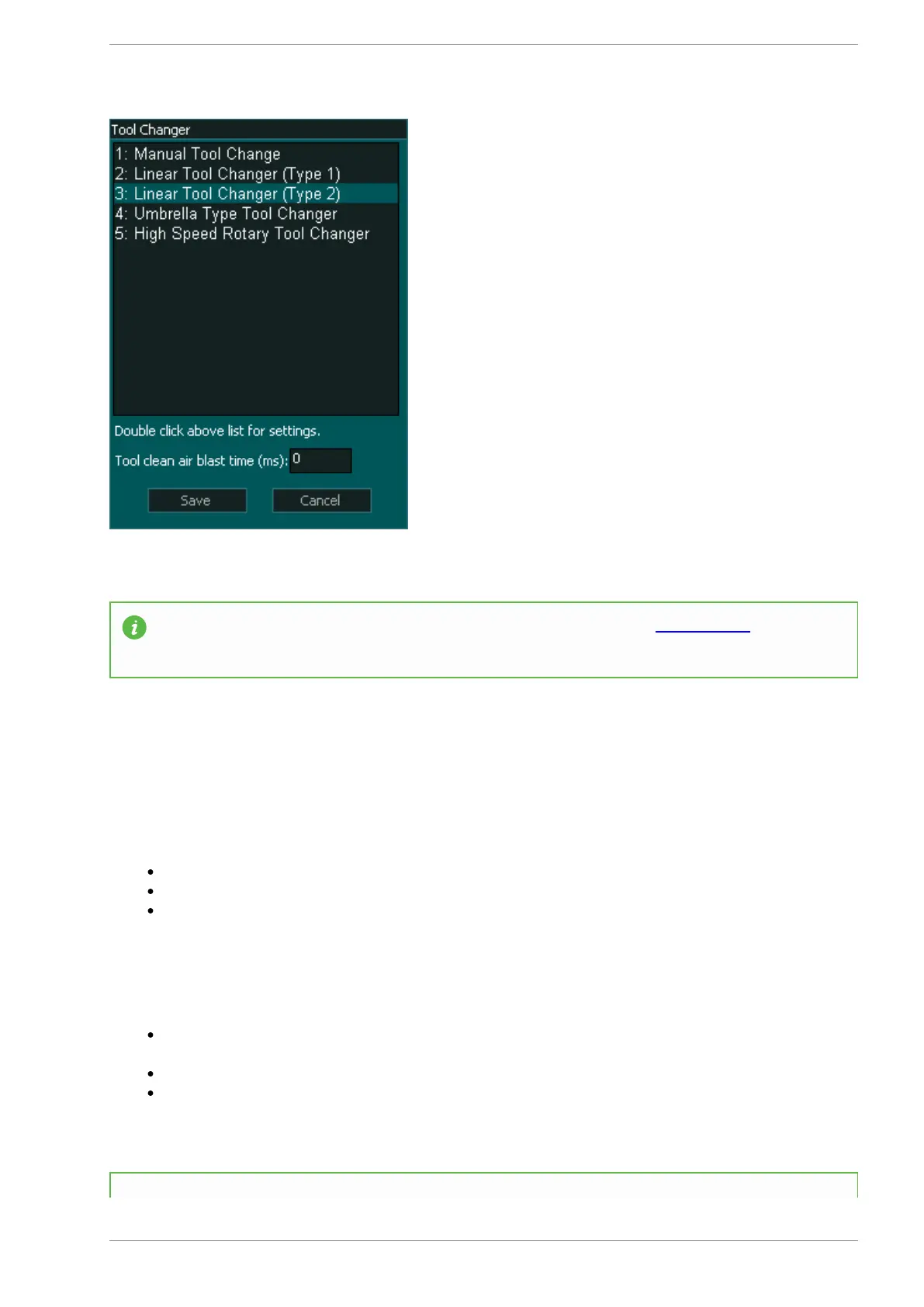

Setting up the tool changer logic
INFORMATION: To set up the tool changer logic please see this page: CLICK HERE
Tool Changer Inputs and Outputs
INPUTS
Tool Changer – Input 1 for Spindle drawbar Status (Low for clamped and High for un-clamped)
Tool Changer – Input 2 for Tool in place Status (Alarm when Low)
Tool Changer – Input 3 for Dust Hood UP OK signal (High means hood UP)
OUTPUTS
Chuck Clamp M10/M11 for spindle drawbar clamp and un-clamp (Low to clamp and High to un-
clamp)
Tool Changer – Output 1 to move Dust Hood UP/DOWN (When HIGH the hood will move UP)
Tool Changer – Output 2 for air return (Will stay high for 6 seconds after tool change)
