MASSO
MASSO Documentation
Output Signals

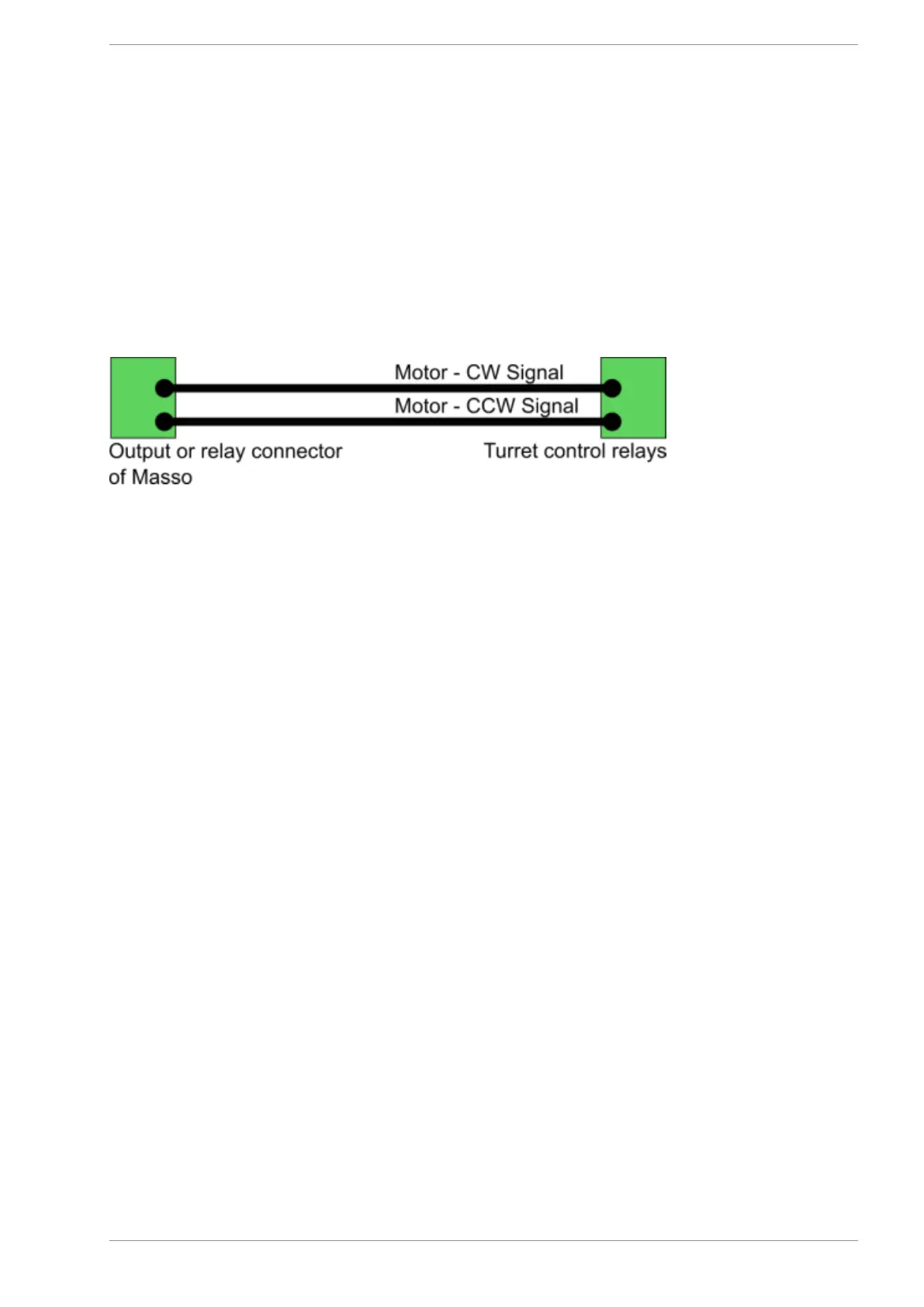

Wire the turrets control electronics
CW
and
CCW
signals on any free outputs on MASSO and in the
OUTPUTS
list assign them to the
CW
signal to
Tool Changer - Output 1
and
CCW
signal to
Tool Changer
- Output 2.
v5.18 - 08 Apr,2021
www.masso.com.au
Page 430 of 477
429
431
