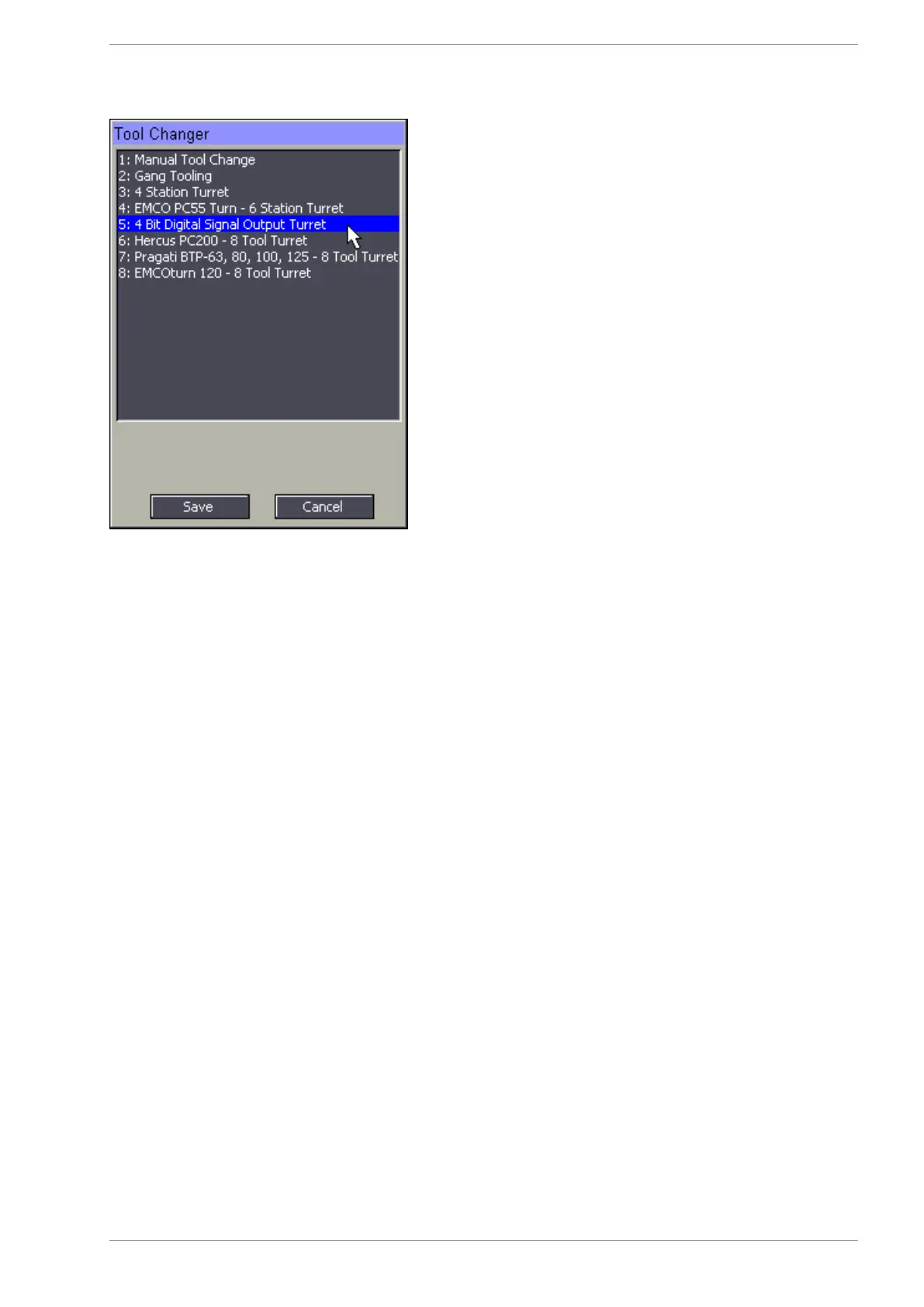

Tool changer logic
On a tool change request, MASSO will make the Tool Changer - Output 1 HIGH to turn the tool changer
head clockwise till the desired tool has been loaded in position. Once the tool is in position the Tool
Changer - Output 1 becomes LOW and Tool Changer - Output 2 goes HIGH to turn the tool changer head
counterclockwise for 400ms to lock the tool in position.
Input Signals
Wire the Bit 1, Bit 2, Bit 3 & Bit 4 signals to any free inputs on MASSO and in the INPUTS list assign them
to Tool Changer - Input 1 to Tool Changer - Input 4.
