Output Signals

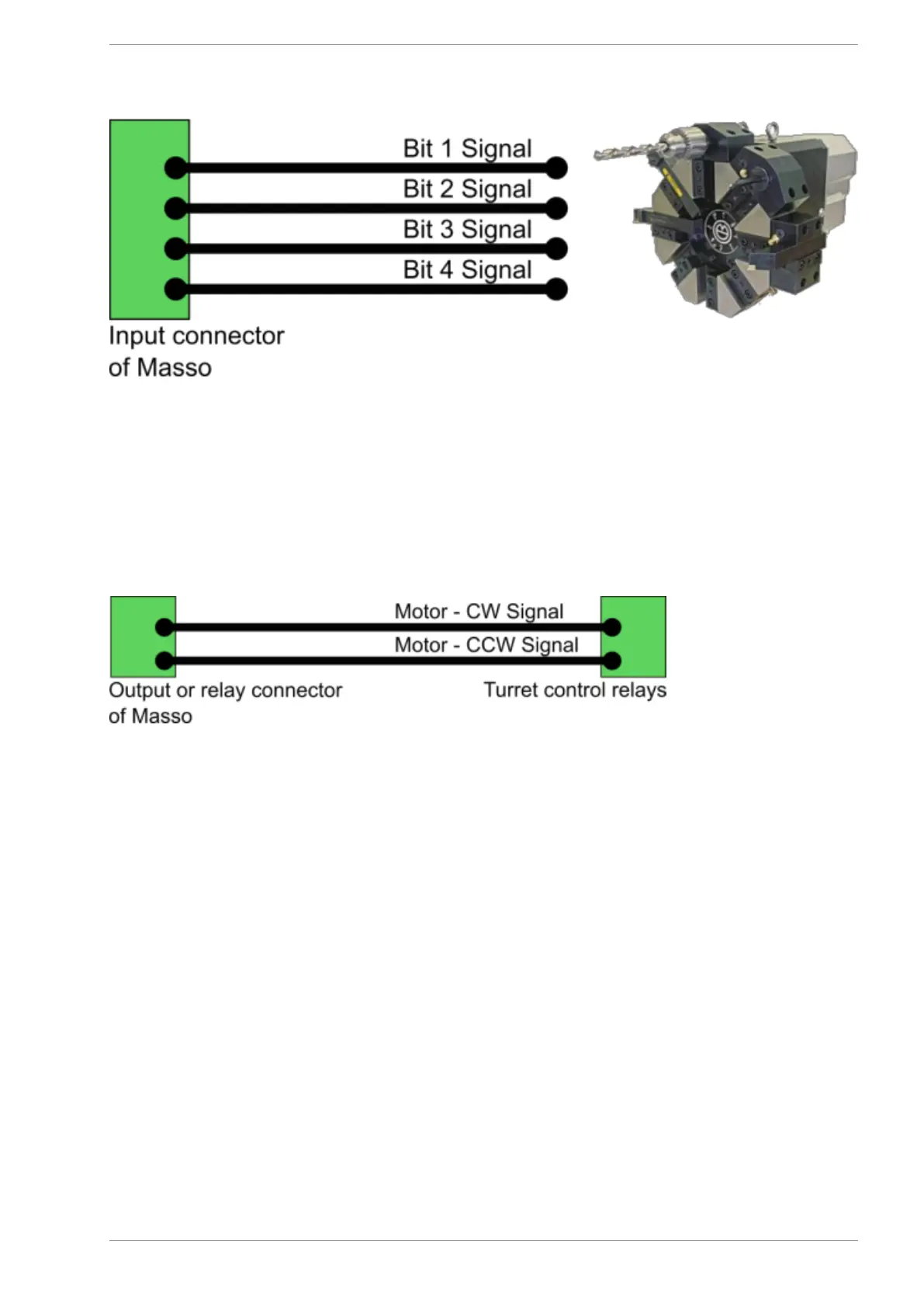

Wire the turrets control electronics CW and CCW signals on any free outputs on MASSO and in the

OUTPUTS list assign them to the CW signal to Tool Changer - Output 1 and CCW signal to Tool Changer

- Output 2.

v5.18 - 08 Apr,2021

www.masso.com.au Page 435 of 477
