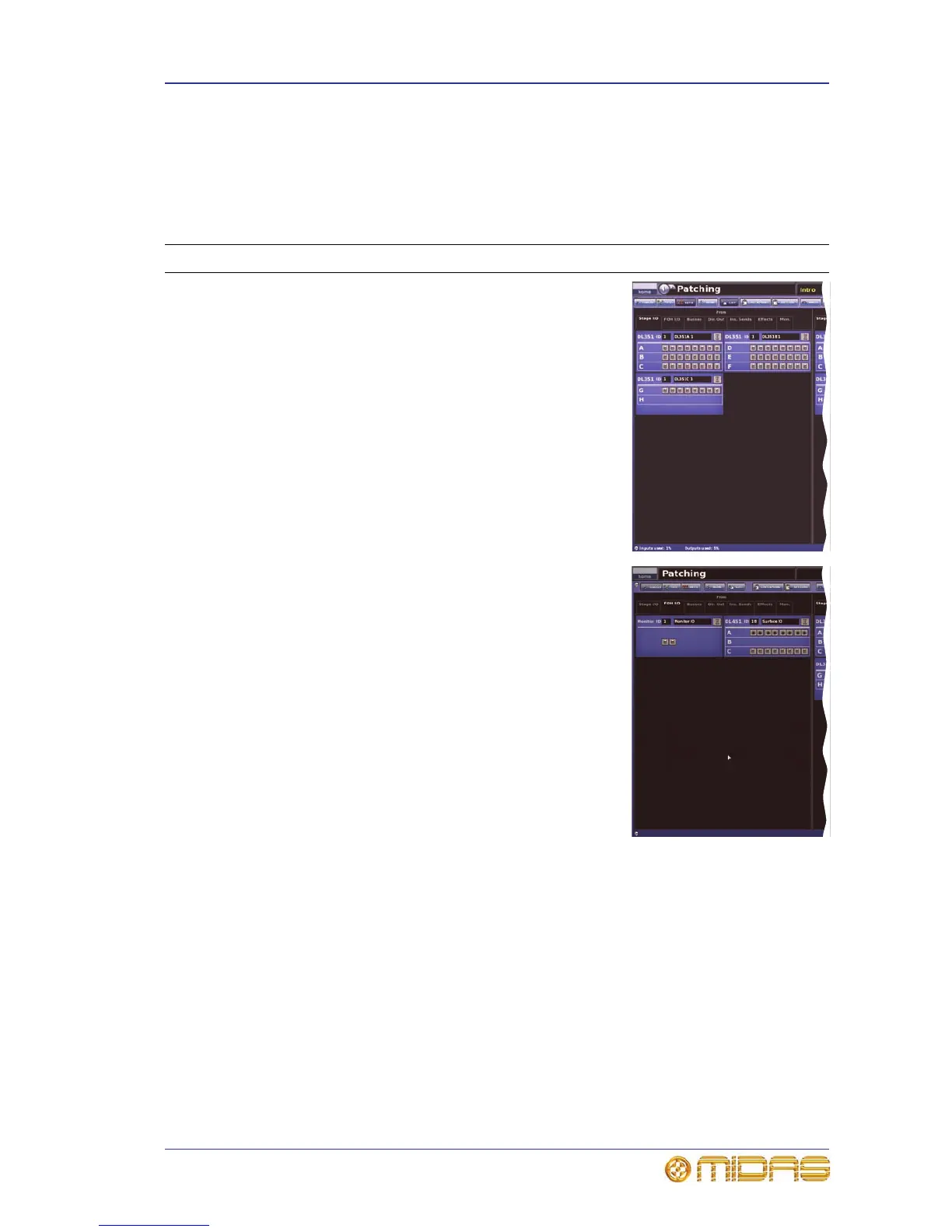

About the Patching screen 75
PRO Series Live Audio Systems
Owner’s Manual
About the tabs in the From and To sections
Each tab in the From and To sections of the Patching screen contains graphical
representations of the PRO Series source and destination patch connectors,
respectively. For details of where you can access the tab sheets in the From and To
sections from, see “Navigating to the Patching screen” on page 85.
Table 4: Patching screen tabs
Tab name Section Description Example
Stage I/O From The Stage I/O tab (see
Figure 14, “Typical AES50 Device
Configuration window,” on
page 92) contains the devices
fitted in the Stage rack (see
“System components” on
page 14). For information on what
devices can be fitted in the I/O
rack, see “About the devices on
the stage and FOH I/O tabs” on
page 85.
FOH I/O From The FOH I/O tab contains the
devices fitted in the FOH rack (see
“System components” on
page 14). For information on what
devices can be fitted in the
I/O rack, see “About the devices
on the stage and FOH I/O tabs” on
page 85.
To Next Page
