Midas PRO SERIES User Manual

Matrices 447
PRO Series Live Audio Systems
Owner’s Manual
Matrices
Each scope screen has a Matrix section.
Parameter sections per matrix channel. There are 16 matrices per PRO6 and PRO9, and
only eight on the PRO3. This example is taken from a PRO9.
Patching

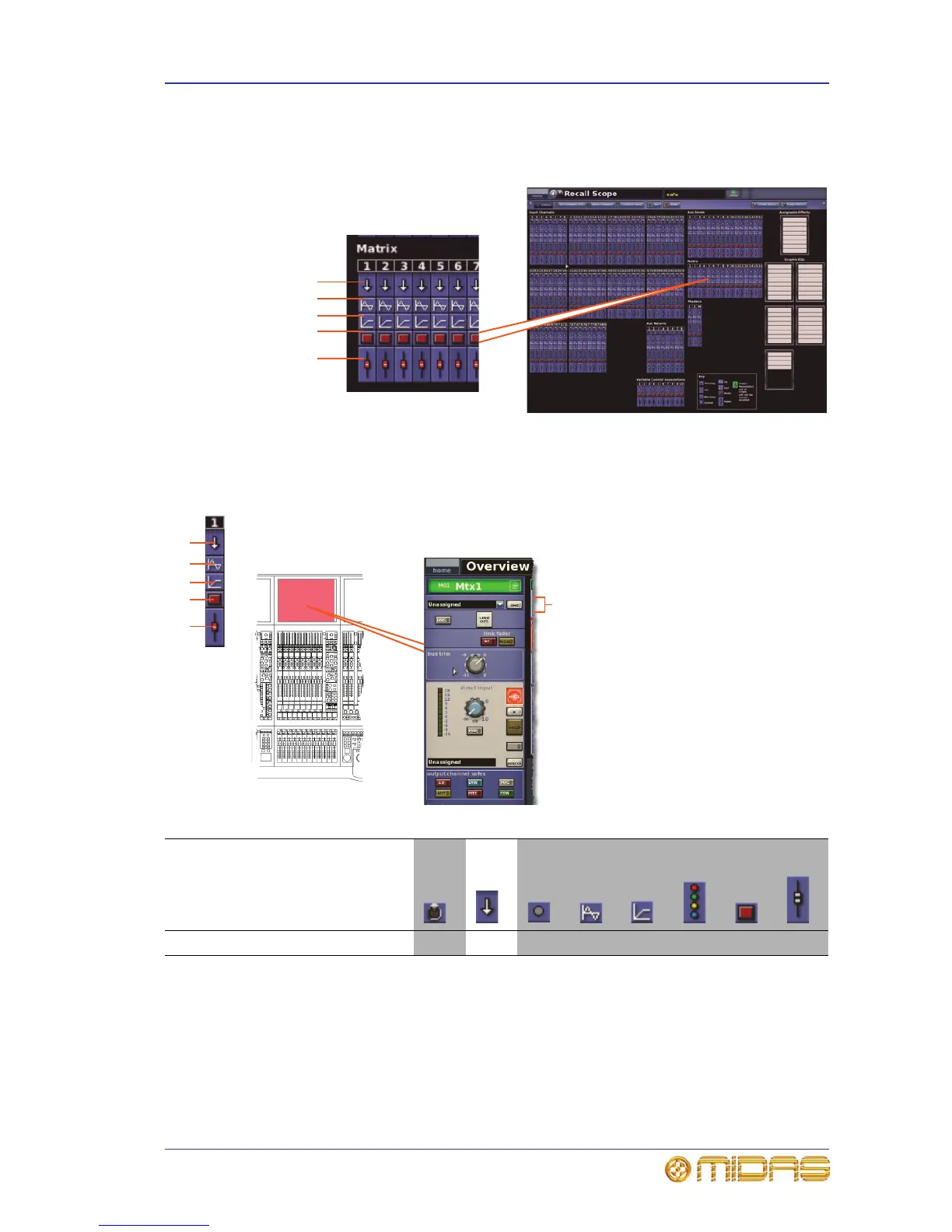

The following diagram details the scoped patching parameters of the matrix channels.
ABC D E F G H
Item Parameter
1 Output patching N/A No N/A N/A N/A N/A N/A N/A
All (B)
EQ (D)
Dyn (E)
Mute (G)
Fader (H)
B
D
E
G
H
1
Insert and
configuration
processing
area in GUI
channel strip

Midas PRO SERIES Specifications

General

Series	PRO SERIES
Sample Rate	96 kHz
Word Clock	Yes
Type	Digital Mixing Console
Mix Buses	Up to 24
Connectivity	AES50
Control Surface	Motorized Faders
EQ Bands	4-band Parametric EQ per channel
Effects	Multiple internal effects engines
Frequency Response	20 Hz - 20 kHz
Processing	40-bit floating point
