Rear panel connections 267
PRO Series Live Audio Systems
Owner’s Manual
External connections and communications (centre left) section

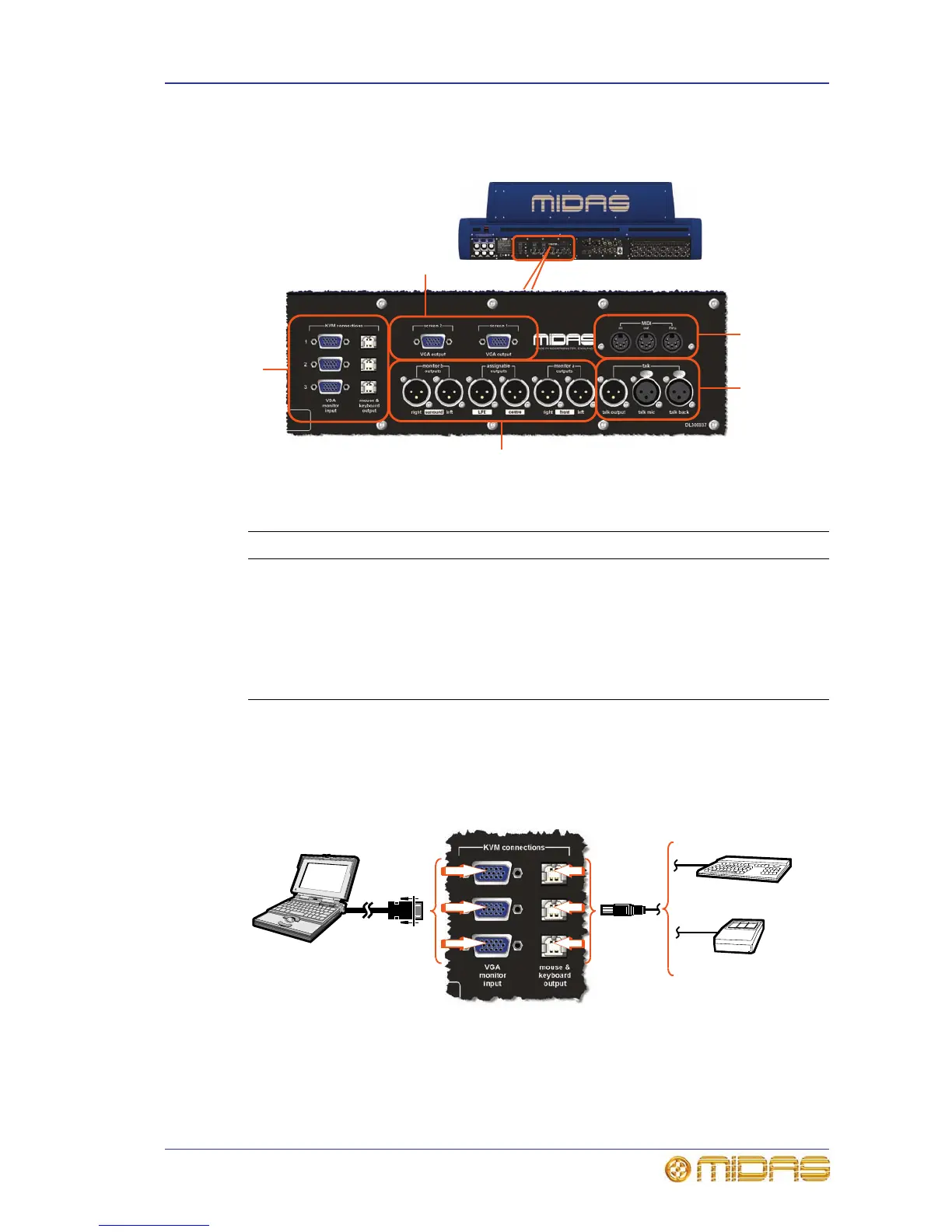

The far left rear connector panel houses the sections shown in the following diagram.
External connections and communications on the rear panel of a PRO Series Control
Centre
KVM connections section
Three sets of KVM connections allow three PCs (laptops, tablets etc.) to be connected
to the PRO Series Control Centre for external monitoring and control. Each set
comprises a VGA monitor input 15-way, D-type socket and a mouse & keyboard
output USB type B socket, which can be used for connection of a mouse or keyboard.
KVM connections on the rear panel of a PRO Series Control Centre
Item Description
1 MIDI section (see “MIDI section” on page 268).
2 talk section (see “talk section” on page 268).
3 Monitor/surround outputs section (see “Monitor and assignable outputs/
surround section” on page 268).
4 KVM connections section (see “KVM connections section” on page 267).
5 VGA outputs section (see “External monitor section” on page 272).
