268 Chapter 29: Panel Connections
PRO Series Live Audio Systems
Owner’s Manual

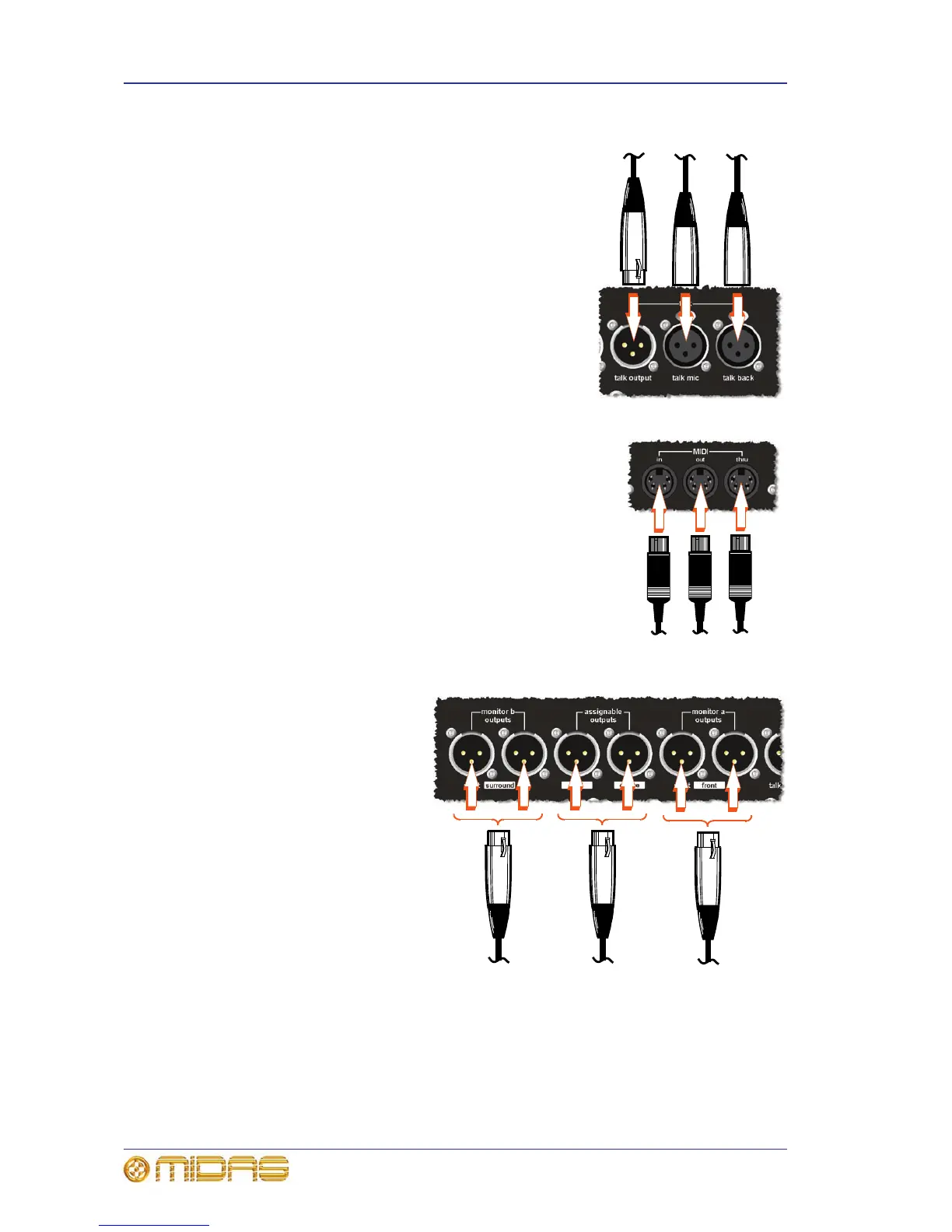

talk section
The talk section has the following connectors:
• talk output — male output XLR.
• talk mic — female input XLR. This is the equivalent to
the talk mic socket on the front panel (see “Front panel
connections” on page 265). Use one or the other of
these connections, but don’t use both.
• talk back — female input XLR.
MIDI section
The MIDI section has in, out and thru sockets that each
accepts a 5-pin DIN connector.
Monitor and assignable outputs/surround section
There are two monitor outputs
sections (a and b) for the
monitor A and B sections, and
an assignable outputs section.
Each section has right and left
connectors.
When the PRO Series is
configured for surround panning
operation the three output
sections function as
speaker/subwoofer connectors.
The connections for the three
types of surround operation
(quad, LCRS and 5.1) are
shown in Figure 31, Figure 32
and Figure 33. For more
information on surround
panning, see “Surround
panning” on page 120.
