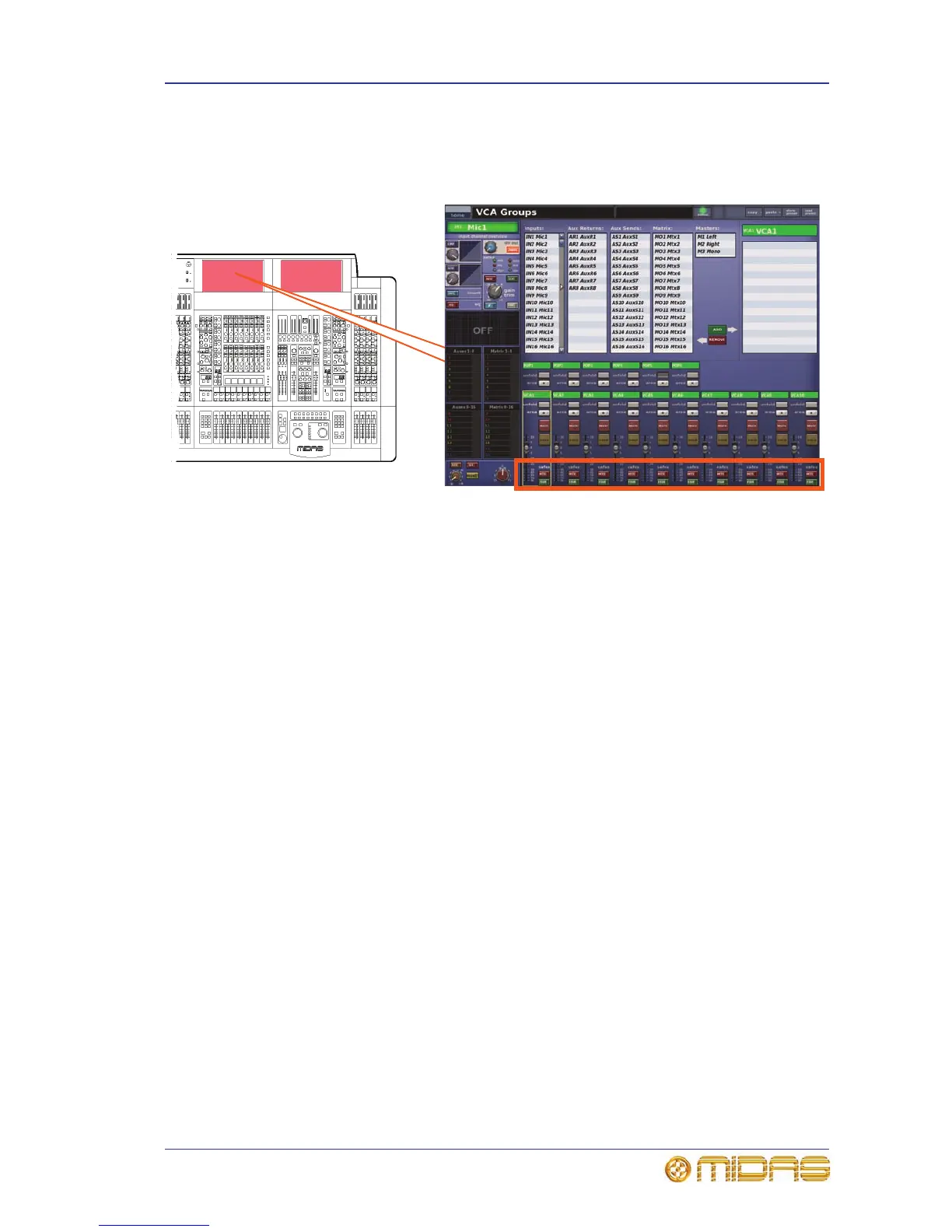

The group safes — mute (MTE) and fader (FDR) — are selected via the VCA Groups

screen of the GUI (shown below).

EQ safe

Not applicable.

Dynamic safe

Not applicable.

Mic safe

Not applicable.
