About the Patching screen 85
PRO Series Live Audio Systems
Owner’s Manual
The following table lists the patching connectors on the Mon. tabs in the From and To
sections, and shows their equivalents on the Monitors screen.
Table 5: Monitor inputs and outputs on the Monitors screen
Navigating to the Patching screen
You can open the Patching screen from various other screens in the GUI menu, usually
by clicking a source (source) or dest. (destination) button. When you click one of
these buttons, not only will the Patching screen open, but the appropriate tab in the
From/To section will be open as well. For a full list of patching routing on the PRO
Series, see Table 25 “Navigating to the Patching screen” on page 418.
About the devices on the stage and FOH I/O tabs
The following device types will, if configured in the AES50 Device Configuration
window (see Figure 14 “Typical AES50 Device Configuration window” on page 92),
appear on the I/O tabs of the From and To sections of the Patching screen.
Mon. tab Input/output Equivalent on the Monitors
screen
Monitor Out A L Output monitor A output L
Monitor Out A R Output monitor A output R
Monitor Out B L Output monitor B output L
Monitor Out B R Output monitor B output R
Monitor Out C L Output monitor centre output
Monitor Out C R Output monitor LFE output
External Talk Destination Output external talk output
Talk Input Source Input talk input
Talkback Input Source Input talkback input
Ext Input Source L Input external input L
Ext Input Source R Input external input R
PFL Direct Input Source Input pfl direct input
AFL Direct Input Source L Input afl direct input left
AFL Direct Input Source R Input afl direct input right

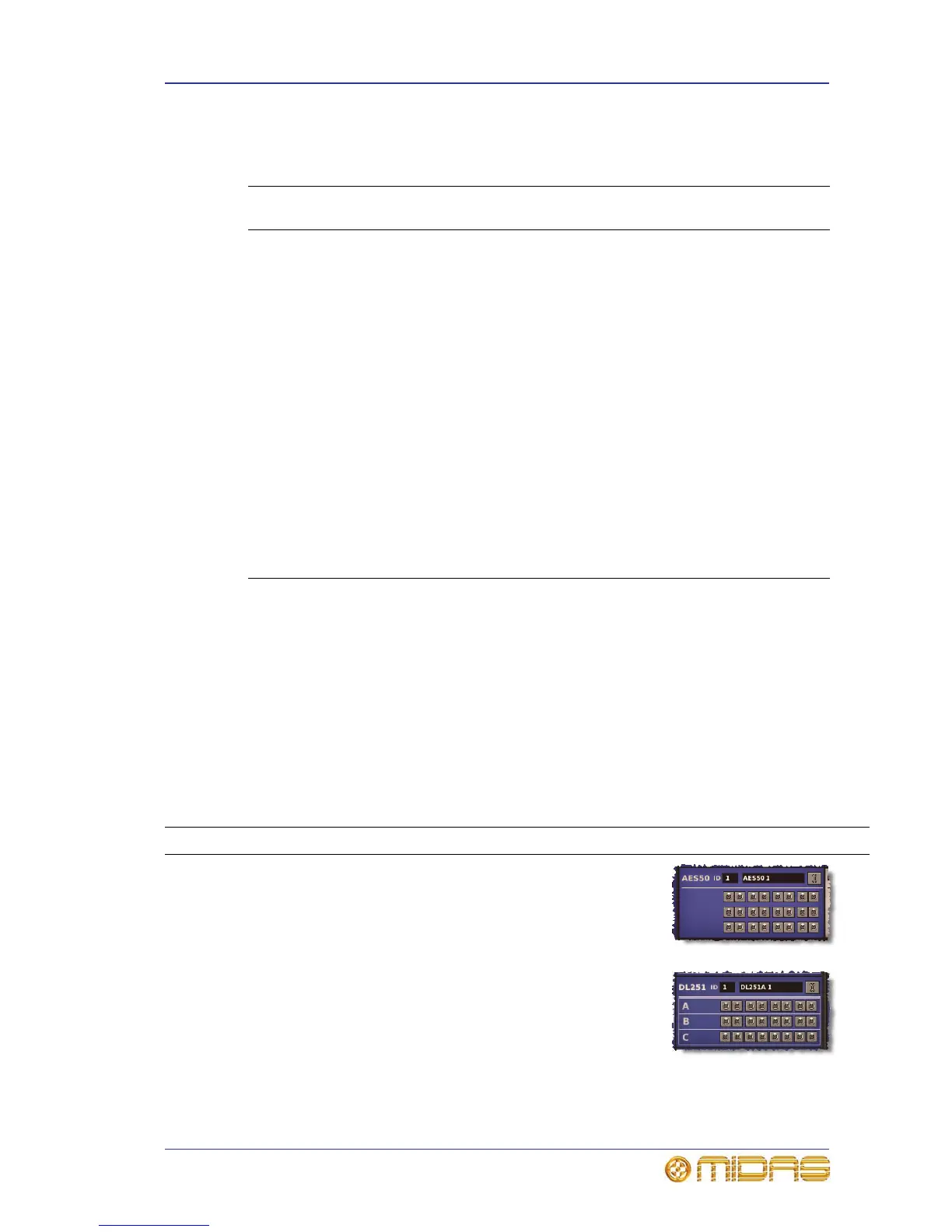

Item Device type Description Example
AES50 Generic
AES50
This is an audio only device that is used
to represent the inputs and outputs of
any third party AES50 device.
DL251 Audio
System I/O
DL251A This device represents module card slots
A, B and C of the DL251 unit.
