86 Chapter 8: Patching
PRO Series Live Audio Systems
Owner’s Manual

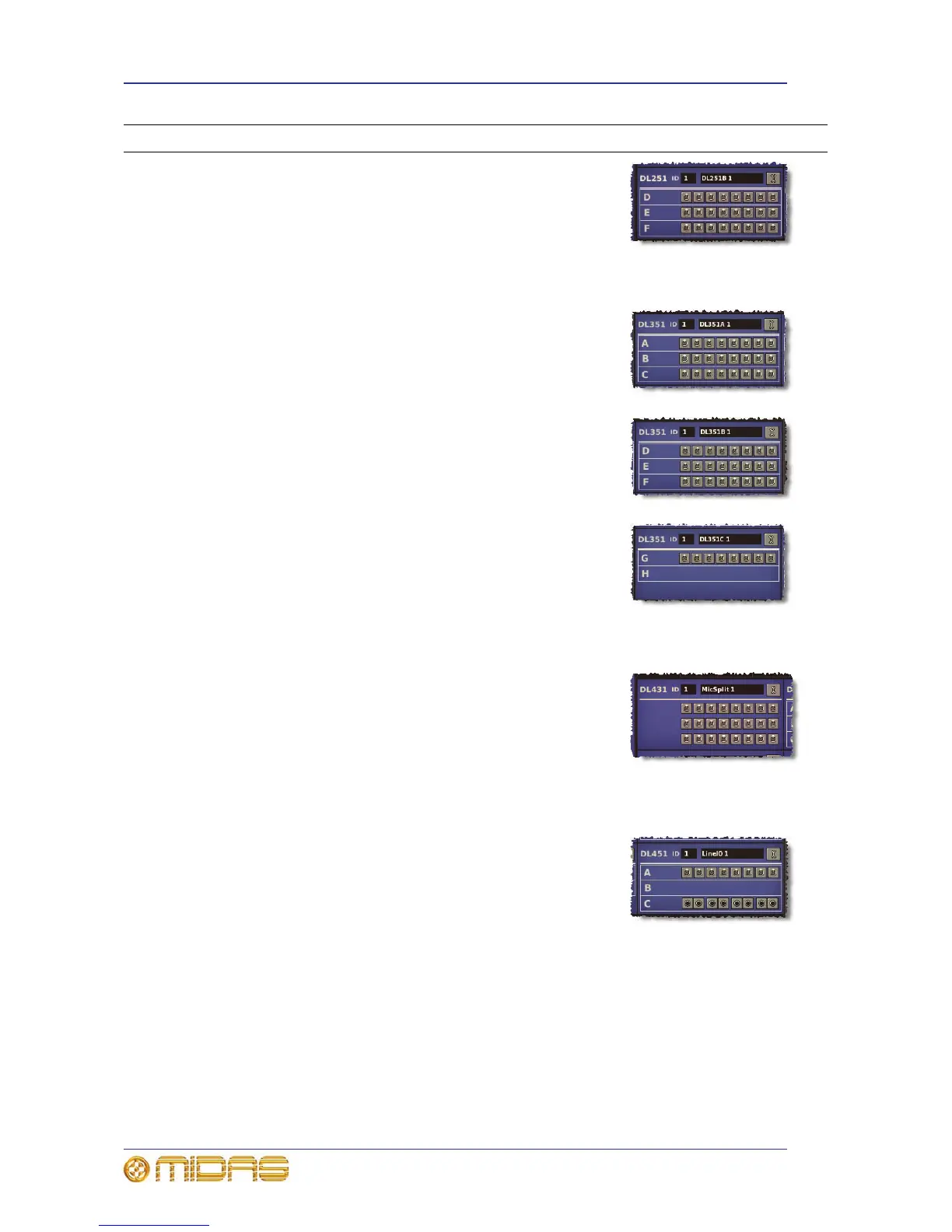

DL251B This device represents module card slots
D, E and F of the DL251 unit.
DL251C This device represents the redundant
AES50 port of the DL251 unit.
N/A
DL351
Modular I/O
DL351A This device represents module card slots
A, B and C of the DL351 unit.
DL351B This device represents module card slots
D, E and F of the DL351 unit.
DL351C This device represents module card slots
G and H of the DL351 unit.
Dl351D This device represents the redundant
AES50 port of the DL351 unit.
N/A
DL431 Mic
Splitter
Mic Splitter For more information on this unit, refer
to its operator manual (part number
DOC02-DL431).
MS Cable
Red
This device type is used to specify which
port is to be used as a dual redundant
port to a DL431 Mic Splitter.
N/A
DL451
Modular I/O
Line IO For more information on this unit, refer
to its operator manual (part number
DOC02-DL451).
Line Io
Cable Red
This device type is used to specify which
port is to be used as a dual redundant
port to a DL451 Modular I/O.
N/A
Item Device type Description Example
