Gate
Not applicable.
EQ (GEQ)

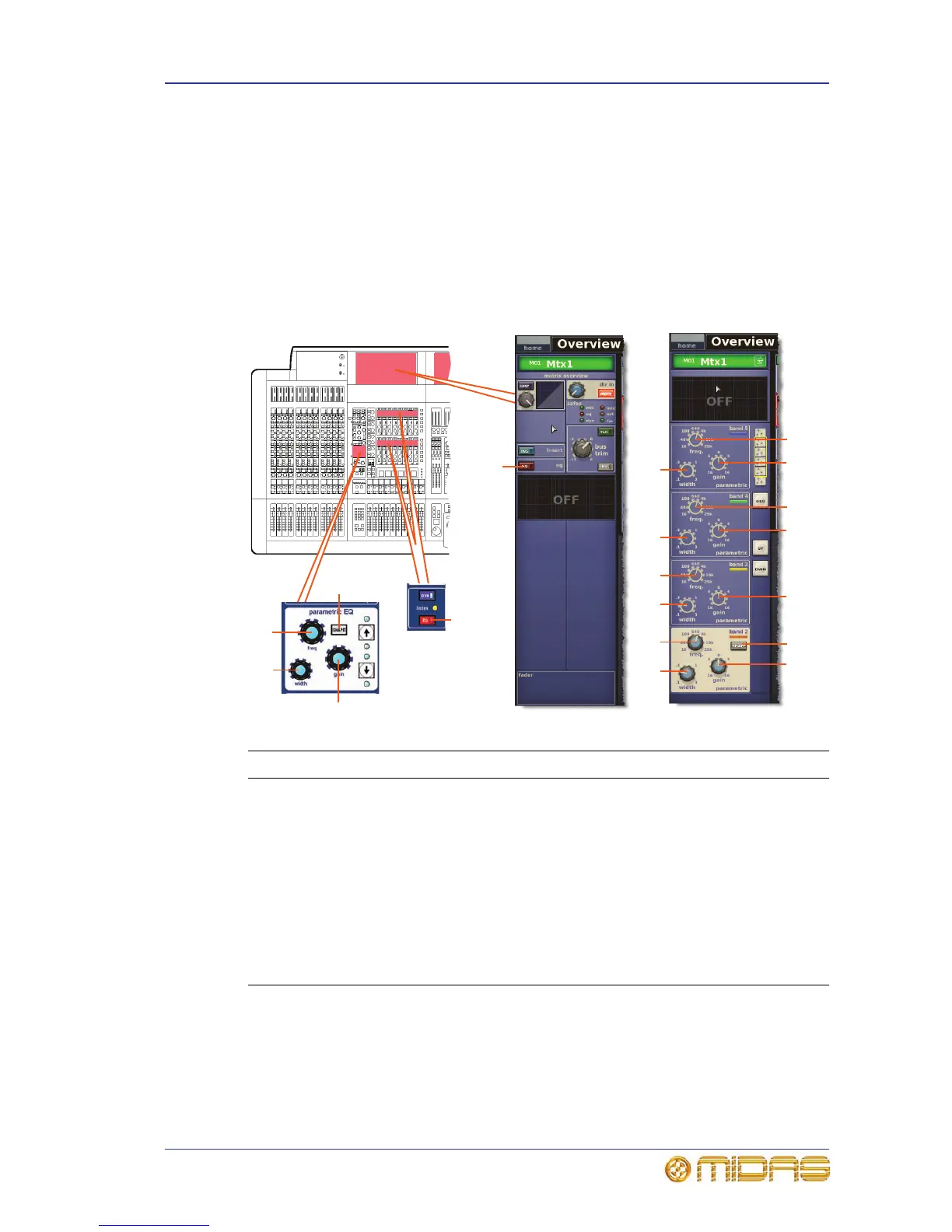

This section shows the parameters of the EQ section (including the GEQ) affected by
copy and paste.
* Not shown in diagram.
Note: Although bands 1 and 6 are not shown above, the items in the table also apply.
Both bands have items 2, 3 and 4. Band 1 also has item 7, and band 6 also has item 5.
Item Control Parameter
1 EQ switch EQ on/off
2 gain control knob EQ gain level
3 width control knob EQ width
4 freq control knob EQ frequency
5* SHAPE switch Band 6 shelving mode: bell, soft, low pass 6dB or
low pass 12dB
6 SHAPE switch Band 2 shelving mode: bell or high pass 24dB
7* SHAPE switch Band 1 shelving mode: bell, warm, high pass 6dB
or high pass 12dB
2
4
1
EQ processing
area in GUI
channel strip
3
2
5/6/7
4
3
2
4
3
2
3
2
3
4
4
5
1
matrix overview
in GUI channel
strip

Midas PRO SERIES Specifications

General

Series	PRO SERIES
Sample Rate	96 kHz
Word Clock	Yes
Type	Digital Mixing Console
Mix Buses	Up to 24
Connectivity	AES50
Control Surface	Motorized Faders
EQ Bands	4-band Parametric EQ per channel
Effects	Multiple internal effects engines
Frequency Response	20 Hz - 20 kHz
Processing	40-bit floating point
