Mix matrix
Ultimately, the mix matrix defines the capability of each PRO Series Control Centre.
Probably the best way to imagine the mix matrix is to think of an analogue console
layout, where inputs run vertically and buses run horizontally. A mix matrix is usually
defined as the number of buses and the quantity of simultaneously-mixable inputs
there are per bus. The following diagrams illustrate the capability within each PRO
Series Control Centre.

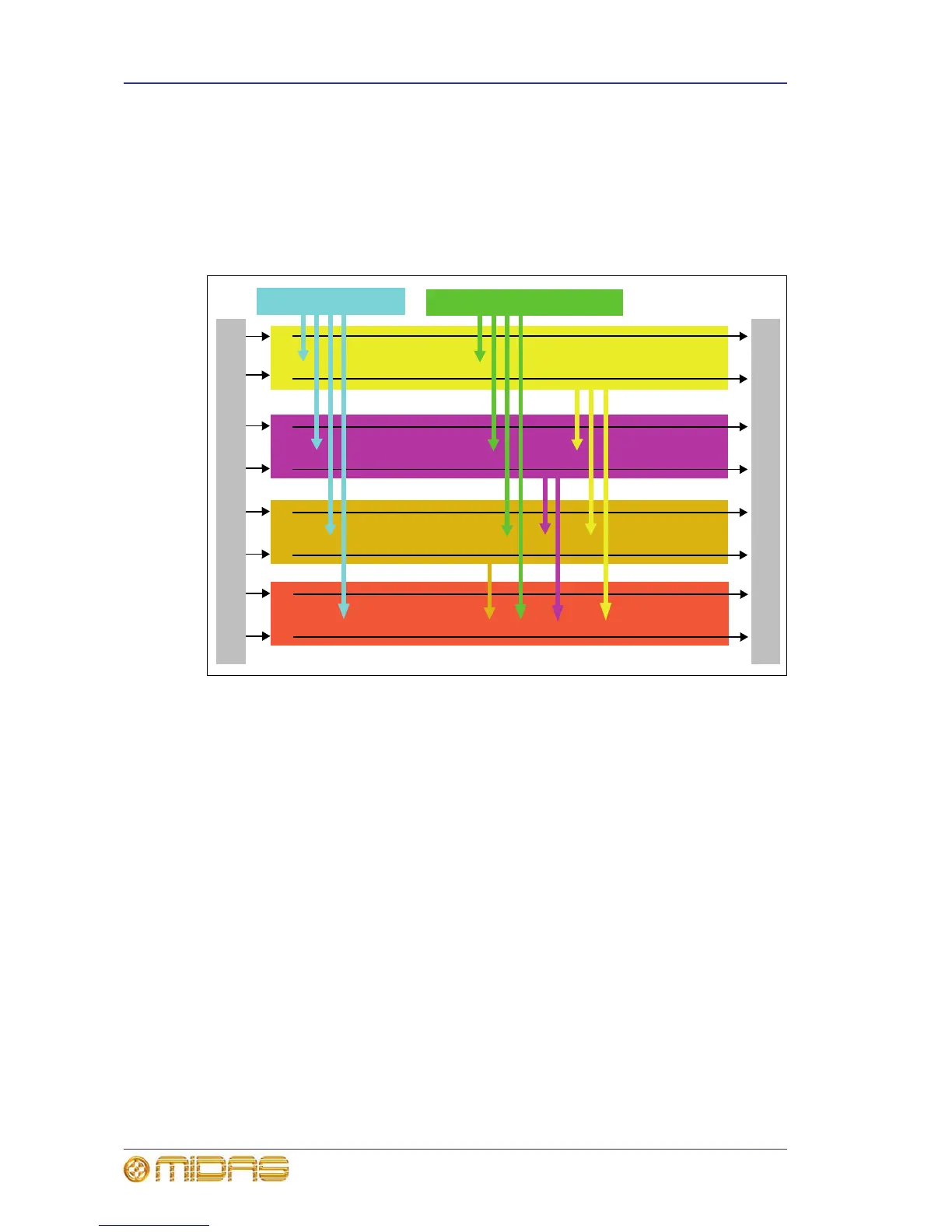

Figure 1: PRO3 mix matrix
16 aux
buses
56 in x 16 out
mix matrix
{}
72 in x 3 out
mix matrix
8 matrix
buses
75 in x 8 out
mix matrix
3 master (stereo
and mono) buses
{}
{}
48 mic/line inputs 8 mic/line return inputs
6 solo
buses
83 in x 6 out
mix matrix
{}
Bus outputs
Bus inputs

Midas PRO SERIES Specifications

General

Series	PRO SERIES
Sample Rate	96 kHz
Word Clock	Yes
Type	Digital Mixing Console
Mix Buses	Up to 24
Connectivity	AES50
Control Surface	Motorized Faders
EQ Bands	4-band Parametric EQ per channel
Effects	Multiple internal effects engines
Frequency Response	20 Hz - 20 kHz
Processing	40-bit floating point
