198 Chapter 20: Scenes And Shows (Automation)
PRO Series Live Audio Systems
Owner’s Manual
Automation controls
Although automation is supported on the master bay control surface by the
automation section, it also requires large amounts of screen support. The GUI
provides this in the form of an Automation screen that gives full scene and show file
support, and also scope and event features. Additionally, the GUI has a Files screen
for show file management and transfer.
The following diagram explains the automation section of the control surface and shows
the location of their equivalents on the GUI’s Automation screen.

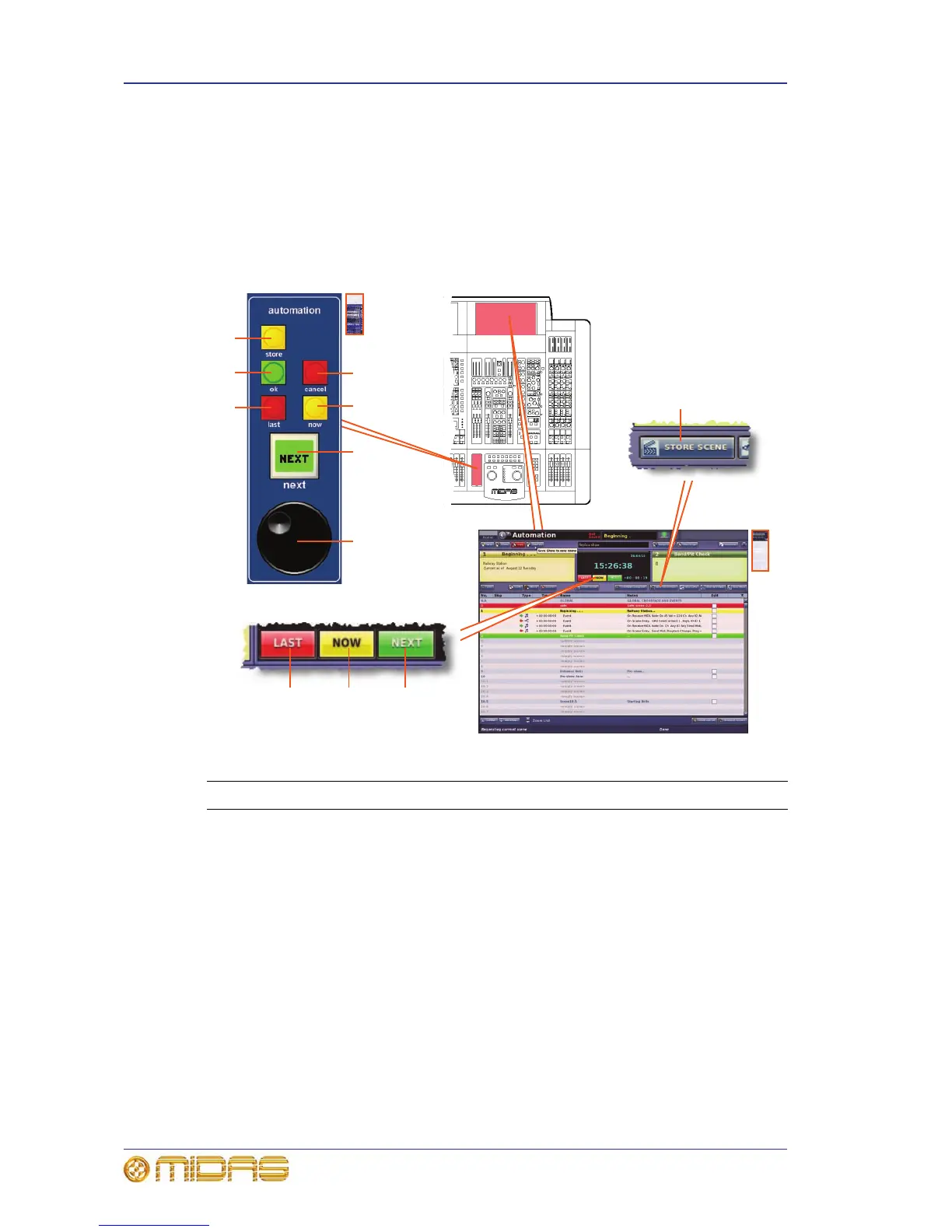

Automation controls on the control surface and GUI
Item Control Function
1 Red cancel button Cancels a store operation and closes the Store
window (illuminates to prompt when this button is
active).
2 Yellow now/
[NOW] button
Recalls the currently highlighted scene in the cue list,
clearing any unsaved adjustments.
3 Green next/
[NEXT] LCD
button
Changes scene selection to the next scene/point
scene (highlighted in green) in the cue list. For
details of the button’s display information, see “next
LCD button” on page 199. (The GUI’s NEXT button
does not display any information.)
4 Jog wheel Quickly dials the scene numbers beyond the
capability of the ‘last’ and ‘next’ buttons by scrolling
the ‘now’ scene through the cue list one scene/point
scene at a time.
5 Red last/[LAST]
button
Changes scene selection to the previous scene
(highlighted in red) in the cue list.
