96 Chapter 8: Patching
PRO Series Live Audio Systems
Owner’s Manual
>> To remove all the patches of a single source
1 Make sure that no patch connectors are selected. If necessary, click NONE.
2 In the From section, click the source patch connector from which you want to
remove all of the patches. (This will select the source patch connector and also
all of its destinations.)
3 Click CLEAR SEL.
>> To remove the patches from all selected patch connectors
Click CLEAR SEL.
>> To clear a block of patch connectors
1 Click NONE.
2 In the From section, select the patch connectors you want to unpatch.
3 Click CLEAR SEL.
4 Click NONE.
Single patching (SINGLE)
The SINGLE function button lets you patch a single source to a single destination or
multiple destinations.
>> To patch a single source to a single destination
The following example shows you how to patch an output from a mic splitter to an input
channel.
1 Click SINGLE.

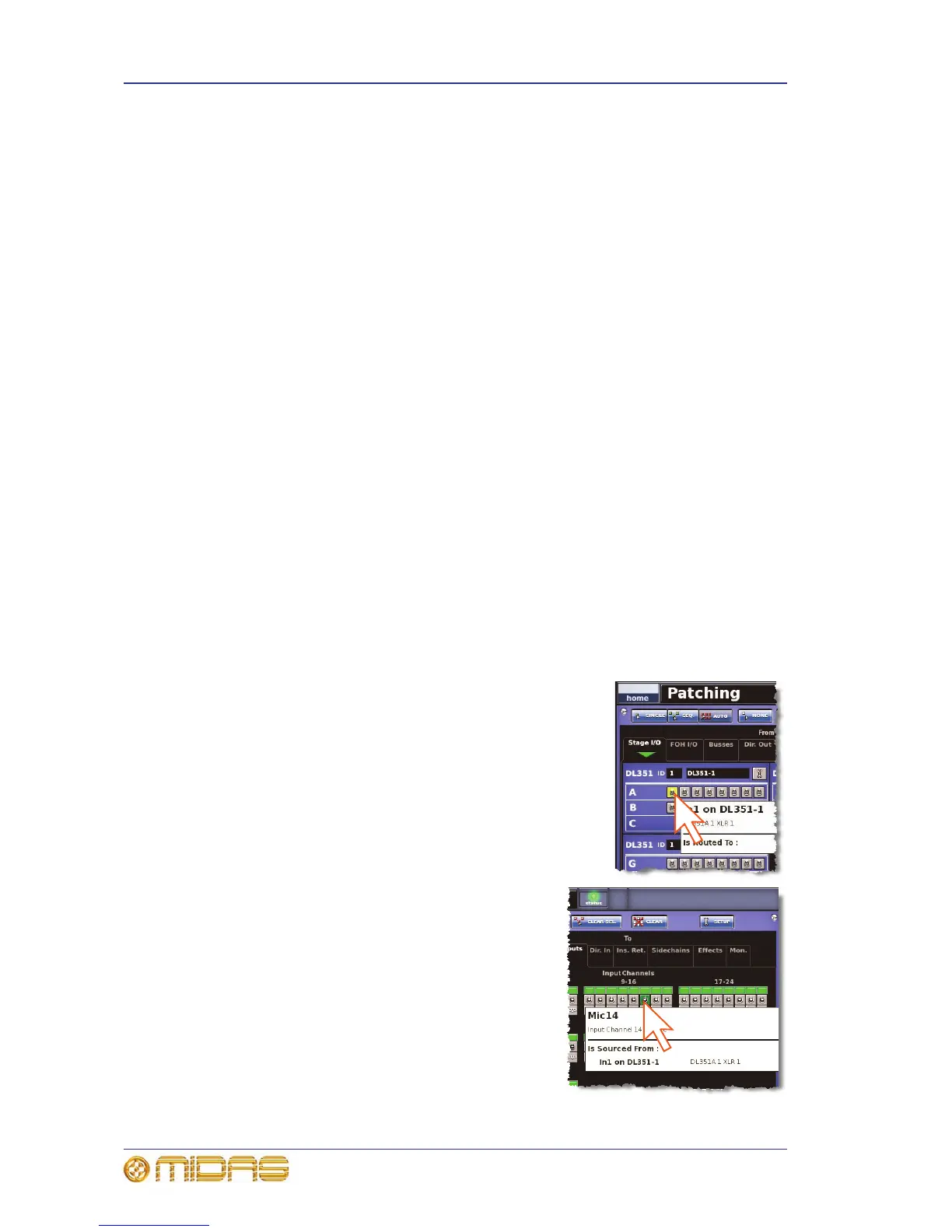

2 Select the source patch connector. For example, in
the Stage I/O tab of the From section, click the first
patch connector (XLR1) of card A of the DL351
Modular I/O. Its background will change to yellow
and a green triangle will appear under the tab title
(as shown right).
3 Select the destination patch connector. For
example, in the Inputs tab of the To section,
click the patch connector for input channel 14
(Mic14). It will now be patched to the source.
If the new patch is carrying a signal, this
audio may be heard, depending on the
settings of the control centre.
Note: You can also carry out single patching
operations using the CLEAR SEL. and AUTO
functions.
