>> To select a single patch connector
Click the patch connector. The effects of clicking a patch connector are shown in the
following table.

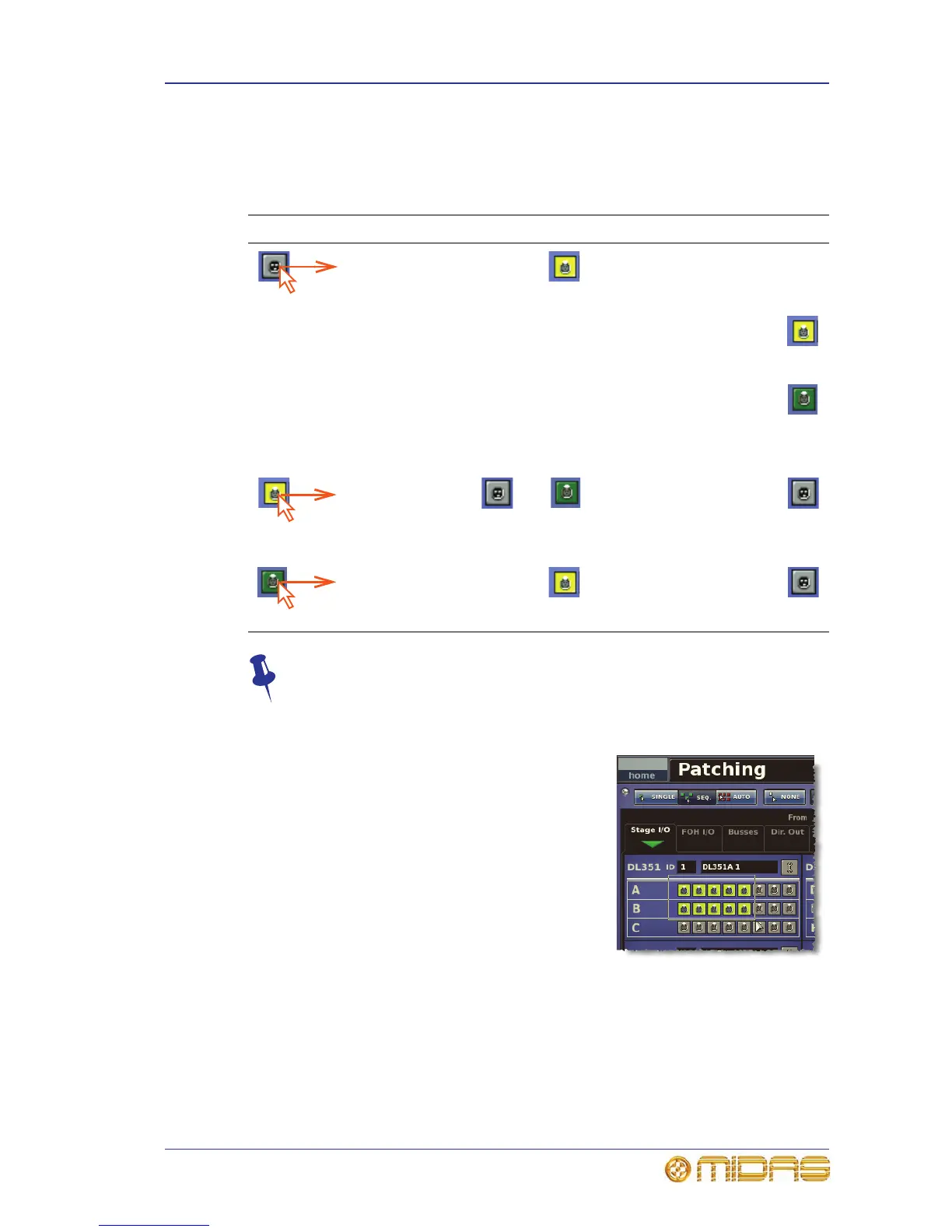

Table 6: Effects of clicking a patch connector
To quickly check the destinations of a source patch connector, click it. This will
select it and all of its destinations. A green triangle will appear under the name
of any tab in the To section that contains a destination(s).
>> To select a block of patch connectors in the From section
Use a drag operation (see “Drag” on page 53) to
create a bounding box around the block of connectors
you want to select (shown right).
This procedure can only be done using sequence and
multi-patching operations (initiated by the SEQ. and
AUTO buttons, respectively).
>> To deselect all selected patch connectors
Click NONE.
>> To remove a single patch
In the To section, click the patch connector from which you want to remove the patch.
Clicking Does this in the From section Does this in the To section
Selects patch the
connector.
Will do one of the following
(provided a source patch
connector(s) has been selected
in the From section):
• Selects the patch
connector during a
single patching
operation.
• Patches the patch
connector during either
a sequence or an
automatic patching operation.
Otherwise, this has no effect.
Deselects the
patch connector,
which then
reverts to its previous state
(patched or unpatched).
Removes the patch.
Selects the patch
connector and all the ones
it is patched to in the To
section.
Removes the patch.
