How to patch 97
PRO Series Live Audio Systems
Owner’s Manual
>> To patch a single source to multiple destinations
1 Patch the desired source patch connector to one of its destinations, as detailed in
“To patch a single source to a single destination” on page 96.
2 In the To section, select the other destinations.
Sequence patching (SEQ.)
If you need to do a number of patches, and each has only a single destination, you can
use the sequence function. All of the source patch connectors are selected in the From
section before being patched, one by one, in the To section. This saves you having to
go back to the From section at the start of each patch.
To assist you in sequence patching, you can change the tooltip to the list type (see “List
tooltip” on page 88).
Automatic patching (AUTO)
You can patch a block of source patch connectors, just by selecting a single destination.
This is called “automatic patching”. When using automatic patching, note the following:
• Sources are selected in blocks (see “To select a block of patch connectors in the
From section” on page 95).
• You can only select one block of sources at a time.
• Destinations are restricted to a single type.
• The selected destination forms the start of the automatically patched range of
destinations.
• Sources and destinations are automatically patched in ascending order, the lowest
numbered source and the selected destination forming the first patch.
• Sources will only be patched up to the highest numbered destination of the current
destination type. If there are any sources left over, automatic patching pauses. You
can then patch these by selecting another destination.
>> To automatically patch a block of source channels
1 Click AUTO.
2 In the From section, select the source patch connectors (see “To select a block of
patch connectors in the From section” on page 95).

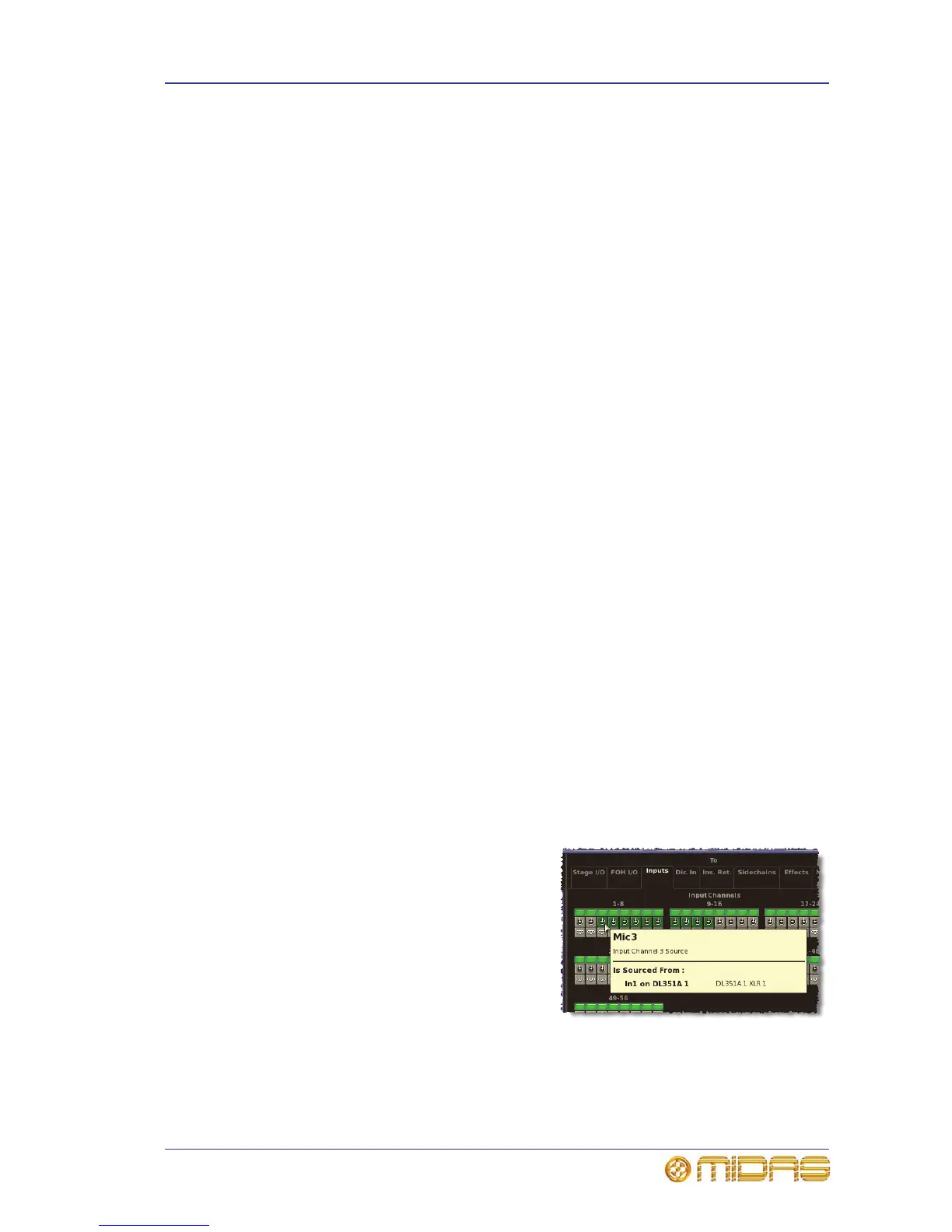

3 In the To section, choose the destination patch connector that will form the start
of the automatic patching range. For example, input channel 3 (Mic3).
4 Click the destination patch connector.
The sources will be patch in numerical
sequence and in ascending order from
here onwards.
