Audio, networking and synchronisation section
The centre connector panel houses the following.

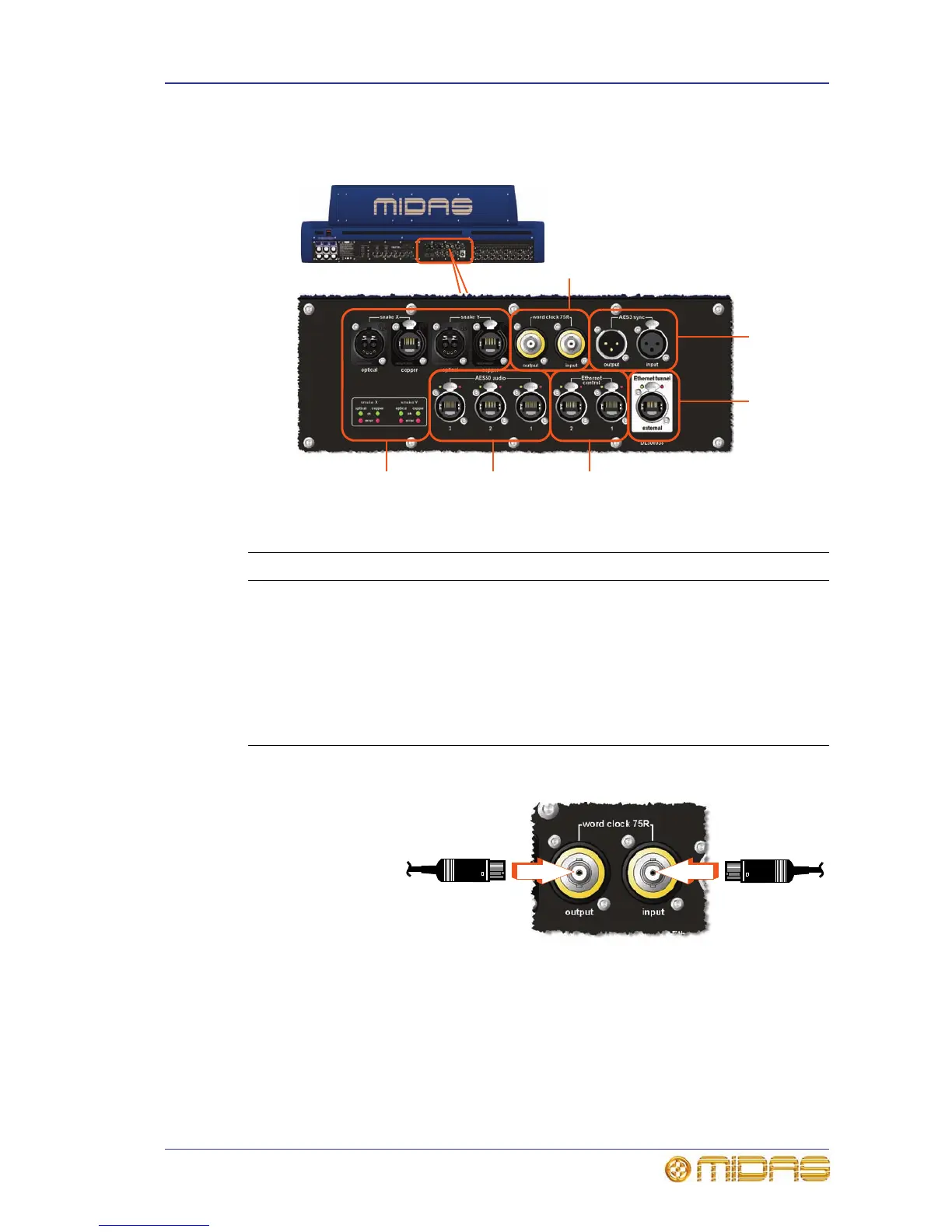

Typical audio, networking and synchronisation connections on the rear panel of a PRO
Series Control Centre
Word clock
The word clock 75R
section comprises
input and output
BNC cable sockets for
synchronisation with
external devices that
can transmit/receive
a 96kHz word clock
signal.
Item Description
1 word clock 75R section (see “Word clock” on page 273).
2 AES3 sync section (see “AES3 sync” on page 274).
3 Ethernet tunnel section (see “Ethernet tunnel section” on page 274).
4 Ethernet control section (see “Ethernet control section” on page 274).
5 AES50 audio section (see “AES50 audio” on page 274).
6 snake X and snake Y sections (see “snake X and snake Y sections” on
page 275).
2
3
456
1
BNC type
connector
BNC type
connector

Midas PRO SERIES Specifications

General

Series	PRO SERIES
Sample Rate	96 kHz
Word Clock	Yes
Type	Digital Mixing Console
Mix Buses	Up to 24
Connectivity	AES50
Control Surface	Motorized Faders
EQ Bands	4-band Parametric EQ per channel
Effects	Multiple internal effects engines
Frequency Response	20 Hz - 20 kHz
Processing	40-bit floating point
