Matrix (matrix channels) 605

PRO Series Live Audio Systems

Owner’s Manual

Fader Sections

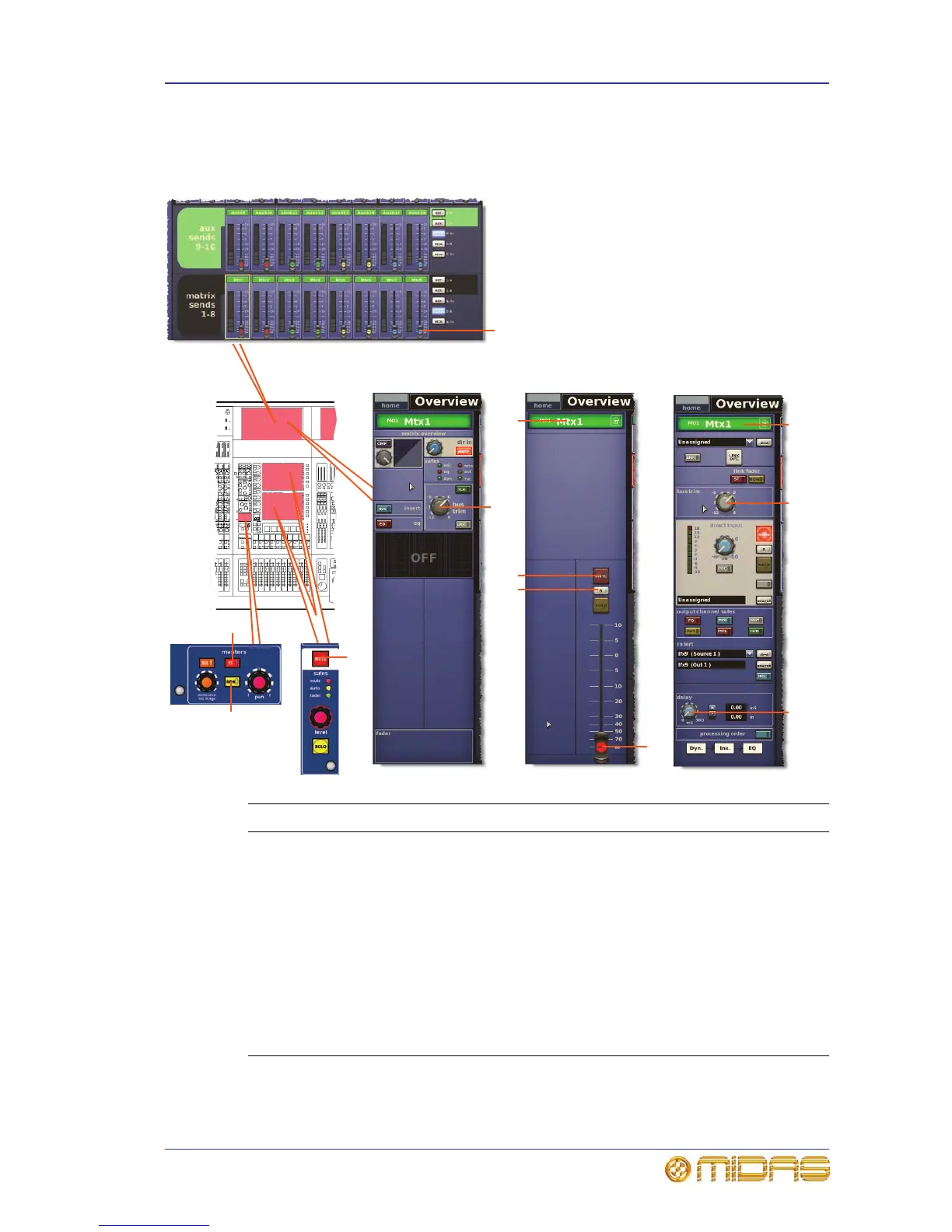

The following diagram shows the parameters of the master routing processing area

copied through scenes.

Item Control Parameter

1 MUTE switch Mute on/off

2 B switch Solo B in/out

3 Fader Level

4 Field Channel name

5 Field Channel colour

6 ST switch Link to stereo master fader

7 MON switch Link to mono master fader

8 bus trim control knob Bus trim level

9 delay control knob Delay time

input channel

overview in GUI

channel strip

Masters processing

area in GUI

channel strip

Insert and

configuration

processing area in

GUI channel strip
