152 Chapter 14: Monitors And Communications
PRO Series Live Audio Systems
Owner’s Manual
Talk osc/routing
The talk / osc routing, or ‘internal talk groups’ section, sends signal generator and
talk mic signals to buses within the control centre. It contains eight talk group switches
used for selecting the destination of the talk and OSC internal signals. Four of the talk
group switches are user-configurable. The GUI has an additional four configuration
switches for programming.
For information on programming, see “Programming the groups” on page 183.

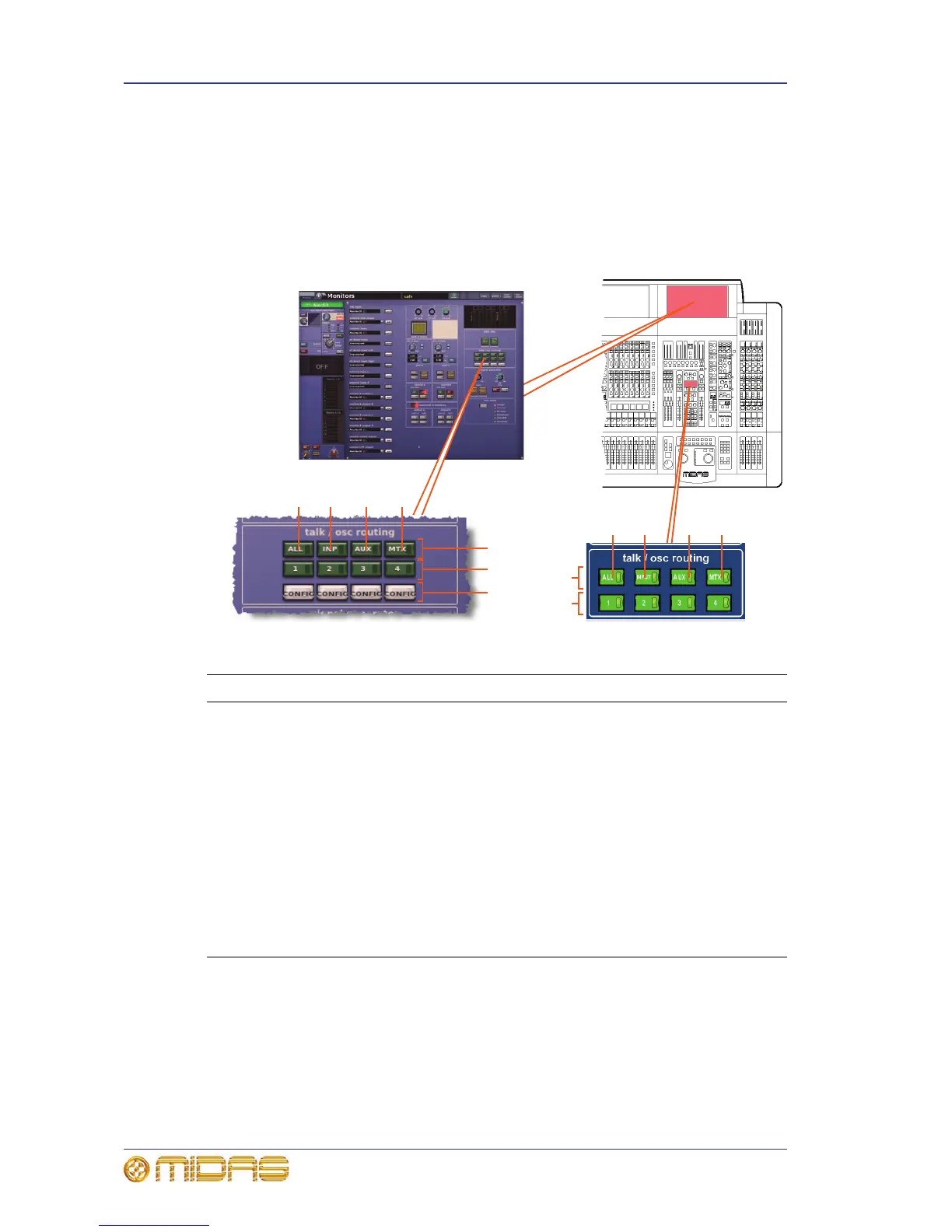

Talk osc/routing controls on the control surface and GUI
Item Element Description
1 ALL switch Routes the talk/OSC internal signal to all outputs.
2 INPUT/[INP]
switch
This input switch routes the talk/OSC internal signal
to the input section.
3 AUX switch Routes the talk/OSC internal signal to all auxes.
4 MTX switch This matrix talk switch routes the oscillator or talk
signal to the master outputs.
5 Switches These are fixed bus talk group switches.
6 Switches These are user-assignable talk group switches.
7 CONFIG switches Each of these GUI only configuration switches opens
the Talk Groups screen and selects its associated
group, ready for programming (see “About the
control group screens” on page 182).
