188 Chapter 19: Assignable Controls (I Zone)
PRO Series Live Audio Systems
Owner’s Manual
About the Assignable Controls window
The Assignable Controls window lets you choose which controls you can operate from
the I zone. It shows the current assignment and status of each assigned control.
The following are some useful points to know about controlling a rotary control and the
Assignable Controls window:
• You can assign any of the internal effects’ rotaries to the Assignable Controls
window.
• You can’t use the Assignable Controls window with the GEQs.
• You can assign a control to the I zone via the control surface or the GUI.
>> To open the Assignable Controls window
1 Make sure that the master bay GUI screen is not displaying an internal device
(effect or GEQ). If necessary, select another screen via the GUI menu or by
pressing a screen access button in the primary navigation zone.

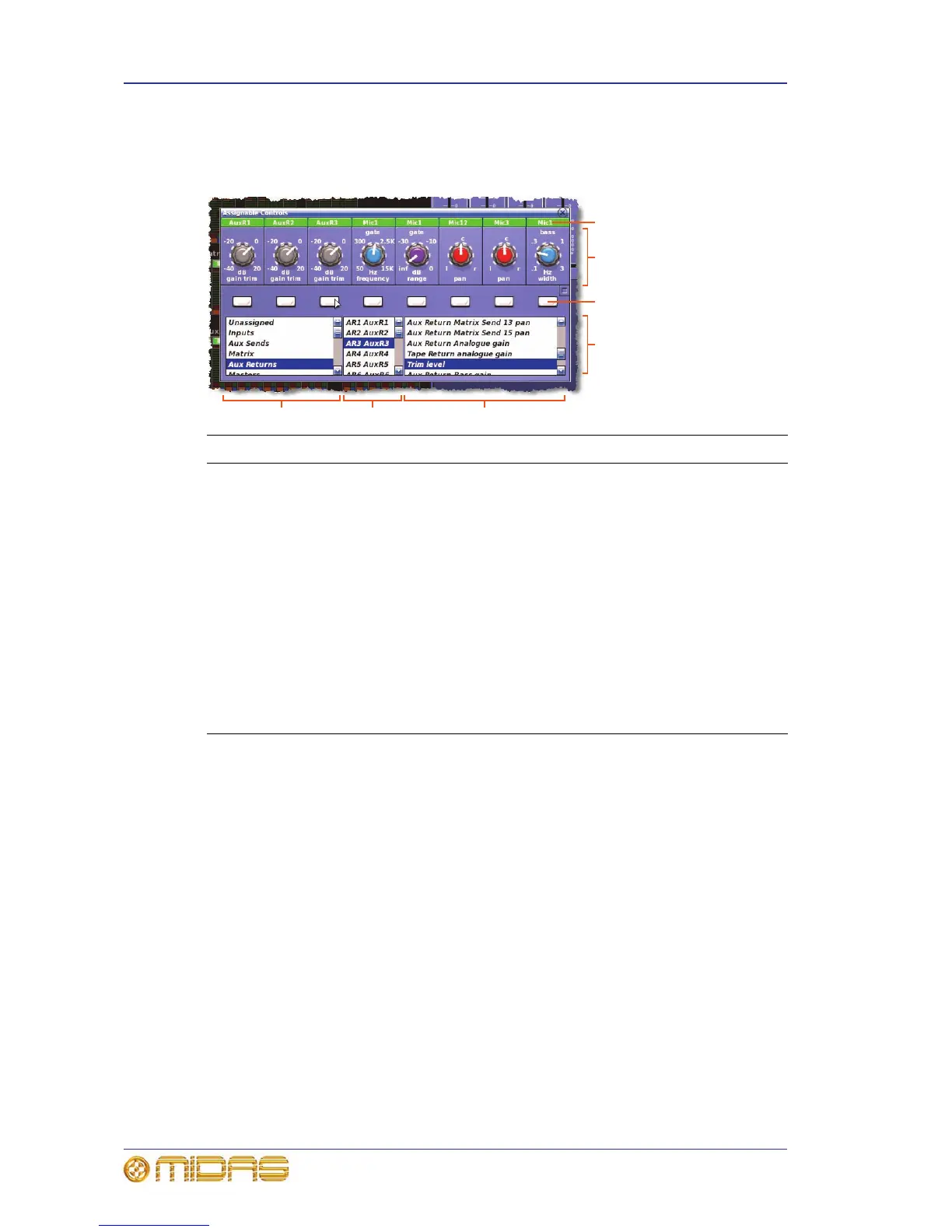

Item Element Function
1 Name field Channel name, with background colour to match the
default/user-defined channel colour.
2 Control knobs User-assigned controls.
3 Button Assign/unassign button.
4 Control selection
lists
These offer you all the available options from which to
choose your rotary control assignment.
5 Option list Available control options for the selected
channel/effect.
6 Option list Available channels/effects for the selected channel
type/effect.
7 Option list Available channel types/effect. The options are:
Unassigned; Inputs; Aux Sends; Matrix; Aux
Returns; Masters; and Effects.
