Configuring the number of GEQs (and effects) 161
PRO Series Live Audio Systems
Owner’s Manual
Configuring the number of GEQs (and effects)
GEQ (and effects) configuration is a GUI-only operation. We recommend that you
configure the number of GEQs and effects before you start using the PRO Series.
>> To configure the PRO Series Control Centre with the number of GEQs and
effects
1 At the GUI, choose homePreferencesGeneral.

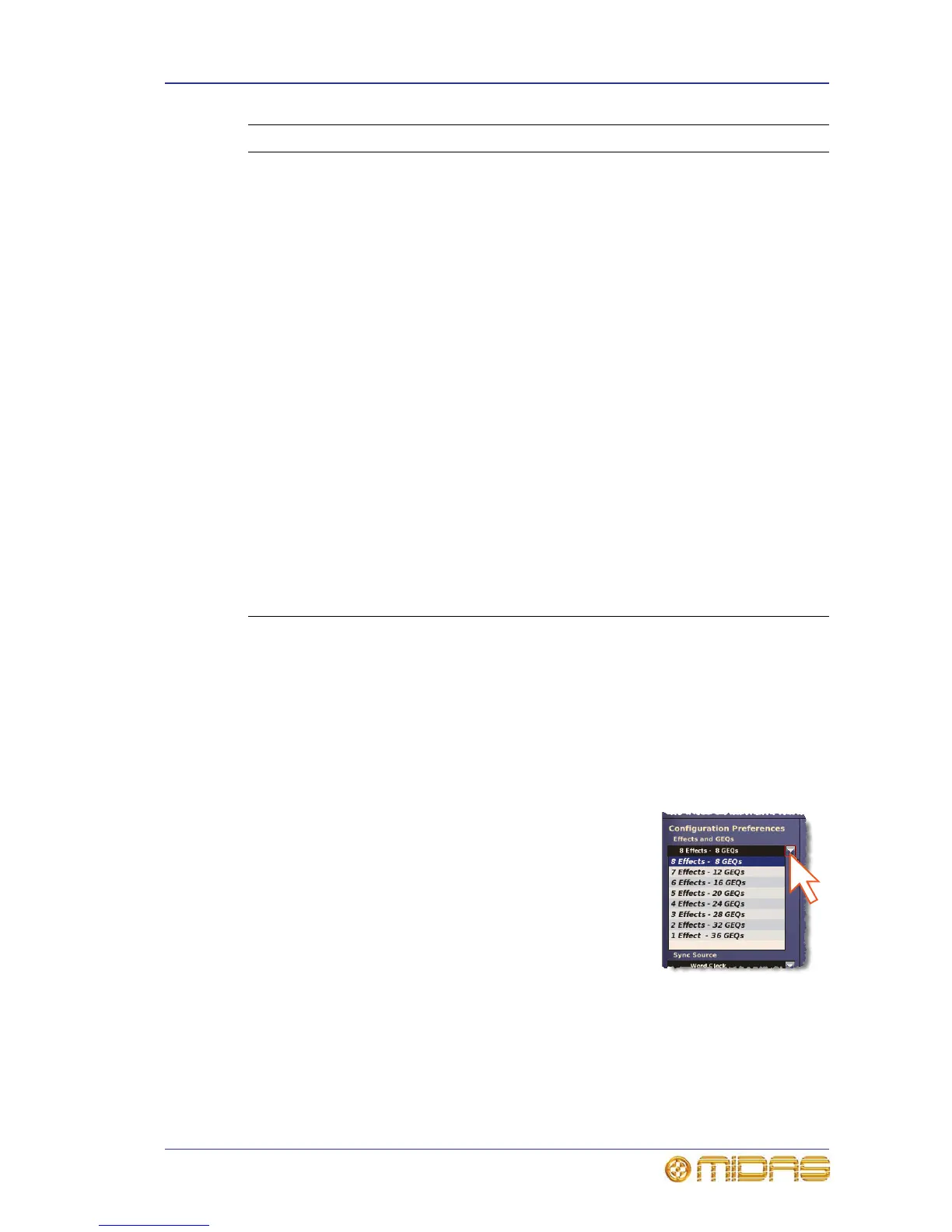

2 In the Effects and GEQs section of the
Configuration Preferences option, open the
drop-down list (as shown right).
3 Select the option you want by clicking it. For example,
click the 3 Effects - 28 GEQs option (PRO6 or PRO9
only) to have three internal effects and 28 GEQs.
5 EQ button Selects the EQ. The adjacent green IN LED shows
the EQ is on (illuminated) or is being bypassed
(extinguished).
6 10-segment meter Shows the incoming signal level and is pre-EQ (but
post-gain control). Clipping is post-EQ (and post-
gain control), such that internal clipping due to
excessive EQ, that is, if a high input level is further
boosted by the use of EQ, will also be shown. The
LED functions are: two red LEDs illuminate when
signal has exceeded +20dBu and is being clipped;
two yellow LEDs illuminate when signal level exceeds
0dB (range is between 0dB to +20dB); and the top
five green LEDs encompass the signal level range of
between 0dB and -40dB, while the bottom one
illuminates when the signal has exceeded -40dB.
7 Q button Selects proportional Q (PROP.) or constant Q (CON.)
modes.
8 Notch filter control
knob
Adjusts the position of the notch filter within the
range 20Hz to 20kHz.
9 IN button Switches the respective high pass/low pass/notch
filter in/out.
10 Notch filter control
knob
Adjusts the position of the notch filter within the
range 200Hz to 2kHz.
11 Fader group ID
number
See “Controlling a GEQ via the I zone” on page 194.
Item Control Function
